SERVICE WORK ON THE CHASSIS

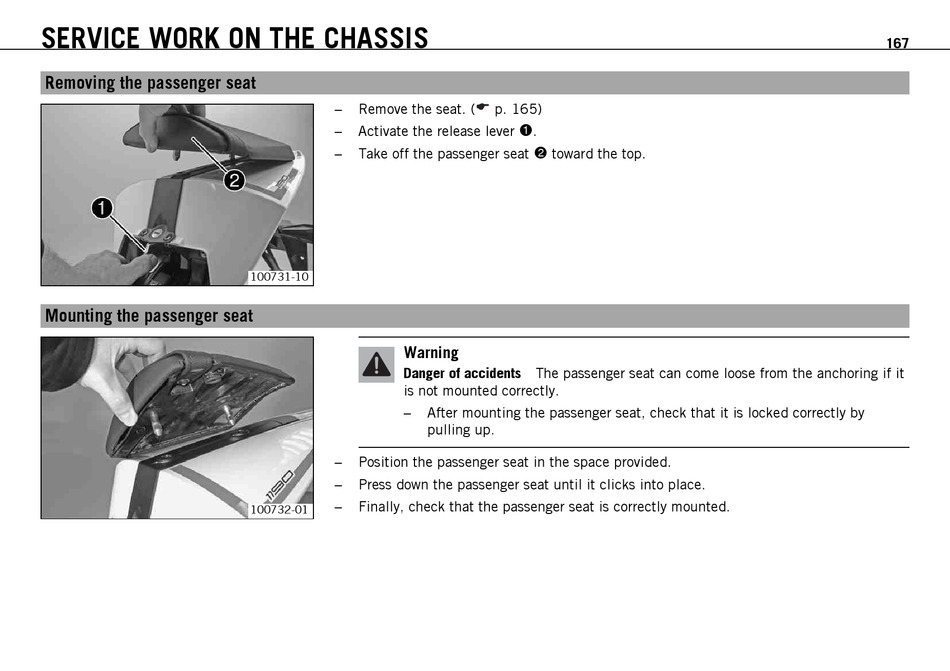

Removing the passenger seat

10.9

Mounting the passenger seat

10.10
–
Remove the seat. (
–
Activate the release lever
–
Take off the passenger seat
100731-10
Warning
Danger of accidents The passenger seat can come loose from the anchoring if it
is not mounted correctly.
–
After mounting the passenger seat, check that it is locked correctly by
pulling up.
–
Position the passenger seat in the space provided.
–
Press down the passenger seat until it clicks into place.
–
Finally, check that the passenger seat is correctly mounted.
100732-01
p. 165)
.
1
toward the top.
2
167
