SERVICE WORK ON THE CHASSIS
–

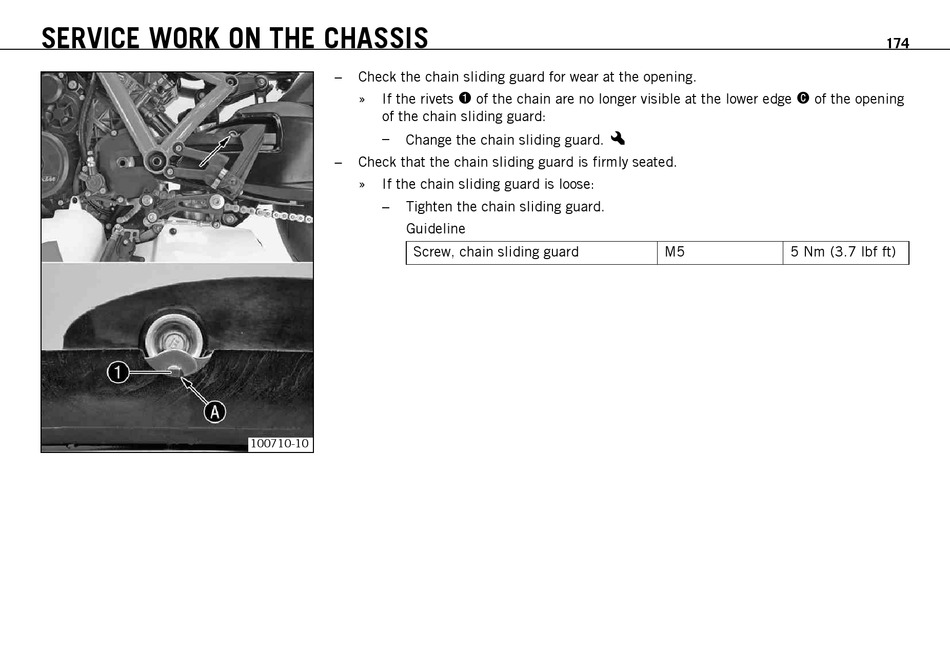

Check the chain sliding guard for wear at the opening.
» If the rivets
of the chain sliding guard:
–
Change the chain sliding guard.
–
Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
–
Tighten the chain sliding guard.
Guideline
Screw, chain sliding guard
100710-10
of the chain are no longer visible at the lower edge
1
x
of the opening
C
M5 5 Nm (3.7 lbf ft)
174
