KTM 1190 RC8 R USA Owner's Manual page 201

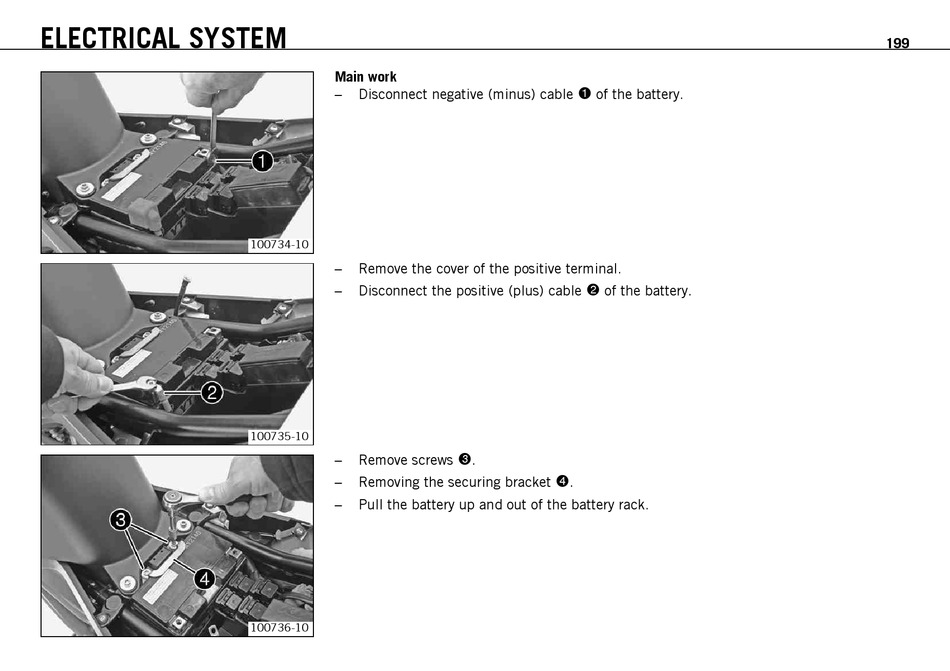

ELECTRICAL SYSTEM
Main work
–
Disconnect negative (minus) cable
100734-10
–
Remove the cover of the positive terminal.
–
Disconnect the positive (plus) cable
100735-10
–
Remove screws
–
Removing the securing bracket
–
Pull the battery up and out of the battery rack.
100736-10
of the battery.
1
of the battery.
2
.
3
.
4
199
