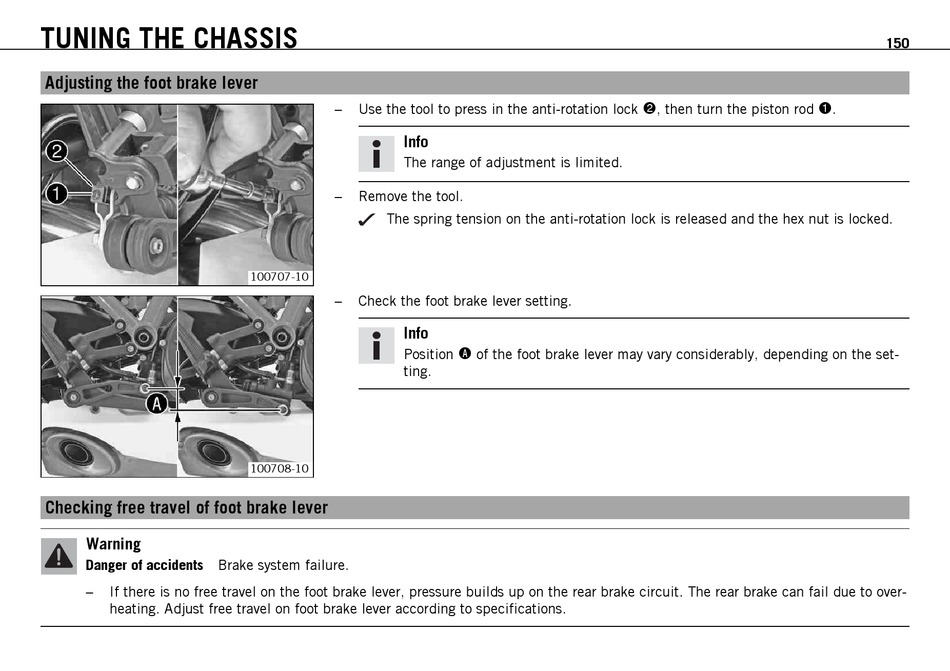

TUNING THE CHASSIS
Adjusting the foot brake lever
9.20
Checking free travel of foot brake lever
9.21
Warning
Danger of accidents Brake system failure.
–
If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to over-
heating. Adjust free travel on foot brake lever according to specifications.
–
Use the tool to press in the anti-rotation lock
Info
The range of adjustment is limited.
–
Remove the tool.
The spring tension on the anti-rotation lock is released and the hex nut is locked.
100707-10
–
Check the foot brake lever setting.
Info
Position
ting.
100708-10
of the foot brake lever may vary considerably, depending on the set-
A
, then turn the piston rod
2
1
150
.
