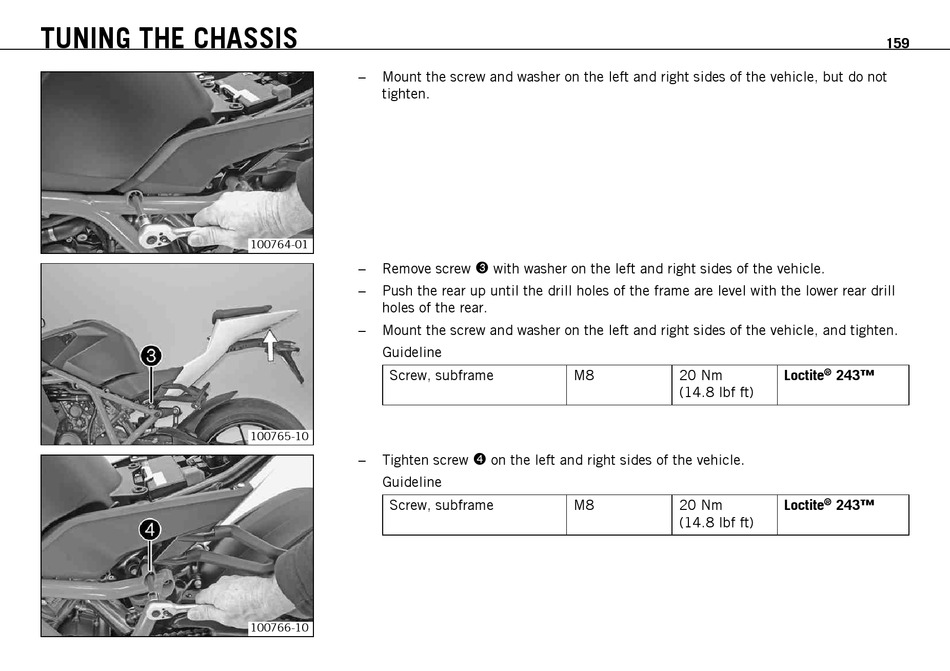

TUNING THE CHASSIS
–
Mount the screw and washer on the left and right sides of the vehicle, but do not
tighten.
100764-01
–
Remove screw
–
Push the rear up until the drill holes of the frame are level with the lower rear drill
holes of the rear.
–
Mount the screw and washer on the left and right sides of the vehicle, and tighten.
Guideline
Screw, subframe
100765-10
–
Tighten screw
Guideline
Screw, subframe
100766-10
with washer on the left and right sides of the vehicle.
3
M8
on the left and right sides of the vehicle.
4
M8
20 Nm Loctite ® 243™
(14.8 lbf ft)
20 Nm Loctite ® 243™
(14.8 lbf ft)
159
