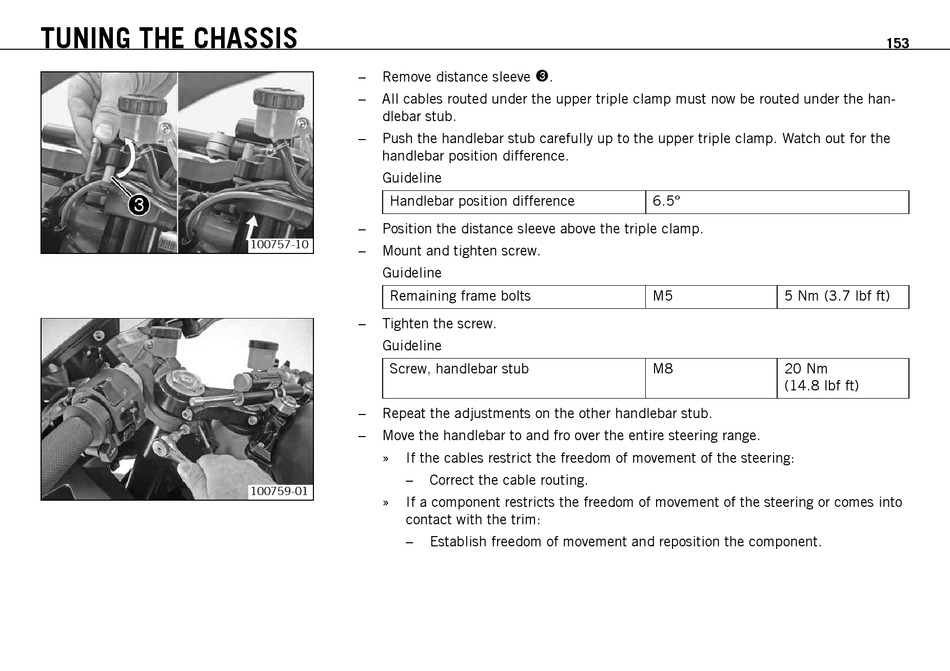

TUNING THE CHASSIS
–
Remove distance sleeve
–
All cables routed under the upper triple clamp must now be routed under the han-
dlebar stub.
–
Push the handlebar stub carefully up to the upper triple clamp. Watch out for the
handlebar position difference.
Guideline
Handlebar position difference
–
Position the distance sleeve above the triple clamp.
100757-10
–
Mount and tighten screw.
Guideline
Remaining frame bolts
–
Tighten the screw.
Guideline
Screw, handlebar stub
–
Repeat the adjustments on the other handlebar stub.
–
Move the handlebar to and fro over the entire steering range.
»
If the cables restrict the freedom of movement of the steering:
–
Correct the cable routing.
100759-01
»
If a component restricts the freedom of movement of the steering or comes into
contact with the trim:
–
Establish freedom of movement and reposition the component.
.
3
6.5°
M5
M8
153
5 Nm (3.7 lbf ft)
20 Nm
(14.8 lbf ft)
