Summary of Contents for Roland M-5000

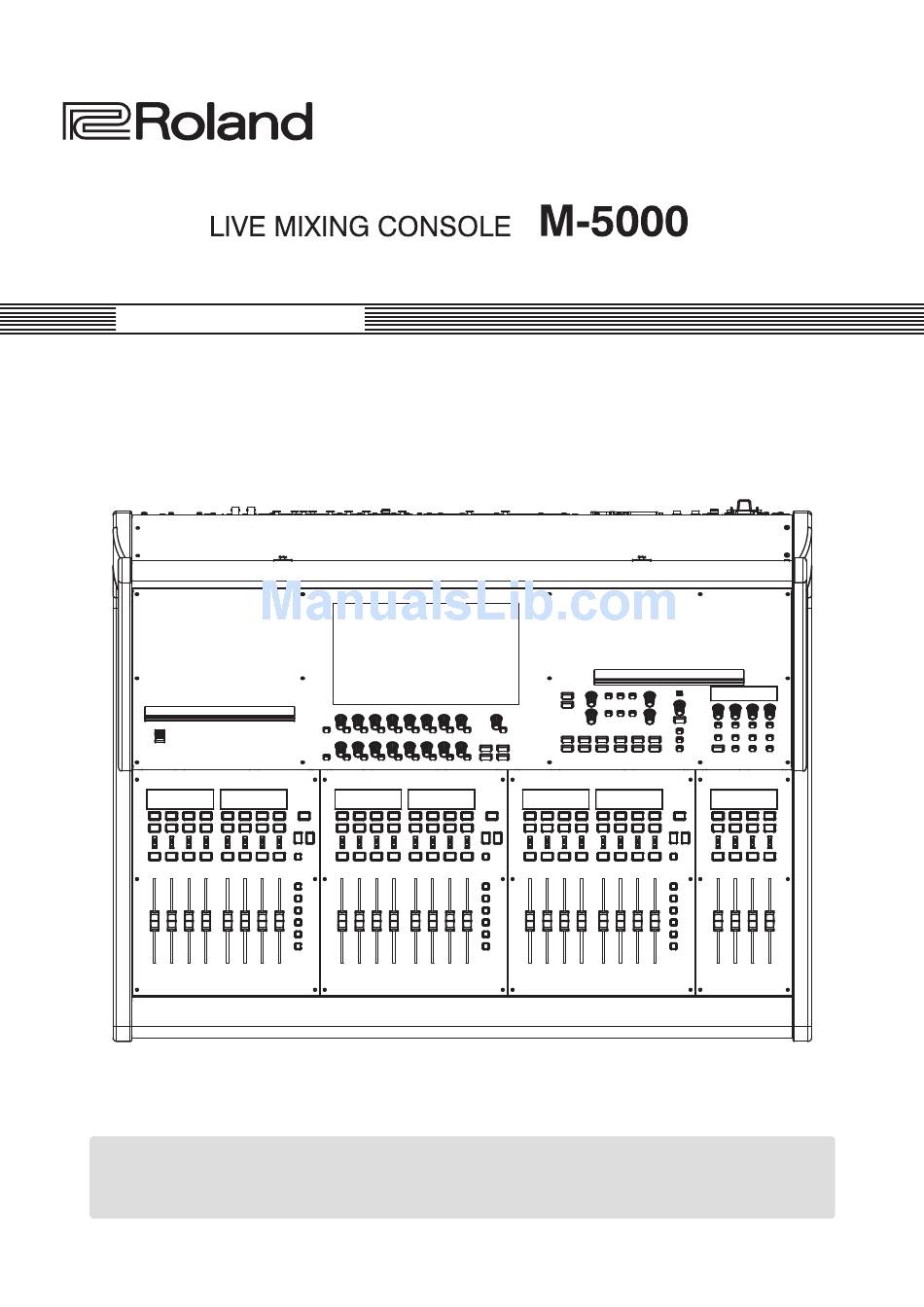

  • Page 1 Reference Manual Before using the unit, ensure that its system program is at the most recent version. For information on available upgrades for the system program, see the Roland website. Copyright © 2015 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.

  • Page 2: Organization Of The Documentation

    This adds to the information in Quick Start by describing the operational features on the various screens and other detailed usage methods. RCS User’s Guide This describes how to use the M-5000 RCS dedicated remote-control software that runs on a Windows or Macintosh computer. Remote User’s Guide This describes how to use the M-5000 Remote dedicated remote-control software that runs on an iPad.

  • Page 3: Table Of Contents

    Utilisation de l’attache du cordon d'alimentation Using the Power-cord Hook Connecting Backup Power to the M-5000 Utilisation du Crochet du cordon d’alimentation Raccordement d’une alimentation de secours au M-5000 Disconnecting Backup Power Turning the Power On and Off Turning the Power On Turning the Power Off Déconnexion de l’alimentation de secours...
  • Page 4 Restoring All Data in the M-5000 Unit’s Mixing Engine Loading a Project File from a USB Flash Drive MIXER CONFIGURATION Window Formatting a USB Flash Drive on the M-5000 Displaying the MIXER CONFIGURATION Window Muting All Outputs Changing the Number and Type of Input Channels/ Setting the Date and Time Output Buses, Etc.
  • Page 5 Contents Patchbays CH EDIT Window PATCHBAY Window Displaying the CH EDIT Window Displaying the PATCHBAY Window Displaying the CH EDIT Window from the HOME Screen PATCHBAY Window CH Tab Switching the Input Channel/Output Bus Displayed PATCHBAY Window BUS Tab in the CH EDIT Window PATCHBAY Window MISC Tab Displaying the CH EDIT Window from the Top Panel PATCHBAY Window INPUT Tab...
  • Page 6 About the Sidebar STEREO PHASER Checking the REAC Port and EXPANSION SLOT Communication Status PITCH SHIFTER x2 Changing What the PEAK/RMS Meter Displays Roland Vintage Effects RE-201 (Space Echo) Overviewing Meters/Faders SRV-2000 (Digital Reverb) Meter Bridge SDE-3000 x2 (Digital Delay)
  • Page 7 Saving a Project File Song list Recorder Section of the Top Panel Loading a Project File Formatting a USB Flash Drive on the M-5000 Recording/Playback to/from a USB Flash Drive Recording to a USB Flash Drive Initializing Mixer Parameter Playback from a USB Flash Drive...
  • Page 8 Contents SYSTEM Window Data SYSTEM Window Appendix Main specifications Changing the Preferences for the User Interface Connecting to Your Computer via USB PREFERENCES Window Inputting Computer Audio Adjusting the Brightness of the Top Panel and Touch Outputting Audio to the Computer Sensitivity PANEL Window Adjusting the Detection Position of the Touch Display...

  • Page 10: Main Features

    So what do you think? It's clear that the M-5000 has an extremely powerful mixing engine. High Resolution All elements installed in the M-5000 operate at a sample rate of 96 kHz. Not only AD/DA but the mixing engine as well operates at 96 kHz. All effect algorithms operate at 96kHz.

  • Page 11: Display Section

    The fader bank section, where 8 faders are provided, can also be used as independent sets of 8 faders or as interlinked sets of 16 or 24 faders. The decision on how to use the 24 controls can be made instantly, letting you operate the M-5000 and its huge mixing engine with optimal efficiency. You...
  • Page 12 Main Features Organic EL displays offering excellent brightness and visibility are provided above both the fader bank section and the assignable fader section, enabling quick confirmation of information. User-assignable section Assigning frequently used functions to the user-assignable section lets you display important functions on the top panel at all times. This groups together four encoders and eight buttons in a compact layout, but you can assign many more functions to this section by switching between three banks.

  • Page 13: Quick Start

    Quick Start First we’ll take a look at how to install the unit, part names and functions, an overview of operations, and other such information. The content of this chapter is the same as the Quick Start document packed with the unit. This chapter is organized into the following sections.

  • Page 15: Placement And Setup

    The items included with the M-5000 are as follows. Check to ensure that all are present. 5 Power cord * Be sure to use only the power cord included with the M-5000. 5 REAC connector covers (3) 5 Ferrite cores (6)

  • Page 16: Detaching The Reac Caps

    Placement and Setup Detaching the REAC Caps Connecting the Power Cord By default, the REAC ports are fitted with REAC caps. Remove NOTE these REAC caps when you use the REAC ports. Be careful to not Be sure to use the included power cord for connecting the lose the removed REAC caps so you can insert them again when power supply.

  • Page 17: Retrait Des Caches Reac

    Installation et ConfigurationRetrait des caches Retrait des caches REAC Connexion du cordon d'alimentation Par défaut, les ports REAC sont pourvus de caches REAC. Retirez ces NOTE caches REAC lorsque vous utilisez les ports REAC. Veillez à ne pas Veillez à utiliser le cordon d'alimentation fourni pour brancher égarer les caches REAC qui ont été...

  • Page 18: Using The Power-Cord Hook

    Insert the DC OUTPUT plug on the S-240P into the adapter cable (Speakon end). Twist the S-240P's DC OUTPUT plug clockwise until you hear it click. Insert the adapter cable (XLR4 end) into the EXT. POWER DC INPUT connector on the M-5000 until you hear it click.

  • Page 19: Utilisation Du Crochet Du Cordon D'alimentation

    Tourner la fiche DC OUTPUT du S-240P dans le sens des aiguilles d’une montre jusqu'à ce que vous entendiez un déclic. Insérer le câble de l'adaptateur (extrémité XLR4) dans le connecteur EXT. POWER DC INPUT du M-5000 jusqu'à ce que vous entendiez un déclic.

  • Page 20: Disconnecting Backup Power

    Turn off the power to the external power unit connected to the EXT. POWER DC INPUT connector on the M-5000. * If an external power Unit is providing power to the M-5000, the M-5000 will keep operating even if the power switch is in the OFF position.

  • Page 21: Déconnexion De L'alimentation De Secours

    (extrémité Speakon). 0 “Muting All Outputs” (p. 61) Baisser la sortie et éteindre l'alimentation de tout appareil raccordé à la sortie audio du M-5000 ou de toute unité d'entrée/sortie. Éteindre l'unité d'alimentation externe branchée sur le connecteur EXT. POWER DC INPUT du M-5000.

  • Page 22: Replacing The Internal Lithium Battery

    Be careful to avoid cutting your hand when opening. Attach the BATTERY panel and secure it in place using the screw loosened in step 3. Turn on the power to the M-5000 and set the date and time. 0“Setting the Date and Time” (p. 61) Restoring All Data in the M-5000 0“Restoring All Data in the M-5000”...

  • Page 23: Remplacement De La Pile Au Lithium Interne

    0“Restoring All Data in the M-5000” (p. 60) interne Fixation des housses de tablette Le M-5000 est équipé d'une pile interne au lithium qui maintient la fonction d'horloge de l’unité et conserve les réglages de la console. Fixez les housses de tablette aux endroits indiqués ci-dessous. Ils Si la pile est déchargée, la fonction d'horloge et de récupération des...

  • Page 24: Installing An Expansion Interface (Option)

    * When restarting the unit with the expansion interface installed, wait for about one second before you turn on the power. Turn off the power to the M-5000 and unplug the power cord from the power outlet. Loosen the mounting screws (2) for the expansion slot specified in the figure, then detach the panel.

  • Page 25: Installation D'un Module D'interface (En Option)

    Installation d'un module d'interface indiqué sur l’illustration. (en option) Vous pouvez étendre les capacités d'entrée et de sortie du M-5000 en installant dans le logement d'expansion de l'unité un module d'interface vendu séparément. Pour plus d'informations sur les modules d'interface qui peuvent être installés dans le M-5000, veuillez consulter le site Web Roland...

  • Page 26: Installing Reac Devices

    5 Never wind (bend) an Ethernet cable using a coil radius of 25 original digital audio-transmission technology using Ethernet. Its uses a protocol independently developed by Roland based on millimeters or less, or bend the cable sharply enough to kink it.

  • Page 27: Connecting Reac Input/Output Units

    MASTER MASTER M-5000 CLOCK SOURCE: INTERNAL The input/output units connected to the REAC A and B ports and the default input/output patchbays on the M-5000 are as follows. Input port Input channel REAC A INPUT 1–24 CH 1–24 REAC B INPUT 1–24 CH 25–48...

  • Page 28: Part Names And Functions

    Part Names and Functions Top Panel Fader Bank Section Monitor Section This section is for working with input channels and output buses in This section is for working with and controlling the monitor busses. 0“Monitor Section” (p. 32) sets of eight. You use the layer buttons and scroll buttons to access the desired input channel or output bus.

  • Page 29: Fader Bank Section

    Part Names and Functions Fader Bank Section This section is for working with eight input channels or output buses or both. You use layer selection and scrolling to access the desired input channel or output bus. Fader Bank display [FUNC] button [SEL] button [SOLO] button [SCROLL K] /...

  • Page 30: Assignable Fader Section

    Flash Drive on the M-5000” (p. 61), it is not possible to use this USB flash drive on the M-5000. 5 The M-5000 supports only USB flash drives (USB flash Memory and USB memory). USB Hard Disk and Memory Card Readers are not supported.

  • Page 31: Display Section

    Part Names and Functions Display Section This section lets you display and work with mixer parameters, system settings, and other values. For details, refer to the "Operation of the touch display" section in the Reference Manual (PDF). Touch display Selected knob / button [SHIFT] button [SCROLL H]/ [SCROLL I] button...

  • Page 32: Monitor Section

    Part Names and Functions Monitor Section This section is for working with monitor functions. This unit is provided with two monitor systems. The available selections for MONITOR 1 are 5.1, STEREO, and NONE (no assignment), and the available selections for MONITOR 2 are STEREO and NONE (no assignment).

  • Page 33: Scene Section

    Part Names and Functions Scene Section This section is for working with scene memories. Scene memory is a function that lets you store and recall mixing parameters as “scenes. ” [SELECT H]/ [SELECT I] button [STORE] button [DISP] button [RECALL] button [NEW] button Name Description...

  • Page 34: Talkback Section

    Part Names and Functions Talkback Section This section is for working with talkback functions. TALKBACK MIC 1 [LEVEL] knob [DISP] button [TALK 1]–[TALK 3] button Name Description TALKBACK MIC 1 This is the internal microphone for talkback. [LEVEL] knob This adjusts the level of talkback. [DISP] button This displays the TALKBACK/OSC window.

  • Page 35: User-Assignable Section

    Part Names and Functions User-assignable Section This section is for assigning and working with parameters of your choosing. User-assignable display [A]–[D] knob [ 1 ] –[8] buton [BANK 1]– [DISP] button [BANK 3] button Name Description User-assignable display This displays the parameters assigned to assignable knobs/buttons. [A]–[D] knob These manipulate the assigned parameter value.

  • Page 36: Rear Panel

    Part Names and Functions Rear Panel 19 20 LAMP Connectors GP I/O Connector These are XLR-4-31 connectors that supply power to third-party This is a D-sub 25-pin connector (4 in/12 out) for sending and gooseneck lamps. receiving control signals to and from an external device. DC+12V [DC+12V/500mA] Connector No.

  • Page 37: Panneau Arrière

    Noms et fonctions des différentes parties Panneau arrière 19 20 Connecteurs LAMP Connecteur GP I/O Ce sont les connecteurs XLR-4-31 qui alimentent les lampes à col de Il s'agit d'un connecteur D-sub à 25 broches (4 in/12 out) pour cygne tierces. envoyer et recevoir des signaux de commande vers et depuis un dispositif externe.

  • Page 38: Midi Connectors

    * Pins 7 and 8 are connected inside the M-5000. and supplies power if compatible. * For the M-5000 to function, the three pins RXD, TXD, and GND Power is not supplied if the device is not compatible with REAC must be connected as shown in the figure.
  • Page 39 Roland agréé comme indiqué sur la page “Informations”. Environnements déconseillés Il sert à connecter un iPad via le câble dock fourni avec le M-5000. 5 Conduites d’eau (risque de choc électrique ou d’électrocution) Cela vous permet d'utiliser l'appareil à distance et d'effectuer l'entrée et la sortie audio sur 2 canaux via un iPad.
  • Page 40 0“Using the Power-cord Hook” (p. 18) Cooling Fan COLD This is the fan for cooling the M-5000. When placing the M-5000, be careful not to obstruct the ventilation holes. EXPANSION SLOT EXT. POWER DC INPUT Connector This slot is for installing an optional expansion interface.
  • Page 41 Cet emplacement sert à l'installation d'un module d'interface en Il s’agit du ventilateur de refroidissement du M-5000. Lorsque option. vous placez le M-5000, veillez à ne pas obstruer ses orifices de 0“Installation d'un module d'interface (en option)” (p. 25) ventilation.

  • Page 42: Front Panel

    Part Names and Functions Front Panel PHONES 1/2 Jacks These are jacks for connecting headphones. You can use them to monitor MONITOR 1 or MONITOR 2 audio. Two outputs are provided: miniature stereo phone type and stereo 1/4-inch phone type. Ensure that the total impedance of both is less than 16 ohms.

  • Page 43: Panneau Avant

    Noms et fonctions des différentes parties Panneau avant Prises PHONES 1/2 Il s’agit de prises pour brancher un casque. Vous pouvez les utiliser pour le contrôle audio du MONITOR 1 ou MONITOR 2. Deux sorties sont disponibles : stéréo miniature de type téléphone et stéréo 1/4 pouces type téléphone. Assurez-vous que l'impédance totale des deux est de moins de 16 ohms.

  • Page 44: Overview Of Operations

    Basic Operations of Fader Bank Section Fader Bank Section Changing Layers On the M-5000, operations are carried out using groups of eight faders. Each set of eight faders is called a “fader bank. ” Press a layer button to switch to the desired layer.

  • Page 45: Anchor Channels

    Overview of Operations Accessing Adjacent Anchor Channels Anchor Channels Pressing and holding the [SCROLL K] or [SCROLL J] button scrolls You can mark channels you want to access rapidly in the various forward or backward to the anchor channel nearest the currently layers.

  • Page 46: Isolated Banks

    Overview of Operations Isolated Banks A fader bank whose [ISOLATE] button has been turned on is called an “isolated bank. ” Using isolated banks makes it possible to configure a wide variety of fader layouts, such as arranging a CHANNEL layer and DCA/BUS layer side by side at the same time. [ISOLATE] Term Description...

  • Page 47: Basic Touch Operations

    The following four operations are used when working with the touch display. The configuration of the mixing engine in the M-5000 can be changed as you like to suit the desired purpose. This section describes selecting a mixer configuration from templates.

  • Page 48: Home Screen

    Overview of Operations HOME Screen Access the CH EDIT window The HOME screen appears at startup. On the HOME screen, tap areas are shown below. INPUT DYNAMICS 1 DYNAMICS 2 DYNAMICS 1 MISC DYNAMICS 2 When other window is displayed, to close the window and display the HOME screen, press the [VIEW] button.

  • Page 49: Selecting The Source For An Input Channel

    Overview of Operations Selecting the Source for an Input Channel Selecting the Destination for an Output Access the CH EDIT window for the desired input channel. 0“Access the CH EDIT window” (p. 48) Access the CH EDIT window for the desired output bus. Tap the <INPUT tab>.

  • Page 50: Turning Phantom Power On Or Off

    Overview of Operations Turning Phantom Power On or Off Adjusting the Preamp Gain Access the CH EDIT window for the desired input channel. On the HOME screen, go to the knob-assign area and tap 0“Access the CH EDIT window” (p. 48) <GAIN>.

  • Page 51: Applying Dynamics

    Overview of Operations Applying Dynamics Using Faders to Adjust the Send Level to AUX (SENDS ON FADER) Access the CH EDIT window. 0“Access the CH EDIT window” (p. 48) Using SENDS ON FADER lets you use faders to adjust the send level to an AUX.

  • Page 52: Sending To Subgroup/Mix-Minus

    Overview of Operations Sending to SUBGROUP/MIX-MINUS Using an FX with Send/Return This sends an input channel to a SUBGROUP or MIX-MINUS. On the HOME screen, tap <FX>. Memo MIX-MINUS lets you mix a specific channel pulled from MAIN. By default, all input channels are sent with POST FDR (on), with only necessary channels turned off.

  • Page 53: Inserting An Fx

    Overview of Operations Tap <DESTINATION A> or <DESTINATION B>. Inserting an FX The DESTINATION popover appears. This inserts an FX at INSERT A or INSERT B on an input channel or output bus. INSERT A is inserted before dynamics and EQ, and INSERT B is inserted after dynamics and EQ.

  • Page 54: Inserting A Geq

    Overview of Operations On the HOME screen, tap <FX>. Inserting a GEQ This inserts a GEQ at INSERT A or INSERT B. INSERT A is inserted before the dynamics and EQ, and INSERT B is inserted after the dynamics and EQ. DYN/EQ EQ/DYN 4-BAND...

  • Page 55: Linking Channels

    Overview of Operations On the HOME screen, tap <GEQ>. Linking Channels You can link multiple input channels or output buses into up to 12 groups. The parameters of linked input channels or output buses are set to the same values. You can select the parameters to link. Press the [MENU] button.

  • Page 56: Making Assignments To Dca/Mute Groups

    Overview of Operations Making Assignments to DCA/MUTE Using Talkback Groups Go to the talkback section on the top panel and press the [DISP] button. In DCA groups, you manipulate the levels of all assigned input channels or output buses at one time. The TALKBACK/OSC window appears.

  • Page 57: Using The Oscillators

    Overview of Operations Select the output destination for TALK 1 to TALK 3. Scene memory Press one of the [TALK 1] through [TALK 3] buttons in the talkback section. Scene memory is a function that lets you store and recall mixing parameters as “scenes.

  • Page 58: Recalling A Scene

    The formats of playable WAV files are as follows. Playback is possible even if the sampling frequency of the WAV file differs from the M-5000’s sampling frequency. Sampling frequency: 96kHz, 48kHz, 44.1kHz A popup prompting you to confirm the operation is displayed.

  • Page 59: Playback From A Usb Flash Drive

    [ t ] button. The data in the M-5000 is saved as a project file. You back up the data in the M-5000 by saving the project file to a Go to the recorder section on the top panel and press the USB flash drive.

  • Page 60: Restoring All Data In The M-5000

    Restoring All Data in the M-5000 The data in the M-5000 is saved as a project file. You restore data to the M-5000 by loading a project file from a USB flash drive. Loading a Project File from a USB Flash Drive Press the [MENU] button.

  • Page 61: Formatting A Usb Flash Drive On The M-5000

    Muting All Outputs NOTE Performing initialization causes all data to be lost. This mutes all outputs at times such as when turning the M-5000’s Data that is needed can be saved to a USB flash drive. power on or off.

  • Page 62: Fader Calibration

    Overview of Operations Fader Calibration If the fader positions are no longer aligned with the index markings of the top panel, carry out fader calibration to adjust. Press the [MENU] button. On the MENU window, tap <SYSTEM>, then tap <FADER CALIBRATION>.

  • Page 63: Touch Display Operations

    Touch Display Operations This section and the following sections describe the M-5000 in detail as a reference manual. First, you’ll learn how to work with the touch display, where a large amount of information is shown. In this chapter, the explanations are organized into the following sections.

  • Page 64: Touch Display Operations

    Touch Display Operations Operating the Touch Display Organization of the Display Screen The following four operations are used when working with the touch display. Using your fingertip, you press and release an on-screen button, area, or other item. The display is composed of the following elements. 5 HOME screen Double-tap The HOME screen is the screen displayed at startup.

  • Page 65: Home Screen

    Touch Display Operations HOME Screen Windows The HOME screen appears at startup. Windows include the CH EDIT window and the GEQ window. You use them to perform such tasks as adjusting input channels and output buses and making various settings. Even when windows, popovers, or other elements are displayed, this screen is always displayed underneath.

  • Page 66: Popovers

    Touch Display Operations Popovers List Operations Popovers are views briefly displayed on-screen when you select Lists are sometimes displayed in windows. particular parameters. When a list is displayed you can select and manipulate multiple They are displayed mainly in cases of parameters that have three or elements.

  • Page 67: Selecting And Moving Multiple List Items

    Touch Display Operations Selecting and Moving Multiple List Items Selecting and Duplicating Multiple List Items For each list element you want to move, select its For each list element you want to duplicate, select its <CHECKBOX> to turn it on. <CHECKBOX>...

  • Page 68: Selecting And Deleting Multiple List Items

    Touch Display Operations Selecting and Deleting Multiple List Items Entering Numerical Values The following view is displayed when entering numerical values. For each list element you want to delete, select its <CHECKBOX> to turn it on. 1/2/4/8 These enter 1, 2, 4, or 8 into the value input area. Tapping the value input area displays a value input popover.

  • Page 69: Entering Text

    Touch Display Operations Entering Text When entering text, a screen keyboard like the one shown below is displayed. 0-9, A-Z, `-=[]\;' , ./ These input text. NEXT This jumps to text input for the next channel. When this is on, letters of the alphabet are input CAPS in upper case.

  • Page 70: Interlinked Operation Of The Touch Display And Top Panel

    Interlinked Operation of the Touch Display and Top Panel This interlinks the display section’s touch display and knob section Some windows lack a knob section area, and in such cases the knob or the touch display and selected knobs, achieving rapid operation. section of the top panel is dark and cannot be operated.

  • Page 71: Control Using Selected Knobs/Buttons

    Interlinked Operation of the Touch Display and Top Panel Control Using Selected Knobs/Buttons Tapping a parameter on the touch display shifts focus to the parameter. When a parameter has focus, you can use the selected knob and button to work with it.

  • Page 72: [Shift] Button And [All] Button

    Interlinked Operation of the Touch Display and Top Panel Memo [SHIFT] Button and [ALL] Button The way the [ALL] button is turned on and off changes depending to how you press the [ALL] button. When you release the button quickly after pressing it, it operates [SHIFT] Button as a toggle turning on or off with each press.

  • Page 73: Configuring The Mixer

    In this chapter, you’ll learn how to configure the mixing engine to match the situation. First we’ll take a look at the types of input channels and output buses you can select in the M-5000. After that, we’ll change the number of input channels and output buses and make settings for input and output patchbays.

  • Page 74: Overview Of Input Channels/Output Buses

    Overview of Input Channels/Output Buses Types of Input Channels/Output Buses You can select from among the following types of input channels and output buses for the M-5000’s mixing engine. Input channels 5 INPUT CHANNEL (MONO/STEREO) Output buses 5 MAIN (MONO/LR/LCR/CROSS-MATRIX LCR/5.1)

  • Page 75: Input Channel

    Overview of Input Channels/Output Buses INPUT CHANNEL INPUT CHANNEL processes audio from INPUT PATCHBAY and sends it to the output bus. Direct output to OUTPUT PATCHBAY is also possible. You can select MONO or STEREO. INPUT PATCHBAY MAIN (5.1, LCR o INPUT CHANNEL (MONO or STEREO) CH TOP DYN/EQ...

  • Page 76: Main/Mix-Minus

    With MIX MINUS, the send level from input channels, SUBGROUP, and AUX is identical with that of MAIN, but the setting to not send a specific channel can be made. You can select MONO or STEREO for MIX MINUS. This M-5000 is equipped with 2 MAINs. You can select from among MONO, LR, LCR, CROSS-MATRIX LCR, and 5.1. OUTPUT PATCHBAY MAIN (5.1, LCR or LR), MIX-MINUS (MONO or STEREO)

  • Page 77: Subgroup/Aux

    Overview of Input Channels/Output Buses SUBGROUP/AUX OUTPUT PATCHBAY MAIN (5.1, LCR or LR), MIX-MINUS (MONO or STEREO) DYN/EQ CH TOP POST D.GAIN PRE FDR POST FDR EQ/DYN SUBGROUP and AUX process audio sent from input channels, and output it to OUTPUT PATCHBAY. Output to MAIN, MIX MINUS, or MATRIX is also MAIN OUT possible.

  • Page 78: Matrix

    AUX OUT φ 4-BAND BUS TRIM D.GAIN DYN 1 DYN 2 DELAY FADER MUTE TO PATCHBAY TO MAIN (5.1, LCR, or LR) SOLO TO SOLO 1/2 EXPANSION SLOT (E) SOLO TO SOLO 1/2 5.1 SURROUND PAN KEY-IN FILTER 6, 3, 2 LCR PAN KEY-IN FILTER...

  • Page 79: Changing The Number Of Input Channels/Output Buses

    About the Unit’s Mixing Engine the Unit’s Mixing Engine The M-5000 is provided with internal audio paths for 128 channels. These paths can freely be used as either input channels or This section shows a number of mixer configurations that you can output buses.

  • Page 80: Mixer Configuration Window

    Changing the Number of Input Channels/Output Buses Changing the Number and Type of Input MIXER CONFIGURATION Window Channels/Output Buses, Etc. Changes in mixer configuration are made in the MIXER CONFIGURATION window. Changes in number and type are made in the MIXER CONFIGURATION window, using input channel/output bus list.
  • Page 81 Changing the Number of Input Channels/Output Buses MAIN SUBGROUP NUMBER NAME NONE No MAIN at all is used. Value input area MAIN 1: MONO MAIN 2: None MONO * One audio path is used. NUMBER SUBGROUP number MAIN 1: LR SUBGROUP name MAIN 2: None * When no specific name exists, a name...
  • Page 82 Changing the Number of Input Channels/Output Buses MIX-MINUS NUMBER NAME NUMBER NAME Value input area Value input area NUMBER AUX number NUMBER MIX-MINUS number AUX name MIX-MINUS name * When no specific name exists, a name * When no specific name exists, a name NAME NAME corresponding to the AUX number (AUX xx) is...
  • Page 83 Changing the Number of Input Channels/Output Buses MATRIX MONITOR NUMBER NAME NONE No monitors are used. Value input area Stereo STEREO * Two audio paths are used. LCR (stereo + center) Sets the number of input channels/output buses MATRIX INPUTS sent to MATRIX.

  • Page 84: Moving/Deleting Multiple Input Channels/Output Buses

    Changing the Number of Input Channels/Output Buses Selecting a Mixer Configuration from a Template You use the TEMPLATE popover to load a preset mixer configuration template. Display the MIXER CONFIGURATION window. Tap <TEMPLATE>. The TEMPLATE popover is displayed. NONE No oscillator at all is used. Select a template for mixer configuration.

  • Page 85: Mixer Configuration Templates

    Changing the Number of Input Channels/Output Buses THEATER Mixer Configuration Templates Channel number Audio paths used Type CH 1-94 DEFAULT MONO MAIN 1 AUX 1-16 MONO Channel number Audio paths used Type MTX 1-8 MONO MON 1 STEREO CH 1-64 MONO Talkback CH 65-68...

  • Page 86: Rearranging Input Channels/Output Buses

    Rearranging Input Channels/Output Buses On this unit, you can freely rearrange the order of input channels Displaying the ARRANGE CHANNEL Window and output buses, even after applying the mixer configuration. Rebooting the console is not necessary. Go to the display section and press the [MENU] button. ARRANGE CHANNEL Window The MENU window appears.

  • Page 87: Patchbays

    Patchbays After establishing the mixer configuration, you can then route your PATCHBAY Window CH Tab inputs and outputs in the patchbays. Patchbay operations are carried out mainly in the PATCHBAY In the PATCHBAY window CH tab, you make patchbay settings for window.

  • Page 88: Patchbay Window Bus Tab

    Patchbays MAIN (5.1, LCR or LR), MIX-MINUS (MONO or STEREO) DYN/EQ CH TOP POST D.GAIN PRE FDR POST FDR EQ/DYN POST FDR TO MAIN (5.1, LCR, or LR) PATCHBAY Window BUS Tab PATCHBAY Window MISC Tab 4-BAND φ 5.1 SURROUND PAN FADER MUTE BUS TRIM...

  • Page 89: Patchbay Window Input Tab

    In the PATCHBAY window INPUT tab, you can list the input- In the PATCHBAY window OUTPUT tab, you can list the output- connector settings for input and output devices connected to the connector settings for input and output devices connected to the M-5000. M-5000. NUMBER/TYPE NUMBER/TYPE...

  • Page 90: Popover For Making Patchbay Settings

    Patchbays Assigning a Range of Channels in a Patchbay Popover for Making Patchbay Settings You can assign a range of channels for a patchbay. When you select an input connector, output connector, input channel, output bus, or other such element, a popover like the one Example: This assigns inputs connectors 1 through 24 on an S-2416 shown below appears.

  • Page 91: Using Alternate Input Connectors

    Usage Example 2) Recording is performed on a multi-track recorder, and at rehearsal the following day, the recording data is played- back to the M-5000 and mixed. The recording mic is set to IN and the output from the multi-track recorder is set to TR. IN and TR are switched together.

  • Page 92: Setting All Input Channels To Alternate Input Connectors

    Patchbays Setting All Input Channels to Alternate Input Connectors On the PATCHBAY window CH tab, tap <SWAP INPUT>. Tap the header of the IN, ALT, or TR column. The input connectors for all input channels are switched.

  • Page 93: Input Channel And Output Bus Operations

    Input Channel and Output Bus Operations The chapters up to now have shown you how to configure the mixer differently according to circumstances. Now, in this chapter, we’re ready to do some mixing! Adjusting EQ, dynamics, send level, and other such parameters for input channels and output buses is accomplished mainly on the HOME screen and the CH EDIT window.

  • Page 94: Home Screen

    HOME Screen When the M-5000 starts up, the HOME screen (Process View) is Channel Strips displayed. You can display information for any eight channels you choose on the HOME screen. Pressing the [SEL] buttons on the top panel lets The channel strips displayed on the HOME screen show information you access input channels and output buses quickly.

  • Page 95: Channel Strip (Input Channel)

    HOME Screen Channel Strip (Input Channel) Input patchbay Input patchbay Meter INPUT DYNAMICS 1 Meter DYNAMICS 2 MISC SENDS INPUT PAN/ROUTING PAN/ROUTING Knob section Knob section area area NAME NAME DCA/MUTE GROUP DCA/MUTE GROUP Process view Meter view Input patchbay Displays the channel number and input source as set in the patchbay.

  • Page 96: Channel Strip (Output Bus)

    HOME Screen Channel Strip (Output Bus) Output patchbay Output patchbay Meter Meter DYNAMICS 1 DYNAMICS 2 MISC PAN/ROUTING PAN/ROUTING Knob section Knob section area area NAME NAME DCA/MUTE GROUP DCA/MUTE GROUP Process view Meter view Output patchbay Displays the channel number and output destination as defined in the patchbay. Displays the signal level.

  • Page 97: Channel Strip (Dca)

    HOME Screen Channel Strip (DCA) DCA group number Input channel/output bus list RECALL SAFE NAME DCA group number Displays the number of the DCA group. Displays a list of input channels/output buses assigned to the DCA group. Input channel/output bus list Tapping displays the ASSIGN TO DCA popup.

  • Page 98: Copying/Pasting Input Channel/Output Bus Settings On The Home Screen

    HOME Screen Copying/Pasting Input Channel/Output Bus Settings on the HOME Screen Copying Input Channel/Output Bus Settings on the HOME Screen Go to the display section and press the [MENU] button. The MENU window appears. Tap <COPY>. Tap <COPY>. The selected setting is saved to the clipboard. Pasting Input Channel/Output Bus Settings on the HOME Screen Go to the display section and press the [MENU] button.
  • Page 99 HOME Screen Tap <PASTE>. The setting is pasted. Memo To undo (cancel) the last paste operation, go to the MENU window and tap <UNDO PASTE>.

  • Page 100: Ch Edit Window

    CH EDIT Window You perform operations on input channels and output buses in the Switching the Input Channel/Output Bus CH EDIT window. Displayed in the CH EDIT Window Displaying the CH EDIT Window To switch the input channel or output bus displayed in the CH EDIT window, go to the HOME screen and tap the channel strip you want to switch.

  • Page 101: Layout Of The Ch Edit Window

    CH EDIT Window Layout of the CH EDIT Window CH EDIT Window (Input Channel) Channel name/channel color INPUT Tab In the INPUT tab, you make input patchbay settings, preamp settings, and other such settings. Display area 5 Channel name/channel color CH TOP meter Displays the signal level at CH TOP.

  • Page 102: Dynamics Tab

    CH EDIT Window Using Alternate Input Connectors DYNAMICS Tab You can set three types of input connectors for input channels In the DYNAMICS tab, you make the settings for Dynamics 1 and 2. --- IN, ALT (alternative), and TR (track) --- and switch between these The operation procedures for Dynamics 1 and Dynamics 2 are the according to circumstances during use.

  • Page 103: Parameter Area Of The Dynamics Tab

    CH EDIT Window GATE Memo The isolation point for the key-in signal is as follows. Key-in signal Isolation point SELF Signal input to Dynamics Input channel CH TOP Output bus POST FADER Memo With MAIN, only SELF can be selected for the key-in signal. MEMO The level detection points for INPUT METER, OUTPUT METER, and GR METER are as follows.

  • Page 104: Eq Tab

    CH EDIT Window COMPRESSOR EQ Tab In the EQ tab, you make the settings for HPF, LPF, and 4-BAND EQ. Memo The order in which the DYNAMICS 1/2 tabs and the EQ tab are displayed depends on the routing of DYNAMICS 1/2 and EQ as set in the DYNAMICS window.

  • Page 105: Misc Tab

    CH EDIT Window You perform the following operations in the parameter area. MISC Tab In the MISC tab, you make a variety of settings, such as Delay, Direct Out, Channel Safe, Solo, and Insert. LO TYPE LM TYPE HM TYPE HI TYPE HPF/LPF HPF/LPF center frequency...

  • Page 106: Sends Tab

    The available DELAY UNIT values are msec, Meter, Feet and In the SENDS tab, you make the settings for sendings for input Frame (24, 25, 29.97, or 30 fps). Delay on the M-5000 is based channels to AUX. on msec steps, and simply changing the DELAY UNIT parameter SENDS overview does not alter delay times in msecs.
  • Page 107 CH EDIT Window Parameter Area of the SENDS Tab SETUP SENDS POINTS Window In the SETUP SENDS POINTS window, you set send points to an AUX for all input channels at one time. SEND PAN PAN LINK Send point Send level Send pan to AUX SEND PAN * This is displayed when the AUX is stereo.

  • Page 108: Pan/Routing Tab

    CH EDIT Window PAN Tab (LR) PAN/ROUTING Tab The further tabs are displayed on the PAN/ROUTING tab. 5 PAN tab This sets panning when sending to MAIN. 5 SUBGROUP tab This sets assignments to SUBGROUPs. 5 MIX-MINUS tab This is displayed using the input channel, AUX, and SUBGROUP. PAN Tab Operations The operation procedures in the PAN tab differ according to the setting for MAIN that has been made in the MIXER CONFIGURATION...
  • Page 109 CH EDIT Window PAN Tab (LCR/CROSS-MATRIX LCR) LCR PAN When this is on, the signals sent to MAIN LCR can be collectively turned on/off. Pan will operate across the MAIN LCR and CENTER is displayed. When this is off, the signals sent to MAIN LR and MAIN C can be individually turned on/off.
  • Page 110 CH EDIT Window PAN Tab (5.1) Divergence Divergence adjusts the amount of diffusion along the respective axes (front X axis, rear X axis, or Y axis). For example, setting FRONT DIV, REAR DIV, and F/R DIV all to “0%” and placing the signal directly above L outputs the audio only to L, with nothing output to other channels (C, R, Ls, LFE, and Rs).

  • Page 111: Dca/Mute Group Tab

    CH EDIT Window DCA/MUTE GROUP Tab In the DCA/MUTE GROUP tab, you assign input channels and output buses to DCA and MUTE groups DCA 1 - DCA 24 Assigns to the DCA group. MUTE 1 - MUTE 8 Assigns to the MUTE group. CLEAR Clears all assignments to DCA/MUTE groups.

  • Page 112: Ch Edit Window (Output Bus)

    CH EDIT Window CH EDIT Window (Output Bus) MISC Tab In the MISC tab, you make a variety of settings, such as Delay, Channel Safe, Solo, and Insert. OUTPUT Tab In the OUTPUT tab, you make output patchbay settings. Input channels are not displayed.

  • Page 113: Pan/Routing Tab

    CH EDIT Window PAN/ROUTING Tab The PAN/ROUTING tab is displayed for SUBGROUP and AUX, and you can make settings for sending to MAIN and sending to MIX- MINUS. The operation procedures are the same as for the CH EDIT window PAN/ROUTING tab for input channels.

  • Page 114: Copying/Pasting Input Channel/Output Bus Settings At The Ch Edit Window

    CH EDIT Window Copying/Pasting Input Channel/Output Pasting Input Channel/Output Bus Settings at the CH EDIT Window Bus Settings at the CH EDIT Window Display the CH EDIT window where you want to paste. Copying Input Channel/Output Bus Settings at Go to the display section and press the [MENU] button. the CH EDIT Window The MENU window appears.

  • Page 115: Top Panel (Fader Region)

    Top Panel (Fader Region) This chapter describes operation procedures for the lower half of the top panel, the fader region. In particular, mastering use of the fader bank section, one of this unit’s strong points, will let you accomplish quick level adjustment with very little body movement.

  • Page 116: Fader Bank Section

    On the M-5000, operations are carried out using groups of eight faders. Each set of eight faders is called a “fader bank. ” The M-5000 provides three fader banks. You can operate the respective fader banks in an interlinked way or independently, enabling you to carry out your intended operations instantly.

  • Page 117: Layers

    Fader Bank Section Layers Basic Operations of Fader Bank Section Each fader bank has two basic layers (CHANNEL and DCA/BUS) and three customizable layers (USER 1 through 3) that you can switch Changing Layers between according to purpose. Press a layer button to switch to the desired layer. Layer button Description [CHANNEL]...

  • Page 118: Isolated Banks

    Fader Bank Section Isolated Banks A fader bank whose [ISOLATE] button has been turned on is called an “isolated bank. ” Using isolated banks makes it possible to configure a wide variety of fader layouts, such as arranging the CHANNEL layer and DCA/BUS layer side by side at the same time. [ISOLATE] Term Description...

  • Page 119: Anchor Channels

    Fader Bank Section Press the [SEL] button that corresponds to the desired Anchor Channels anchor channel. You can mark channels you want to access rapidly in the various layers. These are called “anchor channels. ” Specifying anchor channels in the respective layers lets you quickly jump to the desired channel.

  • Page 120: Listing Channels Assigned To A Dca Group (Spill Dca)

    Fader Bank Section Listing Channels Assigned to a DCA Group Using Faders to Adjust the Send Level to (SPILL DCA) AUX (SENDS ON FADER) Using SPILL DCA lets you take input channels and output buses Using SENDS ON FADER lets you use faders to adjust the send level assigned to a DCA group and temporarily expand them into a to AUX.

  • Page 121: Select Aux Sends Window

    Fader Bank Section SELECT AUX SENDS Window Tapping <AUX TARGET> displays the SELECT AUX SENDS window. * This is not displayed when no AUX exists. Selects the AUX selected in the knob section area of the HOME screen. Also simultaneously selects AUXes accessed when SENDS ON FADER was on.

  • Page 122: Operation Procedures In The Function Mode

    Function Selection mode. Selectable functions are shown on the fader display. Select “ASSIGN FADER”. (Press the corresponding [SEL] button.) The M-5000 switches to the mode for making the settings for the selected function. Operate the fader bank to access the desired input channel or output bus.

  • Page 123: Canceling Channel Assignments To Faders

    The M-5000 switches to the UNASSIGN FADER mode. Repeat steps 3 and 4. Press the [SEL] button for the fader whose assignment MEMO you want to release to apply a check mark (UNASSIGN )).

  • Page 124: Setting An Anchor Channel

    Select “SET ANCHOR”. (Press the corresponding [SEL] button.) The M-5000 switches to the SET ANCHOR mode. Press the [SEL] button for the fader which you want to set an anchor to apply a check mark (ASSIGN )). Press the [FUNC] button to exit the Function mode.

  • Page 125: Assignable Fader Section

    Assignable Fader Section About the Assignable Fader Section You can assign any four channels to the assignable fader section. This lets you keep important channels displayed on the top panel at all times. It can be handy to assign channels that you always want instant access to, such as MASTER, main vocals, and MC mic. Fader Bank display [SEL] button [SOLO] button...

  • Page 126: Assigning Channels To Faders

    Select “UNASSIGN FADER”. (Press the corresponding [SEL] button.) button.) The M-5000 switches to the ASSIGN FADER mode. The M-5000 switches to the UNASSIGN FADER mode. Press the [SEL] button for the fader whose assignment Press the [SEL] button for the fader whose assignment you want to change to apply a check mark (ASSIGN )).

  • Page 127: Switching The Home Screen/Ch Edit Screen

    HOME screen or CH EDIT screen, you use the [SEL] buttons on or assignable fader section. the top panel. When the M-5000 starts up, the channel strip for the leftmost fader bank section is displayed. The CH EDIT window for the selected input channel or output bus appears.

  • Page 128: When The Ch Edit Screen Is Displayed

    Switching the HOME Screen/CH EDIT Screen When the CH EDIT Screen Is Displayed Press an unselected [SEL] button. The CH EDIT window for the selected input channel or output bus appears. Press the selected [SEL] button. The CH EDIT window disappears and the HOME screen appears.

  • Page 129: Sidebar

    Sidebar The sidebar for the HOME screen is always displayed and never hidden, even when various windows are displayed. Important information that you want to monitor at all times and buttons for accessing important screens are displayed here. In this chapter, the explanations are organized into the following sections. 5 “Sidebar”...

  • Page 130: Sidebar

    Sidebar Displays the meter bridge About the Sidebar 0“Overviewing Meters/Faders” (p. 132) Indicate the communication status of the REAC ports and EXPANSION SLOTs. REAC/SLOT The right side of the HOME screen is called the "sidebar." 0“Checking the REAC Port and EXPANSION indicators SLOT Communication Status”...

  • Page 131: Changing What The Peak/Rms Meter Displays

    Sidebar Changing What the PEAK/RMS Meter Displays On the PEAK/RMS meter on the sidebar, you can select and display any two from among MAIN 1, MAIN 2, MONITOR 1, and MONITOR 2. To change what is displayed, tap the PEAK/RMS meter.

  • Page 132: Overviewing Meters/Faders

    Overviewing Meters/Faders Meter Bridge On the Meter Bridge, you can overview all meters and faders for input channels and output buses. SETUP Tapping this displays the METER SETUP popover. Exits the Meter Bridge. Displaying the Meter Bridge To display the Meter Bridge, go to the sidebar and tap <I>. METER SETUP Popover In the METER SETUP popover, you make settings for meters.

  • Page 133: Date And Time

    DATE & TIME Window You use the DATE & TIME window to set the date and time on the M-5000. To display the DATE & TIME window, go to the HOME screen and tap the <Date/time area>. Selects from among the following date formats.

  • Page 134: Knob-Assign Area

    Knob-assign Area Assigns the following parameters to the upper About the Knob-assign Area portion of the knob section area of the HOME screen. Knob: Preamp gain The portion of the sidebar shown below is called the "knob-assign Button: PAD GAIN area."...

  • Page 135: User Selectable Popover

    Knob-assign Area USER SELECTABLE Popover Tapping <USER SELECTABLE> displays the USER SELECTABLE popover. To assign a parameter selected using the USER SELECTABLE popover to the knob section area, go to the knob-assign area and tap <USER>. Selects the following parameters. Knob: HPF frequency Button: HPF ON/OFF Selects the following parameters.

  • Page 136: Effects

    Effects About Effects FX RACK Window The M-5000 is provided with eight stereo effect systems. In the FX RACK window, you make settings for effect input/output, effect type, and the like. The settings for FX 1-8 are displayed in a row.

  • Page 137: Displaying The Fx Rack Window

    Effects Displaying the FX RACK Window Effect Library (Preset) To display the FX RACK window, go to the HOME screen and tap <FX>. Effect type TYPE 0“About Effect Types” (p. 140) Effect library number Effect library name NAME Tapping this selects the effect library. RECALL Recalls the selected library data.

  • Page 138: Fx Edit Window

    Effects Displaying the FX EDIT Window FX EDIT Window To display the FX EDIT window, go to the FX RACK window and tap In the FX EDIT window, you work with advanced parameters for the <FX OVERVIEW>. respective effects. The layout of the FX EDIT window varies according to effect type, but the general layout is as shown below.

  • Page 139: Inserting An Fx

    Effects Inserting an FX Display the CH EDIT window. 0“CH EDIT Window” (p. 100) Tap the <MISC tab>. MISC tab INSERT A INSERT B Tap <INSERT A> or <INSERT B>, then select the number of the FX to insert. Memo If the input channel or output bus is stereo, you can make insertions at the following four locations.

  • Page 140: About Effect Types

    About Effect Types REVERB Tab This section covers the 22 high-quality effect types you can select on the M-5000. Reverb STEREO REVERB Input L Output L Stereo 4 Band EQ Reverb Input R Output R Type of reverb This is a stereo-in, stereo-out reverb. It adds reverberation without 5 ROOM1 impairing the position of the sound image that’s been set for the...

  • Page 141: Reverb

    About Effect Types EQ Tab REVERB Input L Output L 4 Band EQ Gate Reverb Key-In Input R Output R This is a mono-in, stereo-out reverb. It provides a gate that can be used for gating or ducking, allowing you to cut the reverb during its decay, or to cut the reverb when the level of the original sound is high.
  • Page 142 About Effect Types EQ Tab GATE Tab LO TYPE LM TYPE HM TYPE HI TYPE GATE ON Turns the gate on/off GATE: Sound lower than the THRESHOLD level will be attenuated by the amount specified by EQ ON Turns the EQ on/off RANGE FREQ Center frequency...

  • Page 143: Delay

    About Effect Types LONG DELAY Delay Input L Output L DELAY x2 Input A Output A Delay FEEDBACK PRE DPF Delay LEVEL WET POSITION POST DPF Input R Output R Input B Output B This is a mono-in, stereo-out long delay. PRE DPF Delay WET POSITION...

  • Page 144: Multi Tap Delay

    About Effect Types LEVEL Tab MULTI TAP DELAY Input L Output L Pan 1 Pan 2 Pan 12 Multi Tap Delay FEEDBACK LEVEL Input R Output R LEVEL 1-12 Level of the delay sound This is a mono-in, stereo-out twelve-stage tap delay. PAN Tab When MULTI TAP DELAY is selected, four tabs are displayed.

  • Page 145: X.mod Delay

    About Effect Types FEEDBACK Tab X.MOD DELAY Input L Output L PRE DPF POSITION Delay L POST DPF Modulation POST DPF POSITION Delay R PRE DPF Input R Output R This is a stereo-in, stereo-out cross-modulation delay. Time until the delayed sound is returned to the FB TIME input of the delay Amount of delayed sound returned to the input...

  • Page 146: Modulation

    About Effect Types STEREO FLANGER Modulation In modulation-type effects, raising the feedback value will make the DIR SW Input L Output L sound richer and more spacious. Negative values will invert the phase. EFF SW STEREO CHORUS Flanger L DIR SW Input L Output L Flanger R...

  • Page 147: Stereo Phaser

    About Effect Types STEREO PHASER PITCH SHIFTER x2 DIR SW Input L Output L Input A Output A Pitch Shifter EFF SW Phaser L Input B Output B Pitch Shifter Phaser R EFF SW This is a dual-mono pitch shifter. The operation procedures for A and B are the same.

  • Page 148: Roland Vintage Effects

    (non-linear) mode in which the reverb sound is cut off according to the gate time setting. This is a delay that models the Roland RE-201 Space Echo. The original was mono-in, mono-out, but this modeling adds PAN HEAD SHORT/MIDDLE/LONG settings and a REVERB STEREO Sw, allowing When SRV-2000 is selected, two tabs are displayed.

  • Page 149: Sde-3000 X2 (Digital Delay)

    The lower and upper limits of the value will differ depending on <MODE> and <REV SEL>. This is a delay that models the Roland SDE-3000 digital delay. The original unit was mono-in, mono-out, but this modeling provides a NON LNR mode: -.9-99s dual-mono configuration with two such units in parallel.

  • Page 150: Dimension D Chorus)

    About Effect Types SDD-320 (Dimension D Chorus) SPH-323 x2 (Phase Shifter) This is a stereo-in, stereo-out chorus that models the Roland SDD- This is a phase shifter that models the Roland SPH-323 Phase 320 Dimension D. Shifter. The original was mono-in, mono-out, but this modeling is a dual-mono design with two units in parallel.

  • Page 151: Stereo Flanger)

    About Effect Types SBF-325 (Stereo Flanger) BOSS Compact Pedal Effects This is a stereo-in, stereo-out flanger that models the Roland SBF- 325 Stereo Flanger. CE-1 (Chorus Ensemble) This is a chorus modeled on the Boss CE-1 Chorus Ensemble. The original has mono in and mono out (or wet/dry out)

  • Page 152: X2 (Digital Delay)

    About Effect Types DD-3 x2 (Digital Delay) DM-3 x2 (Delay) This is a delay modeled on the Boss DD-3 Digital Delay. This is a delay modeled on the Boss DM-3 Delay. The original has mono in and mono out (or delay/direct out) The original has mono in and mono out (or delay/direct out) specifications, but the modeling has dual mono specifications that specifications, but the modeling has dual mono specifications that...

  • Page 153: Multiband Dynamics

    About Effect Types ENHANCER Tab MULTIBAND DYNAMICS This regularizes the volume level for separate bands (low, midrange, and high). When MASTERING is selected, six tabs are displayed. EQ Tab ENHANCER ON Enhancer on/off SENS Amount of enhancer effect Frequency at which application of the enhancer FREQ effect starts Volume level of enhancer sound...
  • Page 154 About Effect Types EXPANDER Tab LIMITER Tab EXPANDER ON Expander on/off LIMITER ON Limiter on/off Interval until application of the expander Suppresses prominent distortion when extreme SOFT CLIP ATTACK effect starts after the input level falls below the compressor/limiter effect is applied threshold level Interval until application of the limiter effect Interval until application of the expander effect...

  • Page 155: Dynamic Eq

    About Effect Types DYNAMIC EQ This applies a compressor or expander around a specific frequency. You can make settings for four bands each for A and B. The operation procedures for A and B are the same. MEMO The center-frequency setting ranges for each band are as follows.

  • Page 156: Geq

    About GEQs GEQ EDIT window (GEQ) This M-5000 is equipped with 32 GEQ (graphic equalizer) systems In the GEQ EDIT window, you make settings for GEQ input and (monaural). Any one of them can be configured as output, parameters, and other such values. Some parts displayed in...

  • Page 157: Displaying The Geq Edit Window

    Displaying the GEQ EDIT Window Operating a GEQ Using the Knob Section To display the GEQ EDIT window, go to the HOME screen and tap Use <GEQ SEL 1> through <GEQ SEL 32> to select a GEQ <GEQ>. to work with. Use <GEQ OVERVIEW>...

  • Page 158: Operating A Geq Using The Faders (Geq On Fader)

    Use the faders to work with the range you selected in step Operating a GEQ Using the Faders (GEQ ON FADER) Use <GEQ SEL 1> through <GEQ SEL 32> to select a GEQ to work with. Memo When a fader is at a position other than 0 dB, the corresponding Set <ON FADER>...

  • Page 159: Returning Geq Settings To Their Default Values

    Returning GEQ Settings to Their Default Values Making a GEQ Group When you assign several GEQs to a GEQ group, the GEQs assigned Use <GEQ SEL 1> through <GEQ SEL 32> to select a GEQ to the same GEQ group have the same settings. to work with.

  • Page 160: Copying/Pasting Geq Settings

    Use <GEQ SEL 1> through <GEQ SEL 32> to select the GEQ Copying/Pasting GEQ Settings where you want to paste the settings. Use <GEQ SEL 1> through <GEQ SEL 32> to select a GEQ to copy. Go to the MENU window and tap <PASTE GEQ>. Go to the display section and press [MENU] button.

  • Page 161: Geq Edit Window (Peq)

    You perform the following operations in the parameter area. GEQ EDIT Window (PEQ) Some parts displayed in the window are different when the system is set to PEQ. GEQ SEL 1-32 MORE TYPE TYPE TYPE TYPE FREQ Center frequency Sharpness of the frequency-response curve TYPE Displays the Filter Type Selection popover.

  • Page 162: Operating A Peq Using The Knob Section

    Operating a PEQ Using the Knob Section Use <GEQ SEL 1> through <GEQ SEL 32> to select a GEQ to work with. Use <BAND 1-4> or <BAND 5-8> to select the range to work with using the knobs. Use the knob section to work with the range you selected in step 2.

  • Page 163: Top Panel (Display Region)

    Top Panel (Display Region) This chapter describes how to use the controls arranged in the upper half of the top panel, in the display region. In this chapter, the explanations are organized into the following sections. 5 “User-assignable Section” (p. 164) 5 “Monitor/Solo”...

  • Page 164: User-Assignable Section

    User-assignable Section Operate the knob or button to which you want to assign a About the User-assignable Section parameter. The user-assignable section has four knobs and eight buttons, which you can assign to parameters of your choosing and display on the top panel. The user-assignable section also has three banks, letting you work with more parameters by switching among them.

  • Page 165: User Assignable Window

    User-assignable Section Press the [DISP] button. USER ASSIGNABLE Window Pressing the [DISP] button in the user-assignable section displays the USER ASSIGNABLE window. In the USER ASSIGNABLE window, you can change the LABELs (parameter names) and knob or button colors shown on the user- assignable display, and clear parameter assignments.

  • Page 166: User-Assignable Section Of The Top Panel

    User-assignable Section User-assignable Section of the Top Panel This section is for assigning and working with parameters of your choosing. User-assignable display [A]–[D] knob [ 1 ] –[8] buton [BANK 1]– [DISP] button [BANK 3] button Name Description User-assignable display This displays the parameters assigned to assignable knobs/buttons.

  • Page 167: Monitor/Solo

    “Monitor” is a function that takes an input channel or output bus selected as the monitor source and outputs it to an output connector or headphones for monitoring. The M-5000 is equipped with a monitor function that supports up to 5.1 channels, for an extremely high degree of freedom.

  • Page 168: Monitor/Solo Block Diagram

    Monitor/Solo Monitor/Solo Block Diagram SOLO PATCHBAY SOLO 1 SOLO 1 L TRIM SOLO 1 R SOLO 1 ENABLE TB RTN MONITOR 1 (5.1 MODE) MONITOR 1 TB / GPI KNOB / FADER LEVEL ALIGNMENT LISTEN MODE MON 1 L φ MUTE DELAY LEVEL...

  • Page 169: Monitor Window

    Monitor/Solo TRIM Adjusts the solo level. You can register 18 input channels/output buses you want to input to a monitor. This selects one of those and sends it to the monitor. SOURCE SELECTOR Output-bus monitoring uses the POST FDR signal, and input-channel monitoring uses the CH TOP signal. Selects from among the following as the mode for monitor output.

  • Page 170: Displaying The Monitor Window

    Monitor/Solo Displaying the MONITOR Window MONITOR 1/2 SETUP Window To display the MONITOR window, go to the monitor section on the top panel and press the [DISP] button. MON 1/MON 2 Tabs Turning this on outputs SOLO 1/2 to MONITOR MIX SOLO 1/2 1/2.

  • Page 171: Solo Tab

    Monitor/Solo Selecting the Monitor Source Displayed for SOURCE SOLO Tab SELECTOR In the MONITOR 1/2 SETUP window, tap <SOURCE SELECTOR ASSIGN> for the setting you want to change. Press the [SEL] button for the input channel or output bus you want to set. Tapping <CLEAR>...

  • Page 172: Headphones Tab

    Monitor/Solo HEADPHONES Tab MUTE Mutes headphones. Turns dimmer on/off. Lowers and outputs headphones output by the amount set using <DIM LEV>. Selects the headphones source from among the following. HP SOURCE 5 MON 1 5 MON 2 TB RTN LEV Talkback return level TB RTN MIX Turns talkback return on/off.

  • Page 173: Monitor Section Of The Top Panel

    Monitor/Solo Monitor Section of the Top Panel You can use the top panel’s monitor section to operate monitors. Number Name Description [DISP] button This displays the MONITOR window. This turns Solo in Place on and off. To turn on Solo in Place, press and hold this button for 2 seconds. It flashes when on.

  • Page 174: Scene Memory

    The following parameters are stored in scenes. Scene memory is a function that lets you store mixer parameters 5 Input patchbay as a scene, and recall them when desired. On the M-5000, you can 5 Output patchbay store up to 300 scenes.

  • Page 175: Scene Section Of The Top Panel

    Scene Memory Storing a Scene (by Overwriting) Scene Section of the Top Panel [SELECT H]/ Go to the scene section on the top panel and press the [SELECT H] or [SELECT I] button to select the number of [SELECT I] button the scene you want to store.

  • Page 176: Scene Window

    Scene Memory Selected Scene, Current Scene SCENE Window You organize and manage scene memories in the SCENE window. CURRENT SCENE PREV SCENE SELECTED SCENE NEXT SCENE The scene previous to the currently selected PREV SCENE scene (excluding scenes for which skip is on) SELECTED SCENE The currently selected scene The next scene after the currently selected scene...

  • Page 177: Prohibiting Editing For The Scene (Lock)

    Scene Memory Prohibiting Editing for the Scene (Lock) GLOBAL SCOPE Window Locked scenes cannot be stored, deleted or renamed. In the GLOBAL SCOPE window, you set the recall range for all scene memories. To turn on lock for a scene, go to the SCENE window and tap <LOCK>.

  • Page 178: Recall Parameter Window

    Scene Memory RECALL PARAMETER Window Recall Parameter List In the RECALL PARAMETER window, you set the recall range for To set a range to recall, using Recall parameter list. individual scenes. The information displayed changes as shown below depending To display the RECALL PARAMETER window, go to the SCENE on what tab has been selected at the GLOBAL SCOPE window or window and tap <FILT>.
  • Page 179 Scene Memory DCA/BUS tab FX/GEQ/INS tab The further tabs are displayed on the DCA/BUS tab. The further tabs are displayed on the FX/GEQ/INS tab. 5 DCA 5 FX 5 MAIN 5 GEQ 5 SUBGROUP 5 INSERT 5 AUX Channel number/Channel name 5 MTX INPUT 5 MTX 5 MIX-MINUS...

  • Page 180: Usb Memory Recorder

    * Before using USB flash drives for this unit, please format the USB Song list flash drives on this unit. 0“Formatting a USB Flash Drive on the M-5000” (p. 202) WAV File Formats The formats of recordable WAV files are as follows.

  • Page 181: Song List

    USB Memory Recorder Song list Turning on the checkbox lets you delete WAV files. CHECKBOX (You can not select multiple items.) The sequence in which WAV files are played back (alphabetical order) NAME WAV file name LENGTH WAV file length (time) FORMAT WAV file format MODIFIED...

  • Page 182: Recording/Playback To/From A Usb Flash Drive

    USB Memory Recorder Playback from a USB Flash Drive Recording/Playback to/from a USB Flash Drive Go to the recorder section on the top panel and press the [DISP] button. The RECORDER window appears. Recording to a USB Flash Drive Tap <PLAYBACK>. The DESTINATION popover appears.

  • Page 183: Talkback/Oscillator

    The following two tabs appear. performers, stage managers, or staff. The M-5000 has three talkback systems, TALK 1 through 3, and each can individually be assigned to Here you make settings for talkback and talkback different outputs and set on or off.

  • Page 184: Talkback/Osc Window Talkback Tab

    Talkback/Oscillator TALKBACK RETURN TALKBACK/OSC Window TALKBACK Tab TALKBACK INPUT METER Input-connector input level Selects the input connector to use for talkback RETURN MIC return. +48V Turns input-connector phantom power on/off. These send talkback to the output destinations HPF slope characteristics assigned to TALK 1 through TALK 3.

  • Page 185: Talkback/Osc Window Osc Tab

    Talkback/Oscillator TALKBACK/OSC Window OSC Tab Talkback Section of the Top Panel TALKBACK MIC 1 [LEVEL] knob [DISP] button PINK Outputs pink noise from the oscillator. [TALK 1]-[TALK 3] WHITE Outputs white noise from the oscillator. button SINE Outputs a sine wave from the oscillator. Outputs a 31-band multi-sine wave from the MULTI oscillator.

  • Page 187: Menu Window

    MENU Window Up to this point we have covered basic mixing operations. The M-5000 has a variety of other functions as well, and you access these from the MENU window. The MENU window is the gateway to expansive functions. In this chapter, the explanations are organized into the following sections.

  • Page 188: Menu Window

    Settings at the CH EDIT Window” (p. 114) 0“Copying/Pasting GEQ Settings” (p. 160) UNDO Clears the level meter’s peak hold or “over” PEAK CLEAR indication. SECURITY Locks the M-5000, preventing operation. 0“Locking the Console to Prevent Operation” LOCK CONSOLE (p. 192)

  • Page 189: Using A Matrix

    Using a MATRIX MATRIX processes audio sent from input channels and output Tapping an individual element lets you manipulate the following buses, and outputs it to OUTPUT PATCHBAY. parameters using the selected knob/button. In the MATRIX INPUT window, you select input channels or output Send level buses to send to MATRIX and adjust the send levels.

  • Page 190: Adjusting The Send Level To Matrix

    Using a MATRIX Adjusting the Send Level to MATRIX Tap <IN 1> through <IN (n)>, then select the input channel or output bus you want to input to MATRIX. Tap the location where the desired MATRIX column and the desired input channel/output bus row intersect. In the top panel’s display section, press the selected button to turn on sending to MATRIX.

  • Page 191: Mute Groups

    To display the MUTE GROUP MASTER window, go to the MENU window and tap <MUTE GROUP>. NAME MUTE GROUP LIST Mutes all outputs of the M-5000 and input/ MUTE ALL OUTPUTS output units. Displays the MUTE GROUP name and MUTE GROUP color.

  • Page 192: Locking The Console To Prevent Operation

    Locking the Console to Prevent Operation You can lock the console to prevent it from being operated. Unlocking the Console Memo If you turn off the power while the console is locked, the console To unlock the console, tap <UNLOCK>. is unlocked the next time you turn on the power.

  • Page 193: Setup Window

    SETUP Window In the SETUP window, you can display screens for making configuration settings for the M-5000, such as changing the mixer configuration, organizing and managing projects, and initializing the unit. In this chapter, the explanations are organized into the following sections.

  • Page 194: Setup Window

    SETUP Window To display the SETUP window, go to the MENU window and tap <SETUP>. 0“MENU Window” (p. 187) Displays the MIXER CONFIGURATION window. MIXER 0“Changing the Number of Input Channels/ CONFIGURATION Output Buses” (p. 79) Displays the ARRANGE CHANNEL window. 0“Rearranging Input Channels/Output Buses”...

  • Page 195: Inserting External Effects Devices

    LEVEL TO PATCHBAY You can connect external effects devices to input and output connectors on the M-5000 and on input and output units connected to the M-5000, and insert the devices into input channels, output buses, and monitors. You make the settings for inserting external effects devices in the INSERT SETTINGS window.
  • Page 196 Inserting External Effects Devices Use <SEND> or <RETURN> to adjust the input or output level as needed. Tap the parameter you want to work with, then use the selected knob/button to manipulate it. Tap <INSERT>, then select the input channel, output bus, or monitor for inserting the external effects device.

  • Page 197: Channel Link

    Channel link is a function that makes specific input channels or buses specified for a single channel link. output buses have the same parameters. PREAMP Preamp settings The M-5000 has 12 channel links. FILTER HPF, LPF DYN 1 Dynamics 1(Excludes the key-in)
  • Page 198 Channel Link Press the [SEL] button for the input channel or output bus you want to assign to the channel link. The input channel or output bus is assigned to the channel link. From the parameter list, select the parameters to link. Tap <OK>.

  • Page 199: Projects

    About Projects The data saved in projects is sectionalized as shown below, and you The settings you create by operating the M-5000 are stored in the can manage the data by section. unit as project data. You can save and organize these on a USB flash drive as project files (file extension: m5pj).

  • Page 200: Project Window

    0“Entering Text” (p. 69) SIZE Sizes of the project files Formats the USB flash drive. 0“Formatting a USB Flash Drive on the M-5000” Date and time when the project file was last FORMAT MODIFIED edited (p. 202) Loads a project file.

  • Page 201: Working With Projects

    Projects Loading a Project File Working with Projects You load project files from a USB flash drive. When you load a file, you can select individual sections of data to Saving a Project File load. Display the PROJECT window. You save project files on a USB flash drive. When you save a file, the data in all categories is saved.

  • Page 202: Formatting A Usb Flash Drive On The M-5000

    Projects Formatting a USB Flash Drive on the M-5000 Display the PROJECT window. Tap <FORMAT>. A popup prompting you to confirm the operation is displayed. Tap <FORMAT>. Formatting of the USB flash drive starts.

  • Page 203: Initializing Mixer Parameter

    Initialization starts. When the message “Completed. ” appears, initialization is finished. INPUT CH NOTE Input channel parameter PARAMETER Never turn off the power to the M-5000 before initialization INPUT CH PATCH Input channel patchbay finishes. BUS PARAMETER Bus parameter BUS PATCH...

  • Page 205: System Window

    SYSTEM Window In the SYSTEM window, you can display screens for changing the M-5000’s system settings. In this chapter, the explanations are organized into the following sections. 5 “SYSTEM Window” (p. 206) 5 “Changing the Preferences for the User Interface” (p. 207) 5 “Adjusting the Brightness of the Top Panel and Touch Sensitivity”...

  • Page 206: System Window

    SYSTEM Window In the SYSTEM window, you can display screens for changing the Displays the PREFERENCES window. M-5000’s system settings. Here you can change your preferences for the PREFERENCES user interface. To display the SYSTEM window, go to the MENU window and tap 0“Changing the Preferences for the User...

  • Page 207: Changing The Preferences For The User Interface

    When this is on, a confirmation popup appears PATCHBAY CHANGE when you change the input/output patchbay. BUTTON When the [SOLO] button is pressed, the [SEL] follows [SOLO] M-5000 behaves as if the [SEL] button was also simultaneously pressed.

  • Page 208: Adjusting The Brightness Of The Top Panel And Touch Sensitivity

    Adjust SENSITIVITY until you achieve the intended touch detection. Memo Depending on the environment where the M-5000 is used, fader touch sense may fail to function effectively, leading to incorrect fader operation (especially during times of high humidity). At such times, press <CALIBRATE TOUCH SENS>.

  • Page 209: Other Options

    Other Options In the OPTION window, you make settings for other options. OPTION Window To display the OPTION window, go to the SYSTEM window and tap <OPTION>. CH-MUTE OPTION When an input channel is muted, sends to AUX AUX SENDS are also muted.

  • Page 210: Downmix Settings

    In the DOWNMIX SETTINGS window, you can specify a factor for downmixing from a large number of channels to a smaller number of channels. The M-5000 performs downmixing in a wide variety of situations. For example, downmixing is done when monitoring 5.1 channels or LCR using headphones.

  • Page 211: Settings For The Word Clock

    The word clock is a synchronizing signal for digital-audio signals. Display the WORD CLOCK window. This is used in the M-5000’s internal digital signal processing and in the transmission of digital-audio signals between devices. Tap <SAMPLING FREQ> and select a sampling frequency.

  • Page 212: Settings For The Reac Ports And Expansion Slots

    Settings for the REAC Ports and Expansion Slots In the REAC / SLOT window, you make the settings for expansion About the REAC SPLIT/BACKUP Port interfaces attached to the REAC ports and expansion slots. * When restarting the unit with the expansion interface installed, wait for about one second before you turn on the power.

  • Page 213: Restrictions In Use With The M-48 At 96Khz

    When the sampling rate is set at 96 kHz, the number of audio channel that a REAC slave device present at the REAC port where the M-48 is connected can send to the M-5000 is 32. Sending more than 32 channels produces noise.
  • Page 214 M-48 is connected, and so no noise is produced. S-4000S-4000 S-4000S-4000 REAC SLAVE REAC SLAVE /40ch/96kHz /40ch/96kHz M-48 M-48 S-4000D S-4000D REAC A REAC B REAC A (or B) REAC SPLIT/BACLKUP MASTER MASTER MASTER M-5000 96kHz M-5000 96kHz REAC MASTER REAC MASTER...

  • Page 215: Remote Control

    In the MIDI window, you make settings for MIDI and USB MIDI. To display the MIDI window, go to the SYSTEM window and tap <REMOTE>, then tap <MIDI>. Sets the M-5000’s device ID. DEVICE ID This is setting is shared by MIDI and USB MIDI.

  • Page 216: Fader Calibration

    Fader Calibration If the fader positions are no longer aligned with the index markings of the top panel, carry out fader calibration to adjust. Press the [MENU] button. On the MENU window, tap <SYSTEM>, then tap <FADER CALIBRATION>. The FADER CALIBRATION window appears. Tap an item from <-INF>...

  • Page 217: Updating The Unit

    When expansion ends, a folder containing the updater appears. Copy the updater to the root directory of a USB flash drive. Start the M-5000 and insert the flash drive into its USB MEMORY connector. In the SYSTEM window, tap <UPDATE>.

  • Page 218: Viewing The Information About The Unit

    Status of the lithium battery LITHIUM BATTERY The voltage is displayed in parentheses. SIDE FAN Status of the cooling fan on the side of the M-5000 INSIDE FAN Status of the cooling fan inside the M-5000 LICENSE License information of software...

  • Page 219: Data

    Data...

  • Page 220: Appendix

    LAMP jacks: XLR-4-31 type x 2, LAMP power: DC +12 V/500 mA EXT.POWER DC IN jack: XLR-4-32 type * XLR type: 1 GND, 2 HOT, 3 COLD Roland M-5000: LIVE MIXING CONSOLE * Phantom power: DC +48 V (unloaded maximum), 14 mA (maximum load) (All XLR type inputs)
  • Page 221 Appendix Accessories Owner’s manual Power cord Dock cable REAC connector cover x 3 Ferrite core x 6 Tablet sheet x 2 Cover * 0 dBu = 0.775 Vrms * In the interest of product improvement, the specifications and/ or appearance of this unit are subject to change without prior notice.

  • Page 222: Connecting To Your Computer Via Usb

    In order to connect to your computer via USB, you must first install the USB driver in your computer.The M-5000’s dedicated driver can be downloaded from the Roland website. Refer to the Roland website for details on the operating requirements.

  • Page 223: Adjusting The Detection Position Of The Touch Display

    Adjusting the Detection Position of the Touch Display If the detection position of tap operations is inaccurate depending on the person operating the touch display or the location of the operation, use the following method to adjust the detection position. Hold down the [MENU] and [VIEW] buttons in the top panel’s display section and turn on the power.

  • Page 224: Factory Reset

    Factory Reset This initializes the M-5000, returning it to its factory-default state. NOTE Performing initialization causes all data to be lost. Data that is needed can be saved to a USB flash drive. 0“Backing Up All Data in the M-5000” (p. 59) 0“Restoring All Data in the M-5000”...

  • Page 225: Dimensions

    Dimensions...

  • Page 226: Block Diagram

    Block Diagram INPUT PATCHBAY INPUT CHANNEL (MONO or STEREO) DYN/EQ CH TOP POST D.GAIN PRE FDR POST FDR TO MAIN (5.1, LCR, or LR) EQ/DYN REAC A 5.1 SURROUND PAN 6, 3, 2 4-BAND φ D.GAIN DYN 1 DYN 2 DELAY FADER MUTE...
  • Page 227 Block Diagram OUTPUT PATCHBAY MAIN (5.1, LCR or LR), MIX-MINUS (MONO or STEREO) DYN/EQ CH TOP POST D.GAIN PRE FDR POST FDR EQ/DYN MAIN OUT MIX-MINUS OUT φ 4-BAND REAC A BUS TRIM D.GAIN DYN 1 DYN 2 DELAY FADER MUTE TO SOLO SOLO...

  • Page 228: Block Diagram Of Monitor Section

    Block Diagram Block Diagram of Monitor Section SOLO PATCHBAY SOLO 1 SOLO 1 L TRIM SOLO 1 R SOLO 1 ENABLE TB RTN MONITOR 1 (5.1 MODE) MONITOR 1 TB / GPI KNOB / FADER LEVEL ALIGNMENT LISTEN MODE MON 1 L φ...

  • Page 229: Additional Features Currently Under Development

    Additional Features Currently Under Development Following features will be available by future version upgrade. 5 iPad app 5 Remote Control Software (Win/Mac) 5 M-48 manager 5 GPIO 5 RS-232C/TELNET 5 MIDI/V-LINK 5 R-1000 control 5 Key-In SOLO 5 S-4000M configuration...

Table of Contents
