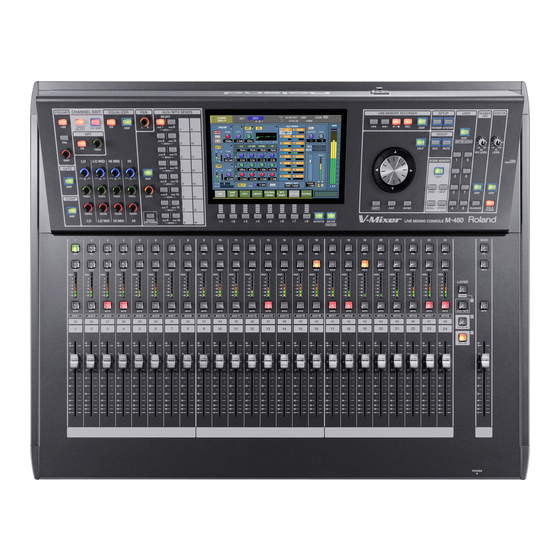

Functionality Added in M-480 Ver. 1.6
The functions below have been added in the version 1.6 system software of the M-480.
Wireless LAN Function
The wireless LAN function has been added. This enables the M-480 to receive remote control from the dedicated iPad application
(M-480 Remote).
Expanded User Settings (p. 10)
The user settings below have been newly added.
• The M-480 can be set to always boot in GUEST mode regardless of the previous settings.
• You can edit the user level to prohibit more operations.
About the Wireless LAN Function
What is Wireless LAN Function?
By inserting the wireless USB Adapter (WNA1100-RL; sold separately) into the M-480's USB MEMORY port, you will be able to use
wireless-compatible applications (such as the "M-480 Remote" iPad app).

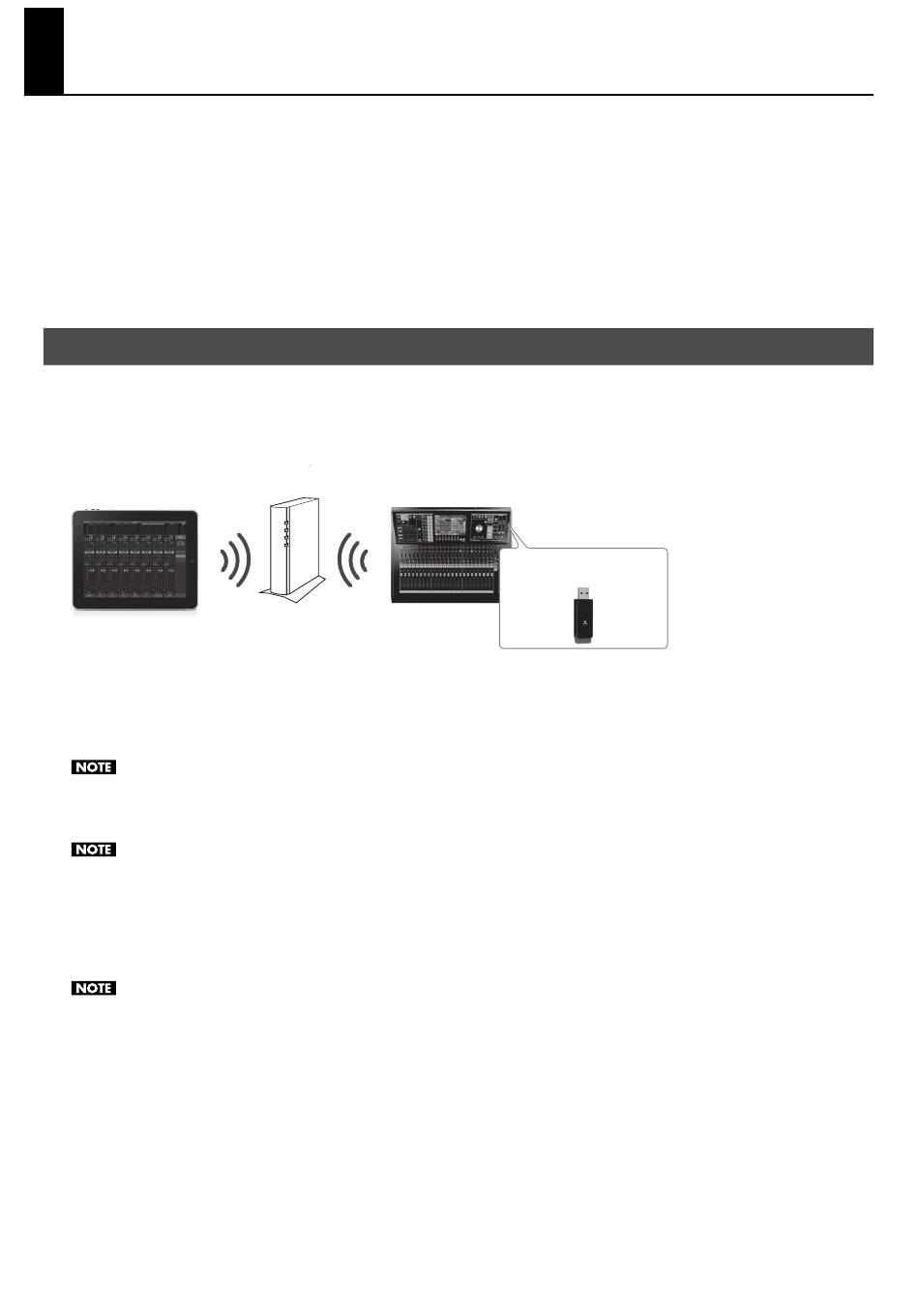

fig.wireless-connect-image-E.eps
iPad (M-480 Remote)
Wireless LAN
Items required to use the wireless LAN function
• Wireless USB Adapter (sold separately: WNA1100-RL)
• Wireless LAN access point (e.g., wireless LAN router. Not required if using in ad-hoc mode.)
• iPad with M-480 Remote app loaded.
You cannot connect multiple iPad units simultaneously.
Cautions About Connection
Cautions About Wireless LAN Access Point
• The wireless LAN access point you use should support WPS.
• If your wireless LAN access point does not support WPS, you can connect using the procedure described in "Connecting to a Wireless LAN
Access Point That You Select" (p. 6).
• The ability to connect with any wireless LAN access points is not guaranteed.
• If you are unable to connect to the wireless LAN access point, try connecting using Ad-Hoc mode (p. 7).
Caution About M-480 RCS
While the wireless LAN function is enabled, it is not possible to connect with the M-480 RCS. The wireless LAN function is enabled
if "Enable Wireless LAN" is checked in the system setup screen (p. 3). If you are connecting the M480 RCS, make sure the wireless
LAN function is disabled.
Copyright © 2012 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
* All product names mentioned in this document are trademarks or registered trademarks of their respective owners.
Wireless LAN access point
(e.g., wireless LAN router)
Wireless LAN
M-480
Wireless USB adaptor
(sold separetely : WNA1100-RL)
1PS
1
