9.10 UPPER SEAT FRAME REPLACEMENT

1) Remove the seat pad as outlined in Section 9.6.
2) Remove the back pad as outlined in Section 9.7.
3) Disconnect and remove the HR handlebar as outlined in Section 9.8.
4) Remove the 4 screws holding the upper seat frame to the lower seat frame (Figure A).
5) Remove the upper seat frame from the lower seat frame (Figure B).
6) Reverse Steps 1-5 to install a new seat frame.
7) Test the bike for function as outlined in Section 9.23.
46
CHAPTER 9: PART REPLACEMENT GUIDE

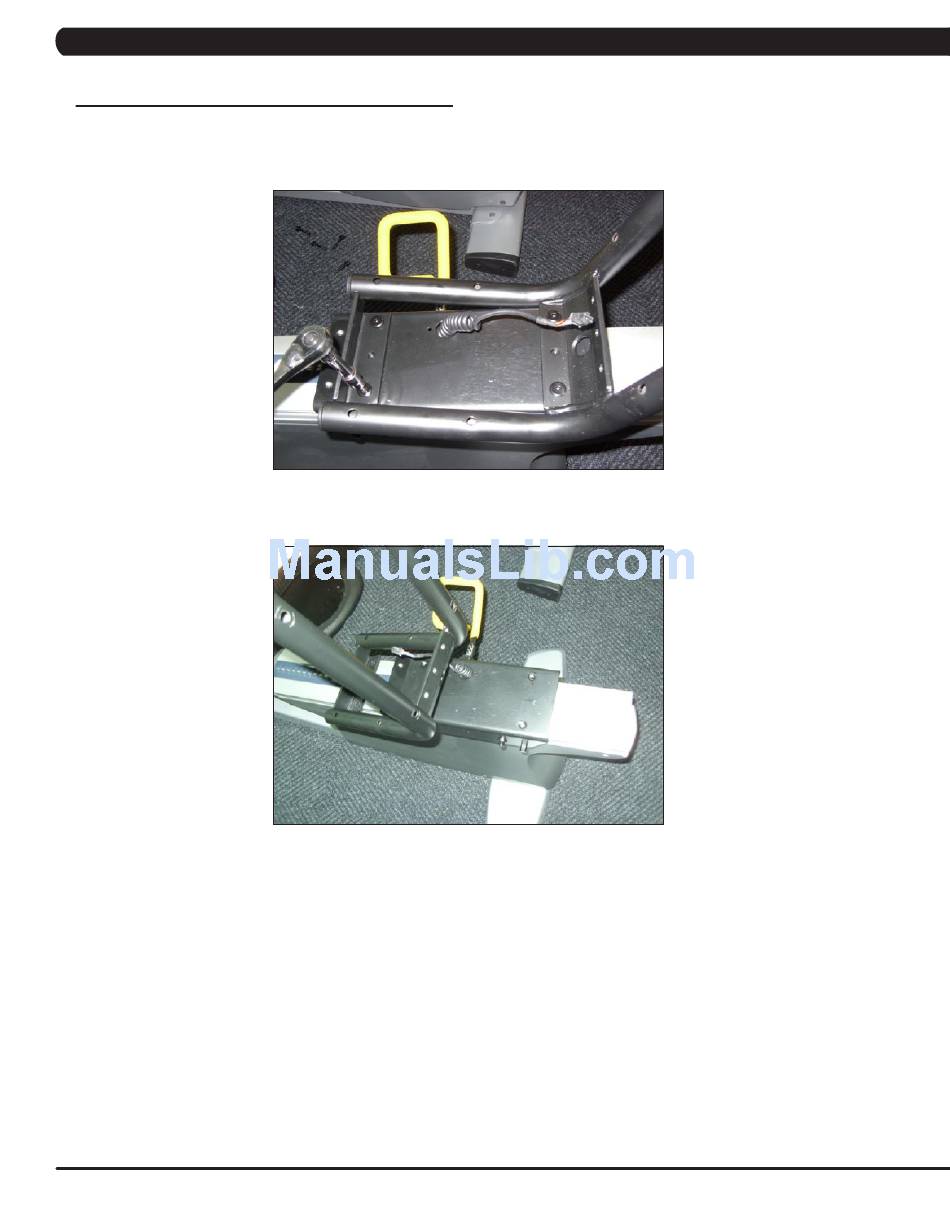

FIGURE A
FIGURE B
