Matrix R3XE-01 Service Manual page 62

CHAPTER 9: PART REPLACEMENT GUIDE
9.21 PULLEY AXLE SET REPLACEMENT - CONTINUED
6) Remove the bearing (Figure E).
7) Remove the large nut holding in the pulley axle assembly with a large channel lock pliers or a pipe wrench (Figure F).

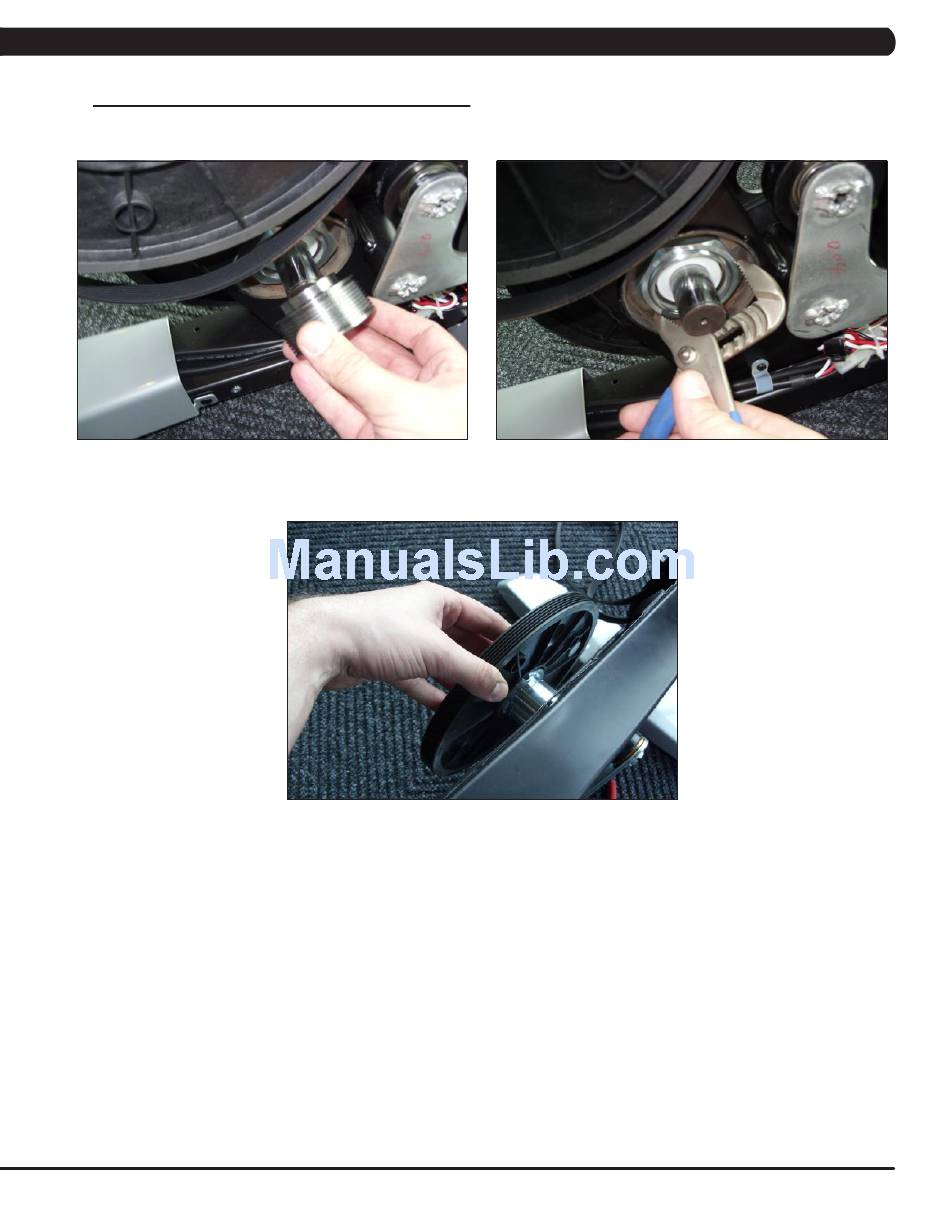

FIGURE E FIGURE F
8) Once the large nut is removed, the pulley axle set can be removed from the left side of the frame (Figure G).
FIGURE G
9) Reverse Steps 1-8 to install a new pulley axle set.
10) Test the bike for function as outlined in Section 9.23.
