9.5 CONSOLE MAST REPLACEMENT

1) Remove the console as outlined in Section 9.1.
2) Remove the HR handlebars as outlined in Section 9.2.

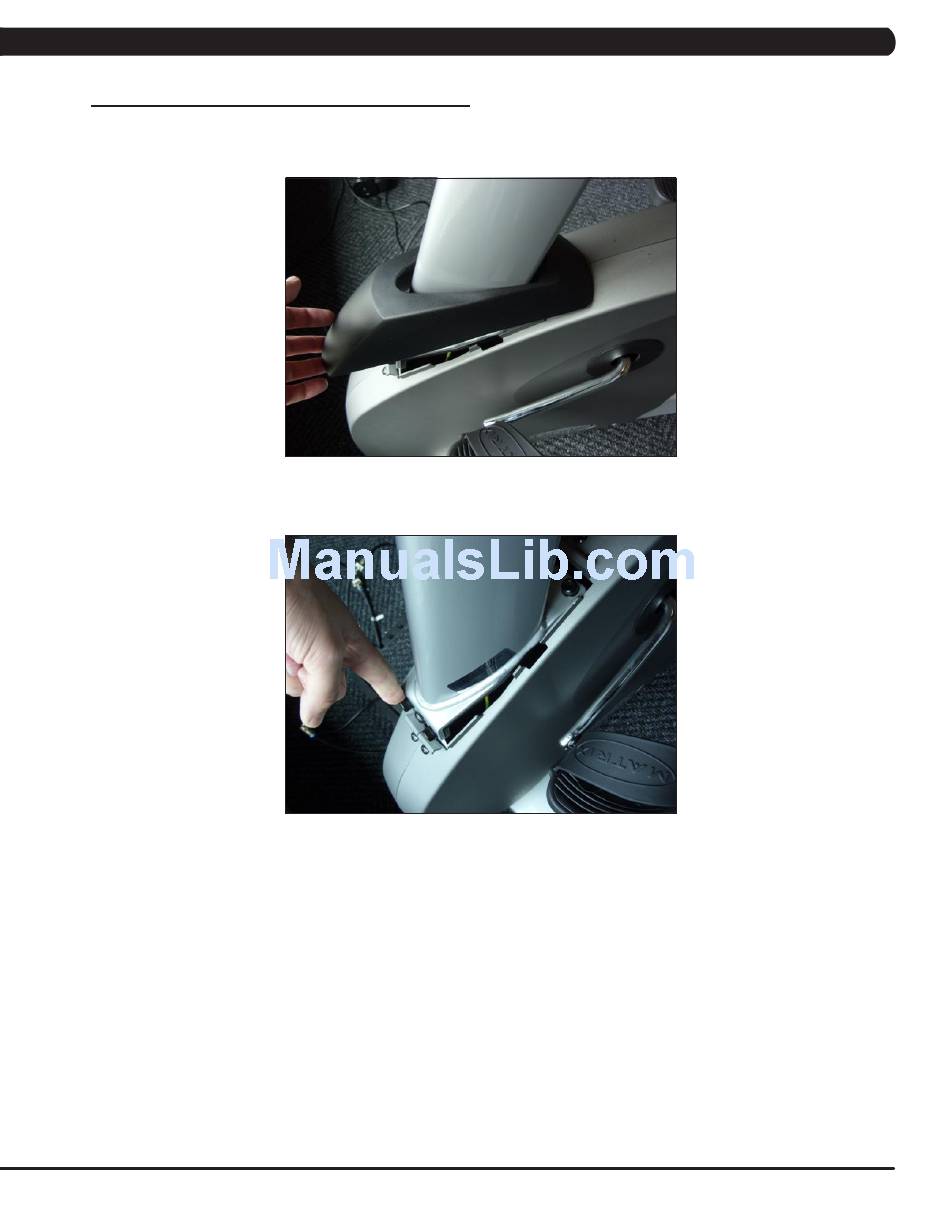

3) Lift up the rubber boot at the bottom of the console mast (Figure A).
4) With the rubber boot lifted, remove the 4 screws holding the console mast to the frame (Figure B).
5) Pull the wires out the bottom of the console mast and remove the mast.
6) Reverse Steps 1-5 to install a new console mast. NOTE: When installing a new console mast, be sure to pull the console wires up through
the new mast prior to installing the 4 screws into the frame.
7) Test the bike for function as outlined in Section 9.23.
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE A
FIGURE B
