Matrix R3XE-01 Service Manual page 43

CHAPTER 9: PART REPLACEMENT GUIDE
9.4 CONSOLE KEYPAD / OVERLAY REPLACEMENT - CONTINUED

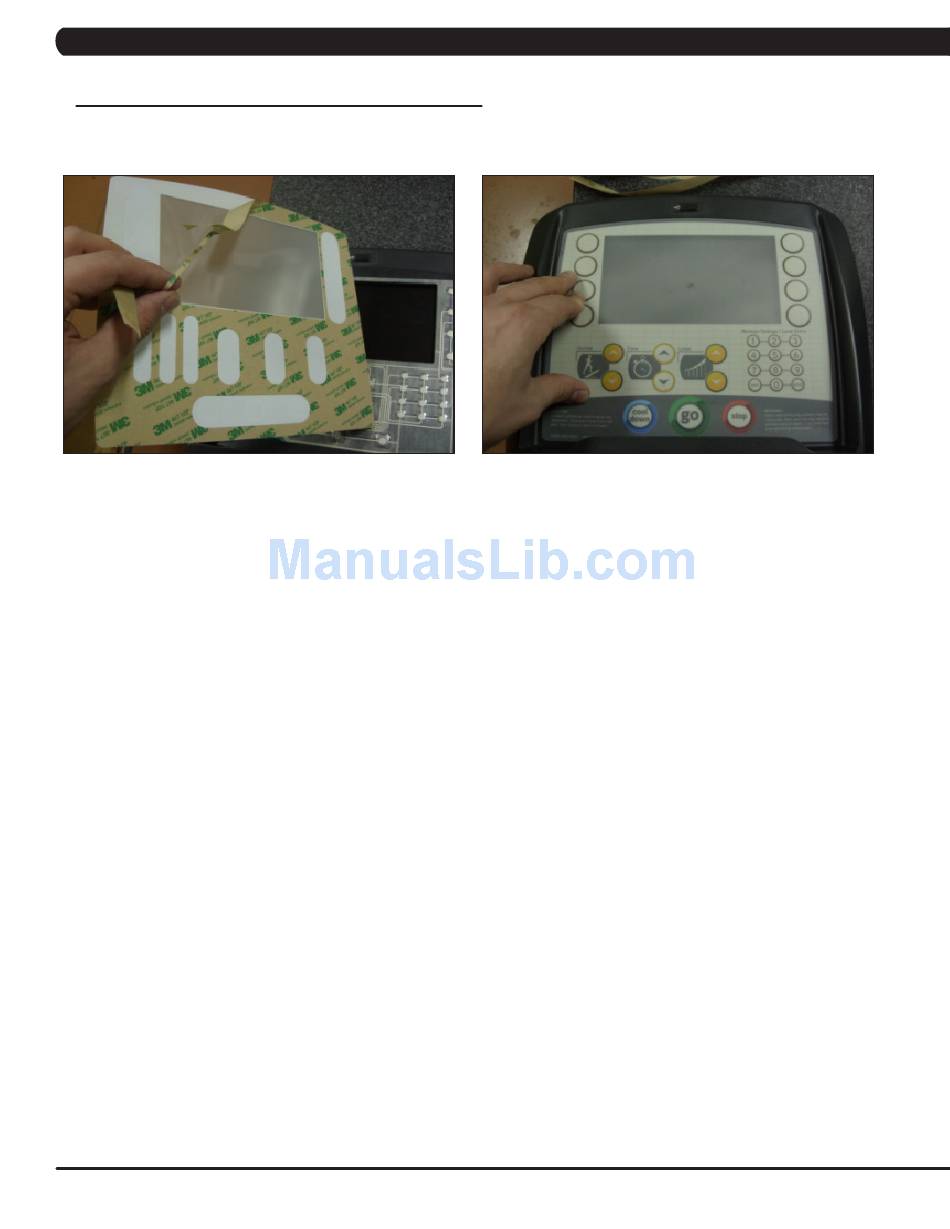

10) Peel the backing off of the new overlay (Figure L).
11) Carefully line up the new overlay to the outline in the console faceplate. Once it is in place, press down on the overlay so that the adhesive
on the overlay bonds to the keypad (Figure M).
FIGURE M
FIGURE L
12) Reverse Steps 1-3 to re-assemble the console.
13) Test the bike for function as outlined in Section 9.23.
