Matrix R3XE-01 Service Manual page 80

11.1 SOFTWARE UPGRADE INSTRUCTIONS - CONTINUED

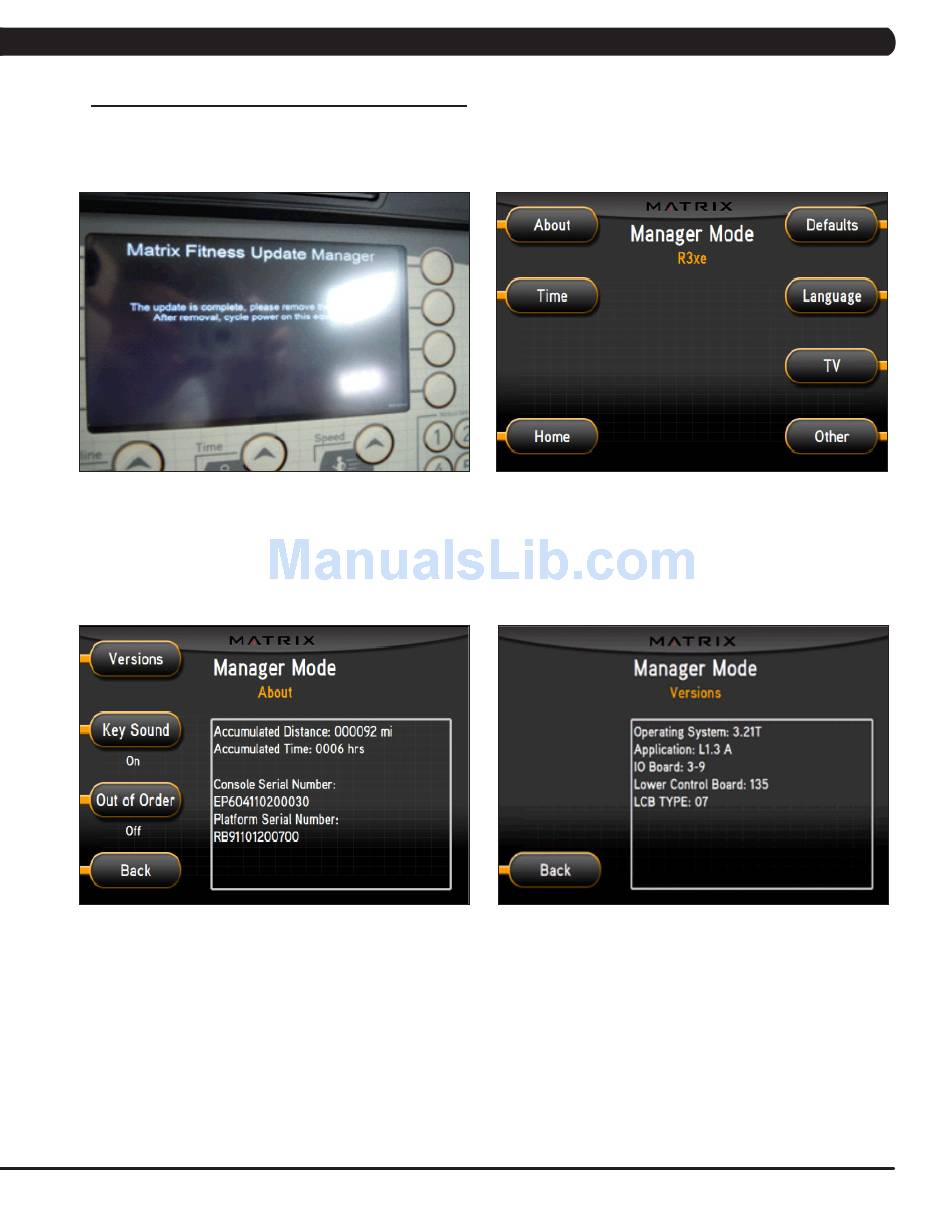

5) When the update is complete, the display will ask you to remove the USB drive (Figure E). Once the USB is removed, the bike should
reboot immediately. NOTE: If the console does not reboot normally, reset the unit power using the power switch. Also reset the console power
by pressing and holding the CHANNEL UP and DOWN keys together for 3-5 seconds. Update the software again if problems persist.
6) Press ENTER, 1, 0, 0, 1, ENTER on the upper keypad to enter Manager Mode, then press the key next to ABOUT (Figure F).
FIGURE E
7) Press the key next to VERSIONS to verify the new software version (Figure G).
8) All of the software versions will now be displayed (Figure H). Press the HOME key to return to the standard display picture.
9) Press ENTER, 3, 0, 0, 1, ENTER to go into Service Mode. Check to see if the Machine Type is correct. If the Machine Type is not correct,
press ENTER, 3, 0, 0, 2, ENTER. This will do a software parameter reset. Then change the Machine Type. Once the Machine Type is
changed cycle unit and console power. Press the HOME key to return to the standard display picture if the Machine Type is correct.
FIGURE G
CHAPTER 11: SOFTWARE UPGRADE GUIDE
FIGURE F
FIGURE H
77
