9.2 HANDLEBAR REPLACEMENT

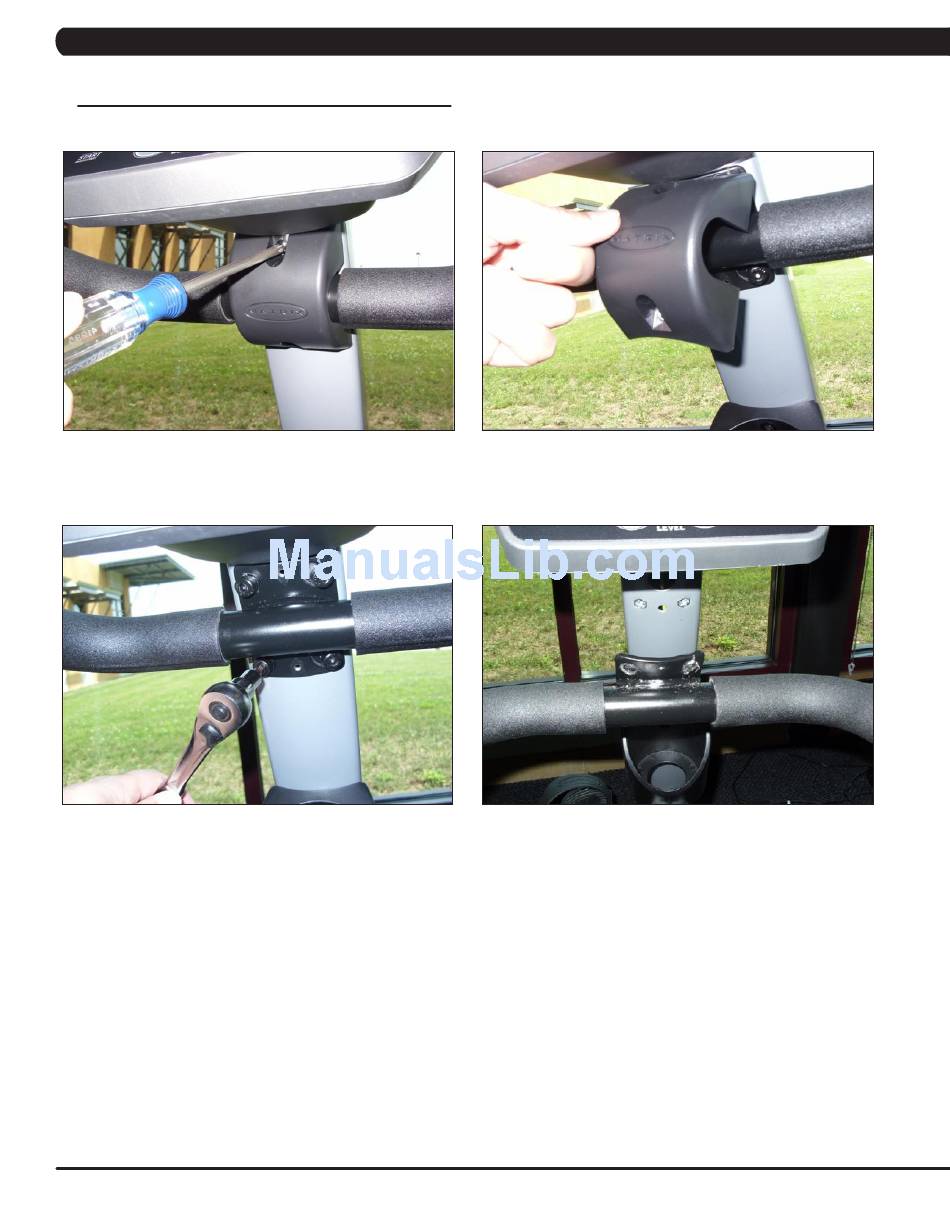

1) Remove the 2 screws holding on the handlebar cover (Figures A & B).
2) Remove the 4 screws holding the heart rate handlebar to the console mast being careful to support the handlebar (Figure C).
3) Remove the defective handlebar (Figure D).
4) Reverse Steps 1-3 to install a new handlebar.
36
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE A
FIGURE C
FIGURE B
FIGURE D
