CHAPTER 9: PART REPLACEMENT GUIDE
9.9 HEART RATE GRIPS REPLACEMENT

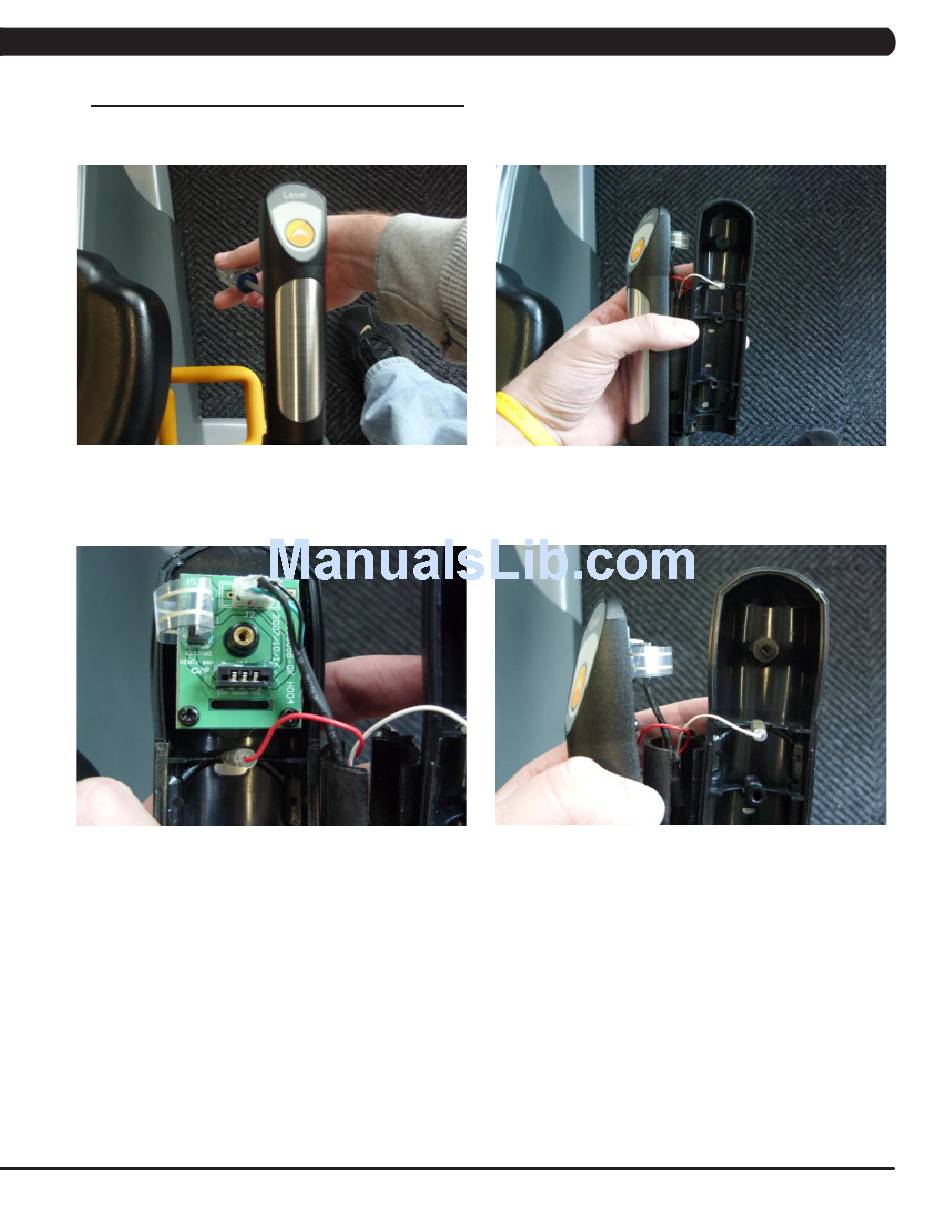

1) Remove the 3 screws holding the HR grip together (Figure A).
2) Once the 3 screws are removed, the HR grip can be split into 2 pieces (Figure B).
FIGURE A FIGURE B
3) Disconnect the keypad / overlay and the HR plate wiring and remove the old HR grip (Figure C).
4) Reverse Steps 1-3 to install new HR grips. The white wire should be on the back side HR plate, the red wire on the front (Figure D).
FIGURE C
FIGURE D
5) Test the Bike for function as outlined in Section 9.23.
