CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE

10.6 TV BRACKET INSTALLATION

The Matrix R3xe-01 Bike is capable of accepting a 15" TV via a bracket. Follow the instructions below to
install the TV and bracket. Use the instructions in the Entertainment Owner's Manual to program the TV
1) Turn off power and disconnect the power cord.
2) Remove the console from the bike.

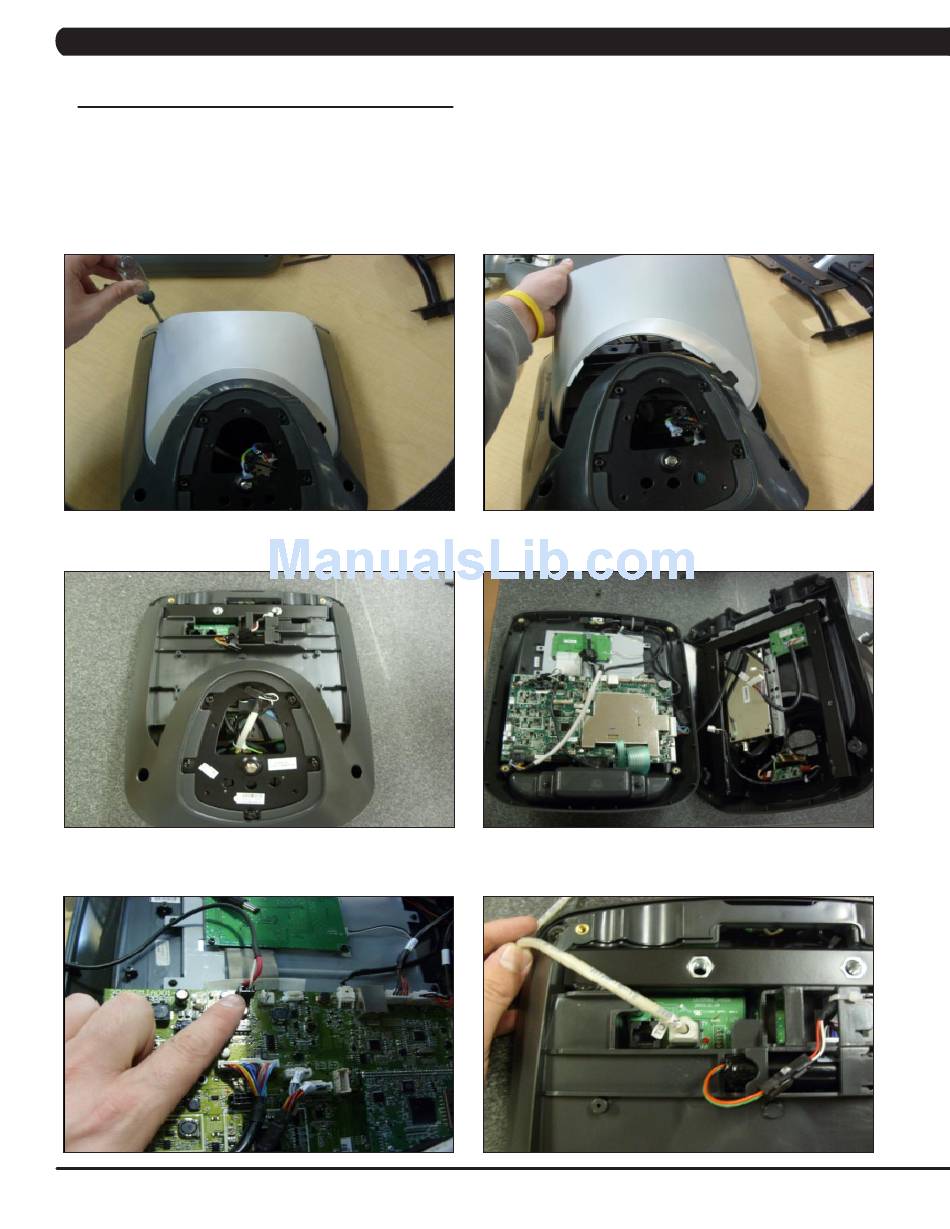

3) Remove the 2 screws holding the small silver back cover to the console and remove the back cover (Figures A & B).
4) Remove the 4 screws holding the rear half of the console to the front half and split the console (Figures C & D).
5) Plug the TV power wire into the UCB (Figure E).
6) Plug the TV controller wire into the UCB (Figure F).
70
FIGURE A
FIGURE C
FIGURE E
after installation.
FIGURE B
FIGURE D
FIGURE F
