The Analog Adjunct jack and the RS-232-D jack, shown in Figure 3, are located on the rear of
the voice terminal.
Analog Adjunct jack
RS-232-D jack
Analog Adjunct jack

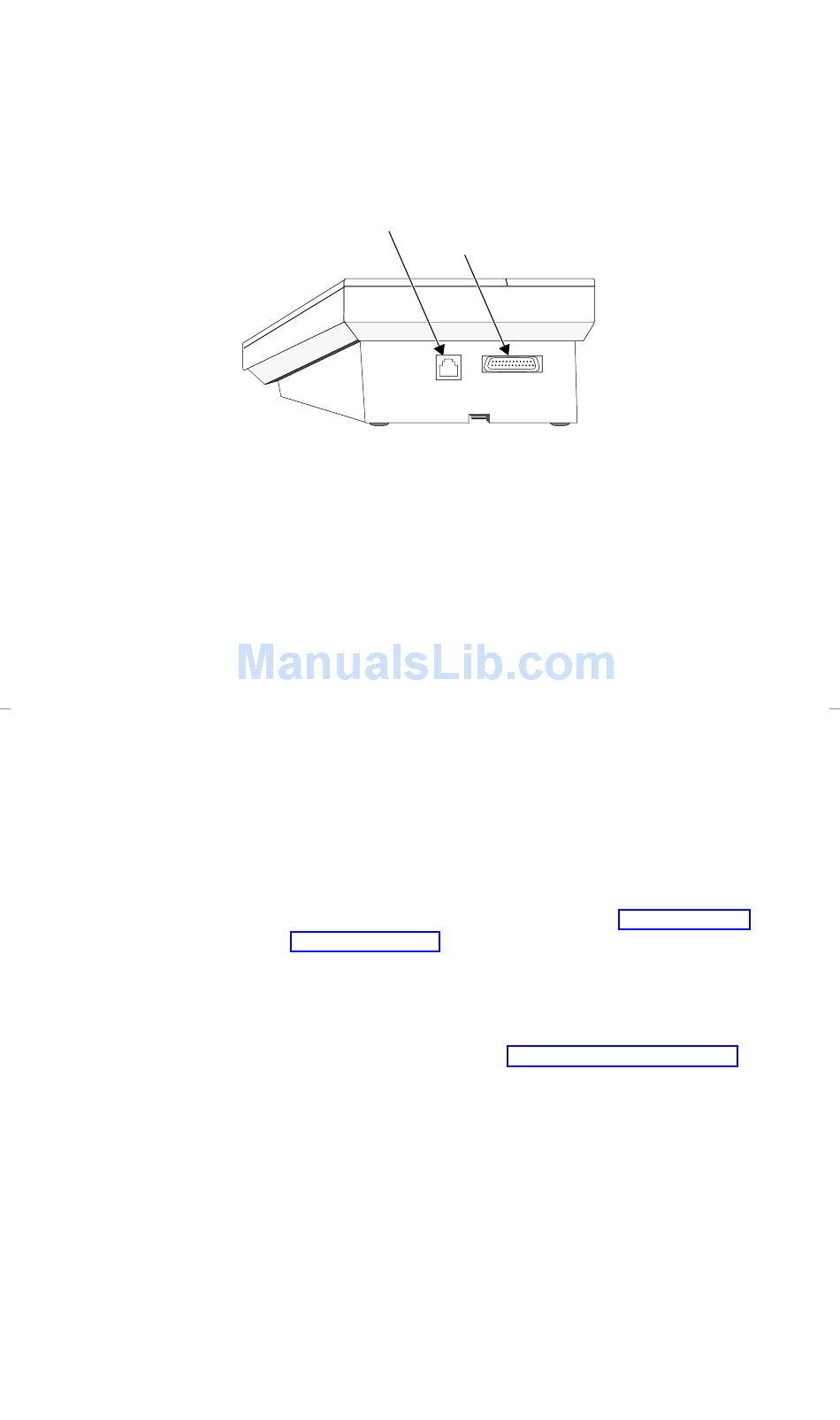

Figure 3. A Rear View of the 8411 Voice Terminal
This RJ11C jack is used for connecting analog equipment such as
answering machines, fax machines, PC or laptop data/fax modem
cards, data sets or modems, audio teleconferencing equipment,
and TTY machines commonly used by the hearing impaired. For
more information about this connections, see "Connection with
Analog Equipment" later in this section.
This asynchronous RS-232 jack is used for connecting the voice
terminal to the COM port on an IBM
computer on which you can load and use the Lucent Technologies
PassageWay Solution software. For a description of the
PassageWay applications, see "The PassageWay Connection"
later in this section.
RS-232-D jack
®
-compatible personal
6
