Kickstand
Routing
channel
for line cord
and adjunct
cord
Line jack
Adjunct
jack
The various components which appear on the bottom of the 8411 voice terminal are shown in
Figure 2 and listed and explained below.
Handset jack
Adjunct jack
Line jack
Routing channel
Kickstand
LINE
ADJUNCT
!

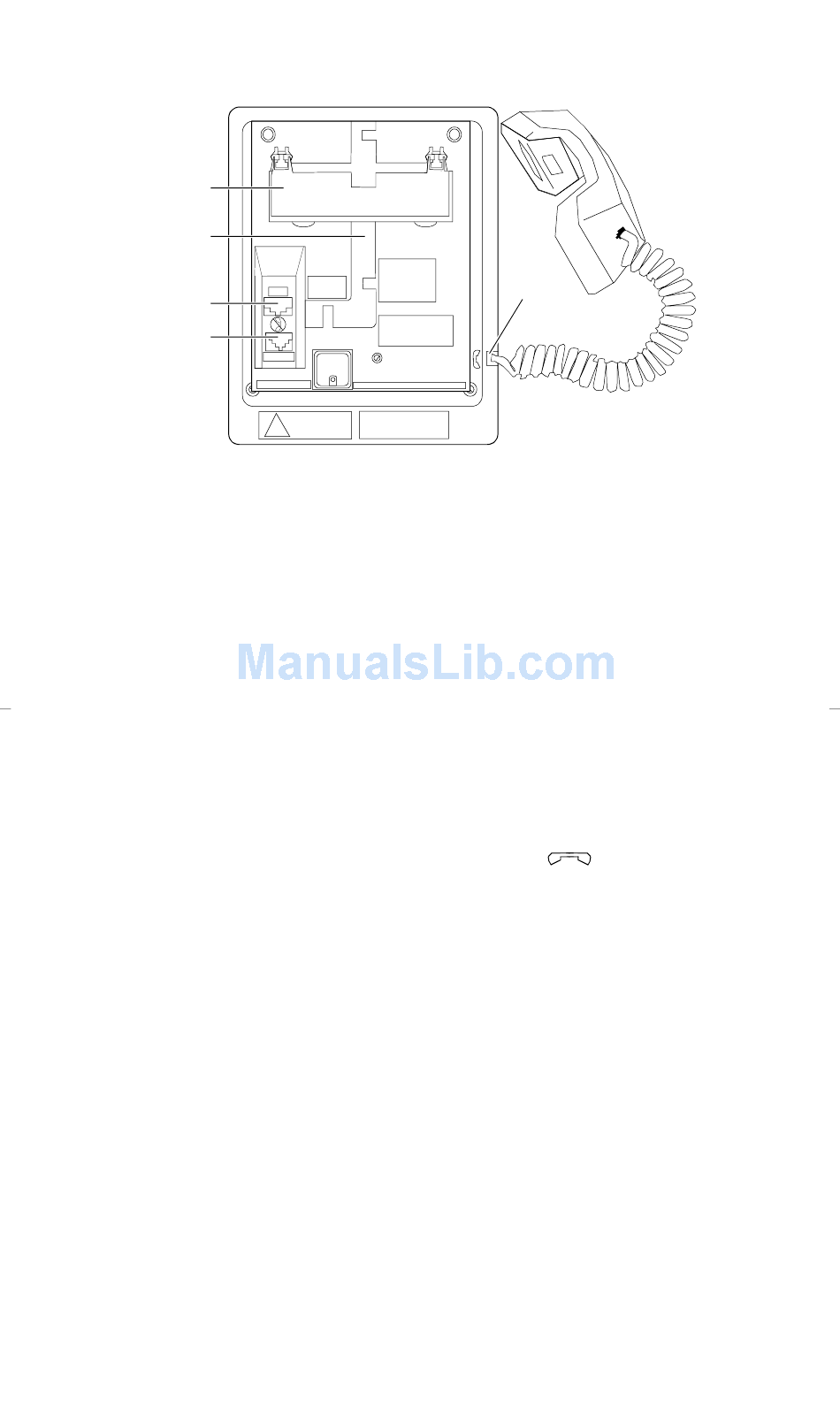

Figure 2. Bottom View of the 8411 Voice Terminal
This jack is for connecting a handset, with handset cord, to your
voice terminal. The jack is labeled
This jack is used for connecting an external speakerphone (such
as an S101A or S201A Speakerphone) or a headset adapter (such
as a 500A Headset Adapter) to your voice terminal.
The jack is labeled "ADJUNCT."
This jack is used for connecting a line cord to your
voice terminal. The jack is labeled "LINE."
Thread the line cord (and adjunct equipment cord,
if applicable) through the routing channel.
Can be lifted from the deskstand or can be left level with the
bottom of the voice terminal. Check which kickstand adjustment
allows you the best viewing angle of the display. (Only the 8411D
has a display.)
Handset
jack
.
5
