LCD Panel Closed (Top View) - Model Series B/C

Model B & C computers feature a 5.0M Pixels / 2.0M FHD dual camera system.
When the LCD is open, the camera facing you is the 2.0M FHD camera (see
1 - 3 on page 1 - 8). The 5.0M Pixels camera (
which will be facing away from you when the LCD panel is open.
1
2
2
above) is located on the top case,
LCD Panel Closed (Top View) - Model Series B/C 1 - 9
Quick Start Guide

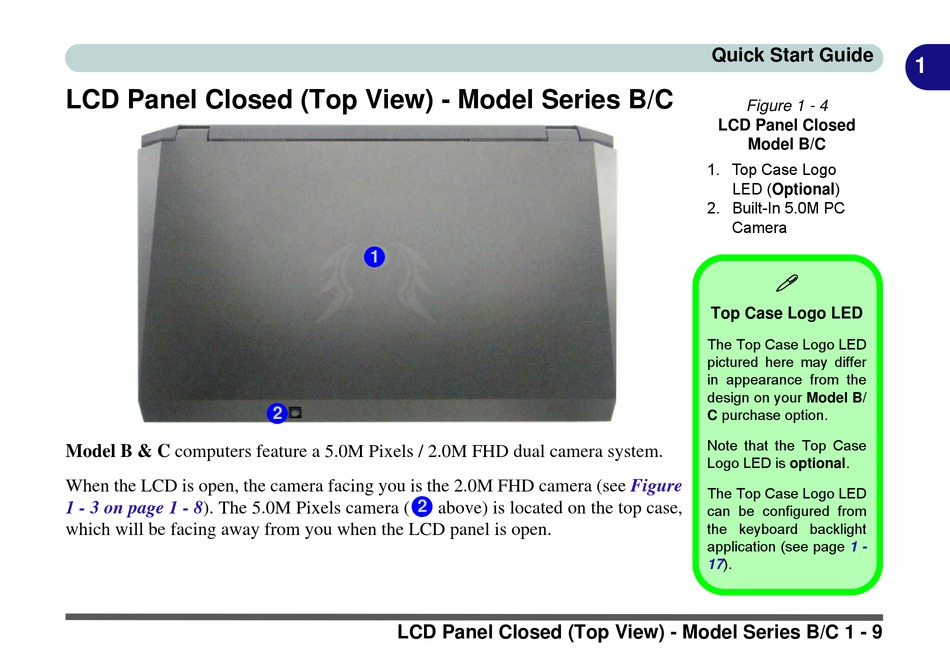

Figure 1 - 4
LCD Panel Closed
Model B/C
1. Top Case Logo
LED (Optional)
2. Built-In 5.0M PC
Camera

Top Case Logo LED
The Top Case Logo LED
pictured here may differ
in appearance from the
design on your Model B/
C purchase option.
Note that the Top Case
Logo LED is optional.
Figure
The Top Case Logo LED
can be configured from
the keyboard backlight
application (see page
17).
