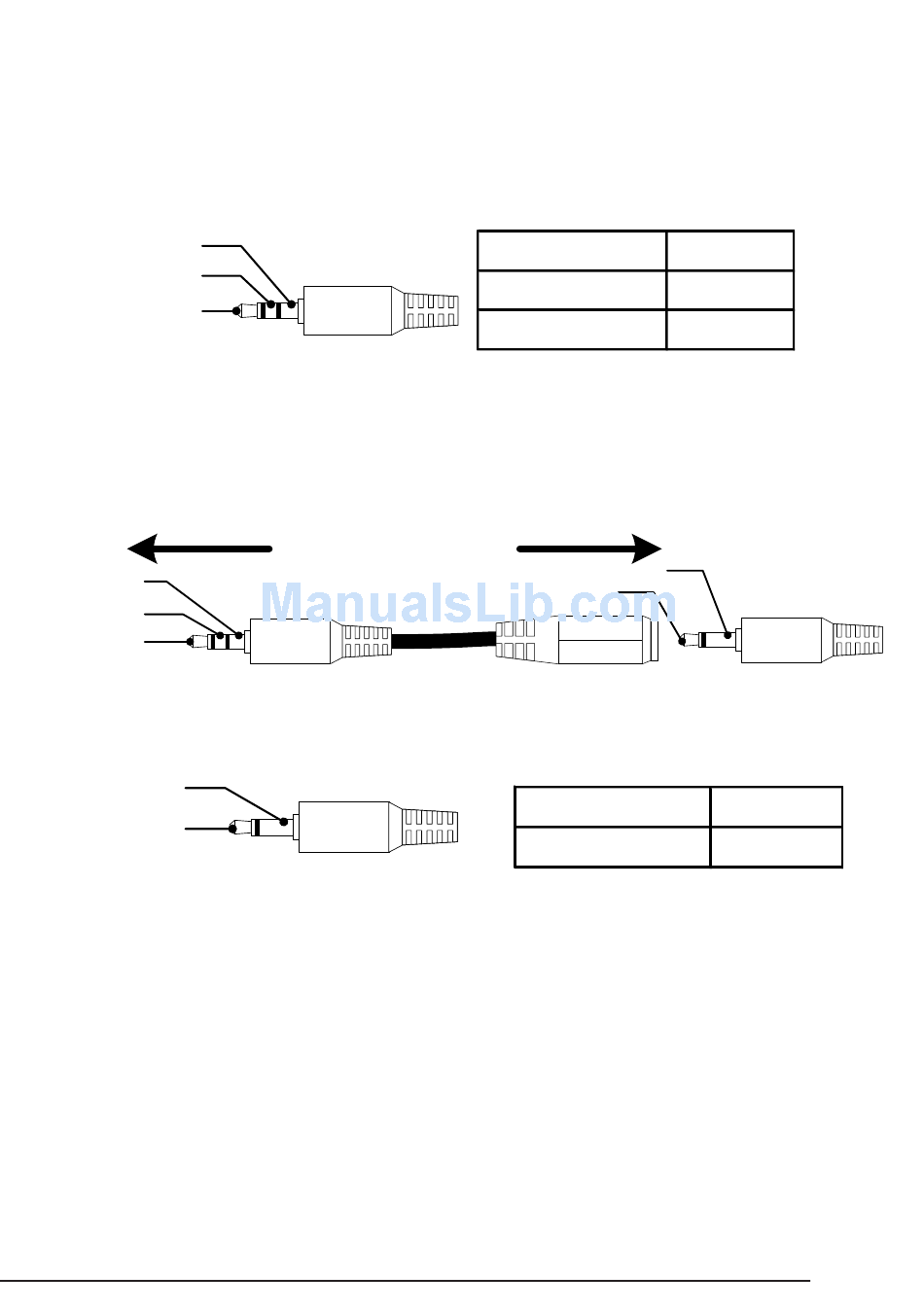

5.2.1. IR RECEIVER IN (3.5MM {1/8"} STEREO) – RECEIVER ONLY
The most common use of the IR Receiver port is to send an IR signal from a powered IR Receiver
to an IR Flasher connected to the Transmitter. This connection includes +9V DC power for an
IR Receiver. A 3.5mm {1/8"} Stereo Cable is used to connect directly to an IR Receiver, DO NOT
connect a mono cable to this connection as damage may occur.
9V DC (Sleeve)
GND (Ring)
IR Signal (Tip)
If the system requires connection to an Automation System or Connecting Block to send IR to the
Transmitter, the included IR Adapter Cable between the Automation System or Connecting Block
output and the IR Receiver input must be used.
To B-320-HDMATRIX-RCV-W
9V DC (Sleeve)
GND (Ring)
IR Signal (Tip)

5.2.2. IR FLASHER OUT (3.5MM {1/8"} MONO) - TRANSMITTER AND RECEIVER

GND (Sleeve)
IR Signal (Tip)

5.3. HDMI OUT TO DISPLAY (HDMI)

Recommended Cabling
• 1 meter or shorter HDMI Cable
© 2012 Binary
B-320-HDMATRIX-RCV-W Installation and Users Manual
IR Signal
GND (Ground)
+9V DC
To IR Control System
or Connecting Block
GND (Sleeve)
IR Signal (Tip)
IR Signal
GND (Ground)
Tip
Ring
Sleeve
Tip
Ring
pg.9
