B-320-HDMATRIX-RCV-W Installation and Users Manual

5.2. IR CONTROL CONNECTIONS

Bi-directional IR signals are transmitted between the B-320-HDMATRIX-RCV-W Transmitter and
Receiver over the Cat5e/6 cable. How the IR connections function varies on the Transmitter and
Receiver based on the common use cases for sending and receiving IR. This section outlines the
operation of IR on the Transmitter and Receiver.
Connection Precautions!
• Before connecting an IR Receiver or an IR control system, verify that the B-320-HDMATRIX-RCV-W
is OFF to avoid damaging the unit.
• The IR Receiver In (3.5mm {1/8"} Stereo) provides 9V to power IR receivers. This voltage can damage
flashers and control systems. Take caution before plugging an IR Flasher or IR Receiver into the
respective IR sockets. The Manufacturer's Warranty will not cover any damage that may occur.
• Pin out configurations for IR receivers and control systems vary. Before connecting to this input,
review this section carefully in order to match the pin outs for the B-320-HDMATRIX-RCV-W.
pg.8
B
A
2
0

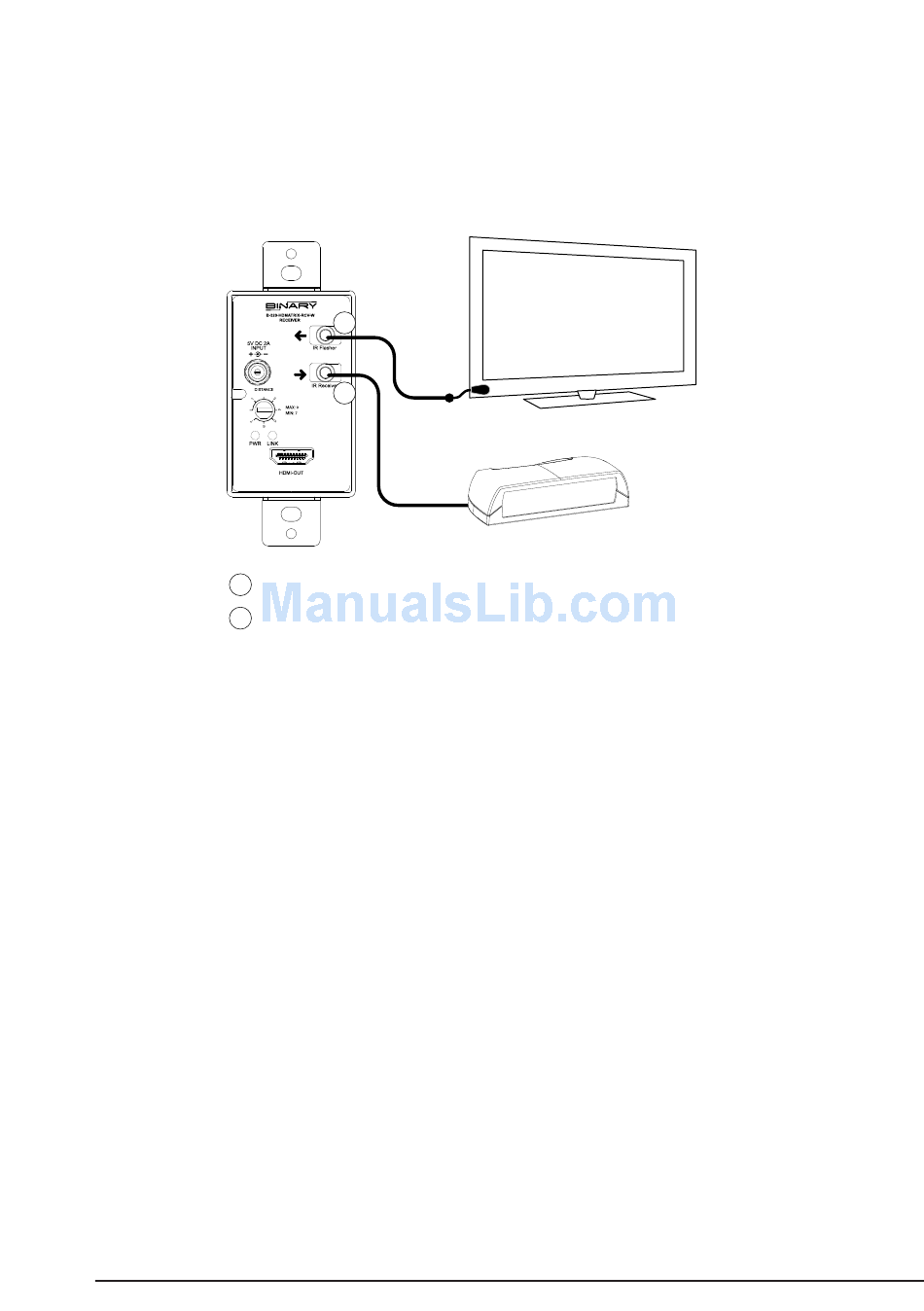

A IR Receiver In (3.5mm {1/8"} Stereo) – See Section 5.2.1
B IR Flasher Out (3.5mm {1/8"} Mono) – See Section 5.2.2
HDTV
