5. BASIC CONNECTIONS

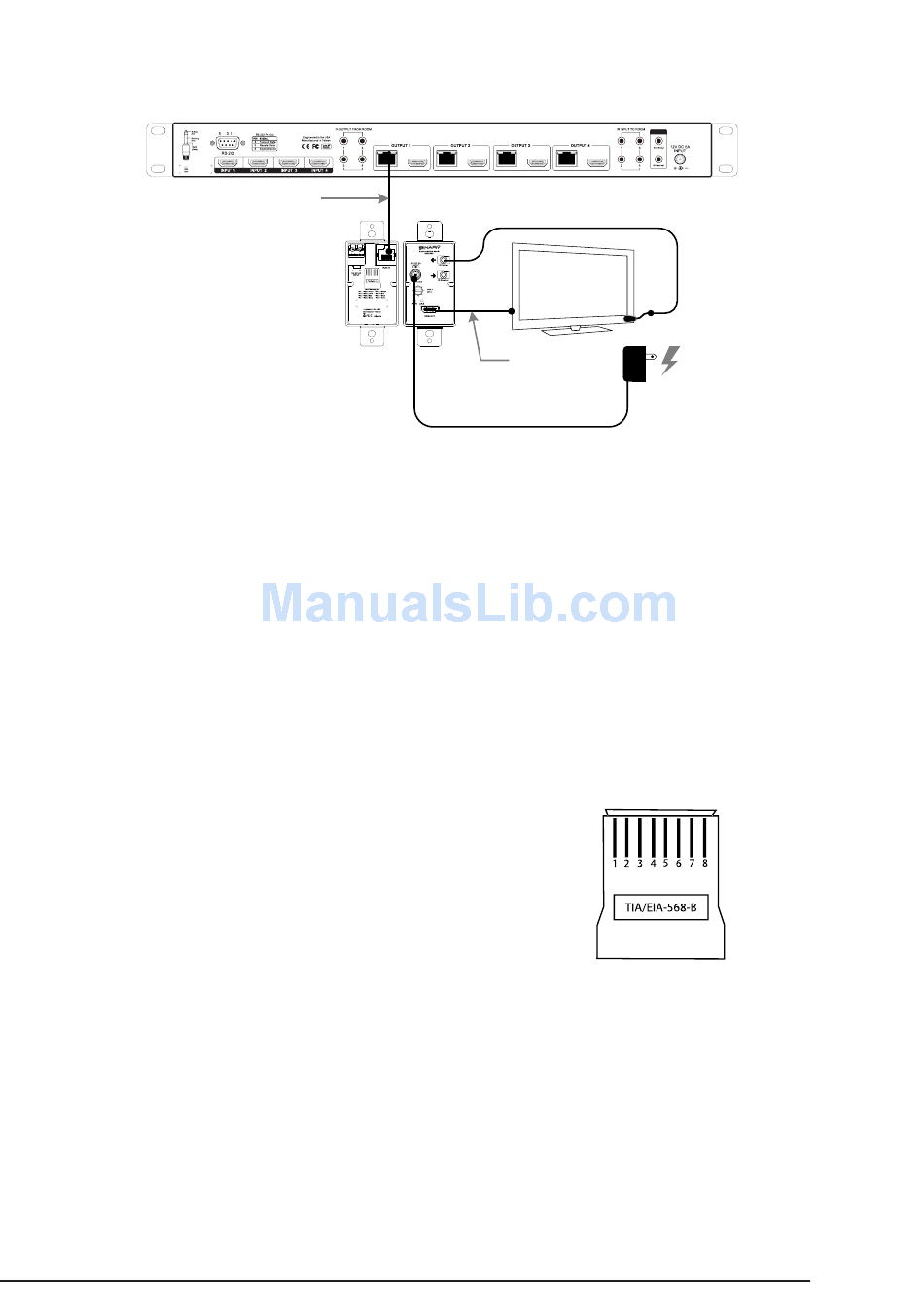

5.1. HD MATRIX LINK (RJ45) CONNECTIONS

Recommended Cabling
• Shielded Cat5e/Cat6
Connection Precautions!
• The transmission distance is subject to the quality of installed cables, source device, and display.
Note: The use of keystone jack or other connections along the transmission path is not supported
with this device.
• To reduce video dropouts from ceiling fans and other EMI issues, it is strongly recommended that
shielded CAT5e/CAT6 and shielded RJ45 connectors are used; "EZ-ends" should not be used.
Connection Details:
TIA/EIA Standard 568-B (
Pin 1
Pin 2
Pin 3
Pin 4
© 2012 Binary
Shielded Cat5e/Cat6
B-320-HDMATRIX-RCV-W
Gold Pins Facing Up
White/Orange
Orange
White/Green
Blue
B-320-HDMATRIX-RCV-W Installation and Users Manual
Binary HD Matrix Switcher with 1Cat Outputs
HDTV
2
0
HDMI
(1meter or less)
)
Pin 5 White/Blue
Pin 6 Green
Pin 7 White/Brown
Pin 8 Brown
AC Power
pg.7
