Owner's Manual
Binary™ VGA Extender over
Single Cat-5
B-220-1CAT-VGA-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-220-1CAT-VGA-A and is the answer not in the manual?

Questions and answers

Related Manuals for Binary B-220-1CAT-VGA-A

Summary of Contents for Binary B-220-1CAT-VGA-A

  • Page 1 Owner’s Manual Binary™ VGA Extender over Single Cat-5 B-220-1CAT-VGA-A...

  • Page 2: Important Safety Instructions

    B-220-1CAT-VGA-A Manual 1. Important Safety Instructions Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

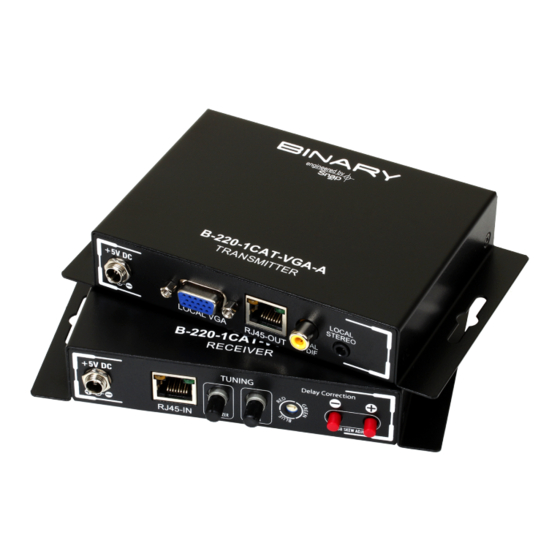

  • Page 3 B-220-1CAT-VGA-A Manual 1. Introduction The B-220-1CAT-VGA-A extends VGA video with analog and digital audio signals over a single Cat5e cable up to 1000 feet with built-in equalization, signal gain control, and RGB delay control. The unit also support local audio/video out.

  • Page 4: Installation Steps

    3 4 5 RJ45-Out Plug in a Cat-5/5e/6 cable that needs to be linked to the RJ-45 connector of the receiving unit of the B-220-1CAT-VGA-A Local Stereo Audio Out Loop out for stereo audio to a local audio receiver or display...
  • Page 5 B-220-1CAT-VGA-A Manual 4.2 Receiver 4.2.1 Front Panel 3 4 5 Stereo Audio Out Output stereo audio from the source S/PDIF Audio Out Output S/PDIF audio from the source VGA OUT Connect the VGA output to a video display 4.2.2 Rear Panel...
  • Page 6 Connect a Cat-5/5e/6 cable between the transmitting and receiving units, make sure it is properly connected and terminated to TIA-568B. Plug in a 5V DC power supply unit to the power jack of the receiving unit of the B-220-1CAT-VGA-A. Plug in the other 5V DC power supply into the transmitting unit.

  • Page 7: Pinout Configuration

    6. Pinout Configuration Please visit our website for the latest tips, best practices & more information about the B-220-1CAT-VGA-A. If other wires need to be utilized for a component breakout cable or other applications, use the chart below for proper pinout configuration.

  • Page 8: Specifications

    5 Watts 8. Warranty 2-Year Limited Warranty This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or year workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled.
