B-350-USB2-CATX USB 2.0 OVER SINGLE CAT 5E/6/7 EXTENDER
1. INCLUDED

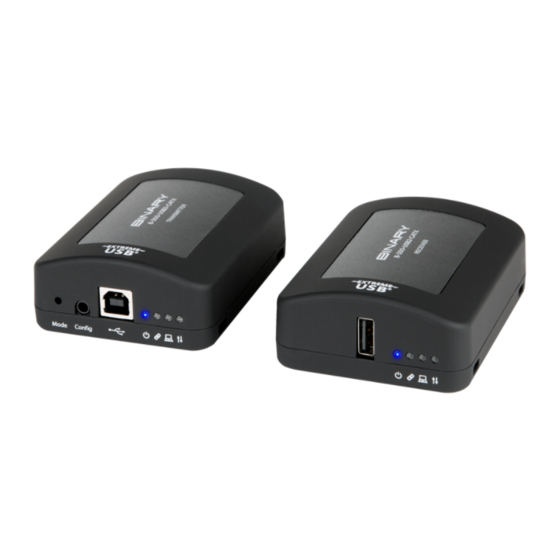

B-350-USB2-CATX Transmitter & Receiver Pair
(1) AC power adapter 24VDC, 1A
(1) USB 2.0 Cable

Quick Start Guide

2. REQUIREMENTS
USB 1.1 or 2.0 compatible computer with a USB compliant operating system
USB 1.1 or 2.0 compatible device(s)
Solid core CAT 5e/6/7
3. FEATURES
The B-350-USB2-CATX is ideal for extending USB peripherals including: keyboards, mouse devices, interactive white boards,
flash drives, hard drives, audio devices, web cameras and any other USB 1.1 or 2.0 devices. Key features include:
Flexible power—connect the power adapter to either the transmitter or receiver
Up to 250mA supplied to USB devices
Utilizes Cat5e cable for convenient installation
Reliable operation with USB 1.1 and 2.0 devices and hubs
Transparent USB extension
True plug and play; no software drivers required
Works with all major operating systems: Windows
4. IMPORTANT NOTES
Only the transmitter OR receiver must be powered. Never power both devices at the same time.
The B-350-USB2-CATX enables users to extend USB devices up to 100M/330ft.
As with any Binary™ extender, we recommend that you use the wiring pattern: TIA-568B.
The extender system cannot be daisy chained together with additional extender systems. A system can have
only one transmitter and one receiver.
QUICK START GUIDE
, Mac OS X
, and Linux
®
®
Rev:170807-1145
®
