Binary B-300-USB2-CATX Quick Start Manual

Quick Start Guide

B-300-USB2-CATX USB 2.0 Over Single Cat5e/6 Extender
Included:
• Local & Remote Extender
• (1) 24 Volt 1 Amp AC Power Adapter
• (1) USB 2.0 Cable
• Quick Start Guide
Features:
The B-300-USB2-CATX is ideal for extending USB peripherals
including: keyboards, mouse devices, interactive whiteboards,
flash drives, hard drives, audio devices, web cameras and any
other USB 1.1 or 2.0 devices. Key features include:
• Flexible power—connect the power adapter to either the
local or remote extender
• 500mA supplied to USB devices
• Utilizes Cat5e cable for convenient installation
• Throughputs of up to 480Mbps
• Reliable operation with USB 1.1 and 2.0 devices and hubs
• Transparent USB extension
• True plug and play; no software drivers required
• Works with all major operating systems: Windows
X , and Linux
® ®

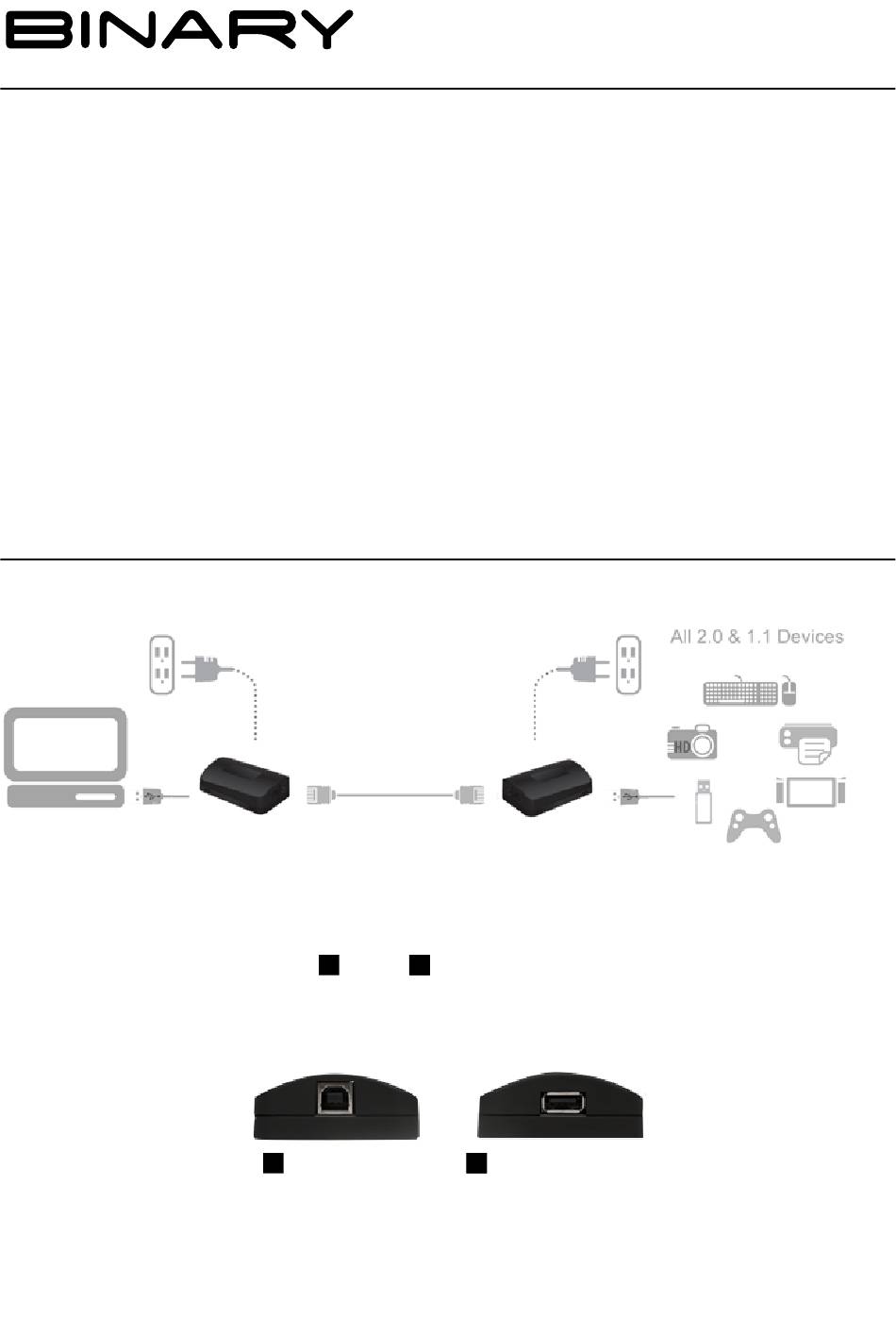

How to Connect:

1. Connect the power adapter to either the local or remote extender.
2. Connect the local unit (USB type-B connector) to the host computer or USB hub.
3. Connect the RJ45 ports on the
RJ45 LED on the remote unit will illuminate to indicate it is connected to the local unit, and is powered
4. Connect the remote unit to the USB device using the provided USB 2.0 cable.
, Mac OS
®
1 2
local and remote units using solid-core Cat5e/6 cabling. The green
1

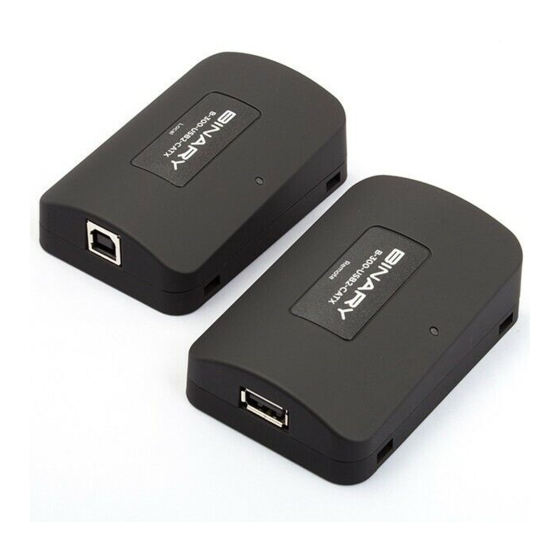

Local Extender
USB Type-B
Requirements:
• USB 1.1 or 2.0 compatible computer with a USB compliant
operating system
• USB 1.1 or 2.0 compatible device(s)
• Solid core CAT5e or CAT6, UTP/STP

Important Notes:

• Never power both the local and remote extender at the
same time.
• The B-300-USB2-CATX enables users to extend USB
devices up to 100M/330ft.
• As with any Binary™ extender, we recommend that you use
the wiring pattern: TIA-568B.
• The extender system cannot be daisy chained together with
additional extender systems. A system can have only one
local extender and one remote extender.
2
Remote Extender
USB Type-A
