5.4. OPTIONAL REMOTE POWER (2 CONDUCTOR) CONNECTIONS

Power for the B-320-HDMATRIX-RCV-W can be supplied via a remote power source when use of
the Latch-Locking Power Jack is not desired. The connection is a 2 conductor removable plug
located on the rear of the B-320-HDMATRIX-RCV-W.
Recommended Cabling
• One 18 gauge per leg or Two 22/ 24 gauge per leg
Connection Precautions!
• Observe the connections polarity markings. Reversing the polarity may cause damage to the product.
• DO NOT use this connection and the Latch-Locking Power Jack Connection simultaneously. Doing so
may cause damage to the product.

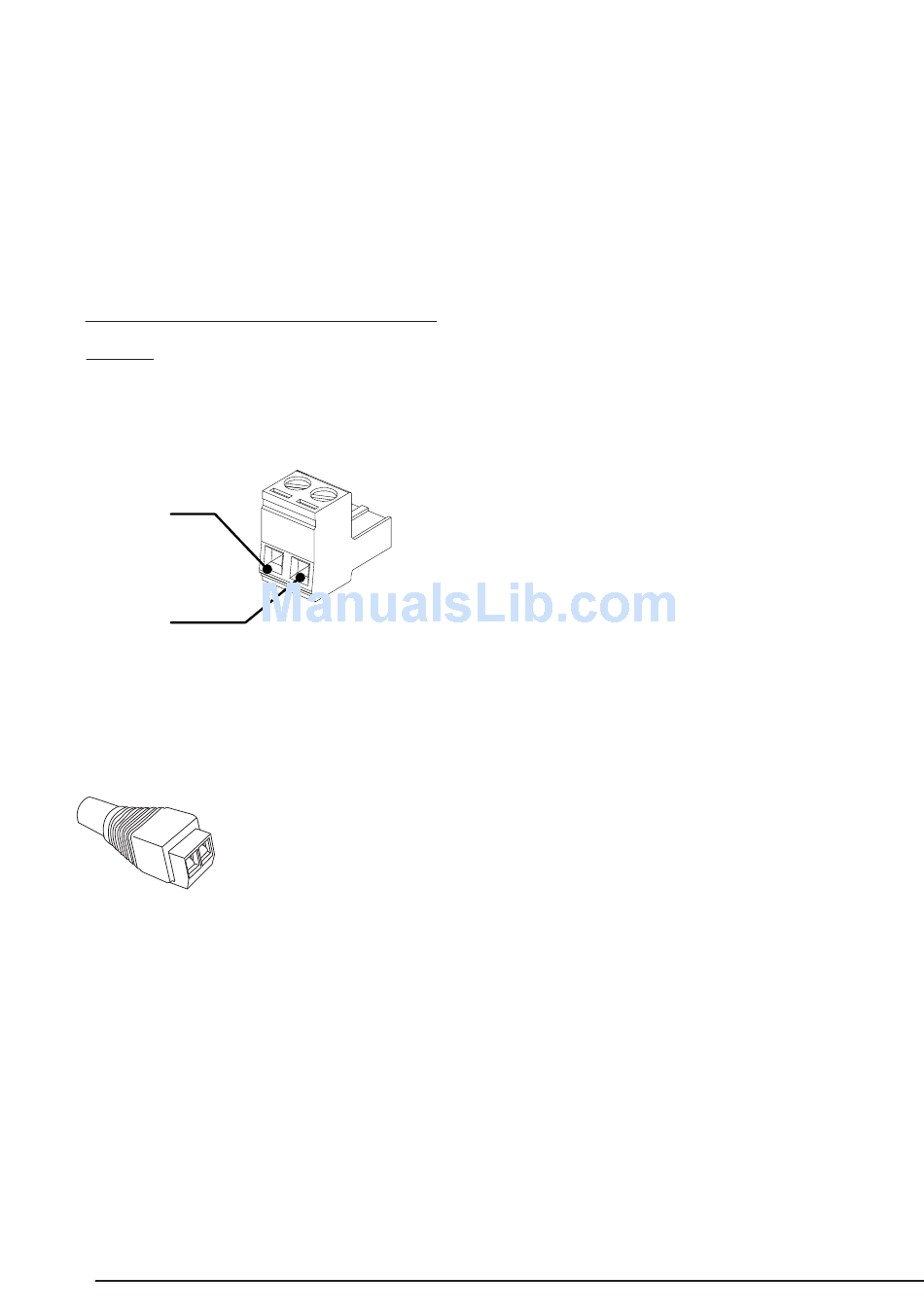

Connection Details:
+5V DC 2A
- (GND)
Connecting a Remote Power Supply
The included WPS-ACC-PWR DC Power Plug can be used to convert the single plug of a power
supply to 2 wires. This eliminates the need to cut the wires on the end of the power supply.
pg.10
