6.2.1. Point-to-Point IR Receiver - Stereo (3.5mm) Receiver Only

The IR Receiver port is used to send an IR signal from a +9V DC powered IR Receiver
to an IR Flasher connected to the Transmitter. Use a 3.5mm {1/8"} Stereo Cable to
connect directly to an IR Receiver.
:
CAUTION DO NOT connect a mono cable to this connection as damage may occur.
9V DC(Sleeve)
GND (Sleeve)
IR Signal (Tip)
Use the included IR adapter cable between the control system ouput and the IR receiver input
if the system requires a control system connection to send IR to the Transmitter.
6.2.2. IR Control In Mono (3.5mm) – Transmitter Only
The IR Control IN port is used to send a wired IR signal from an IR Flasher connected to the
Receiver. This connection does not include power for an IR Receiver. Use a 3.5mm {1/8"} mono
cable to connect directly to the control system IR output.
Use a powered IR block between the IR receiver and the IR control IN port on the Transmitter if
the system requires a powered IR Receiver at the Transmitter.
6.2.3. IR Flasher Out-3.5mm Mono – Transmitter and Receiver
GND (Sleeve)
IR Signal (Tip)

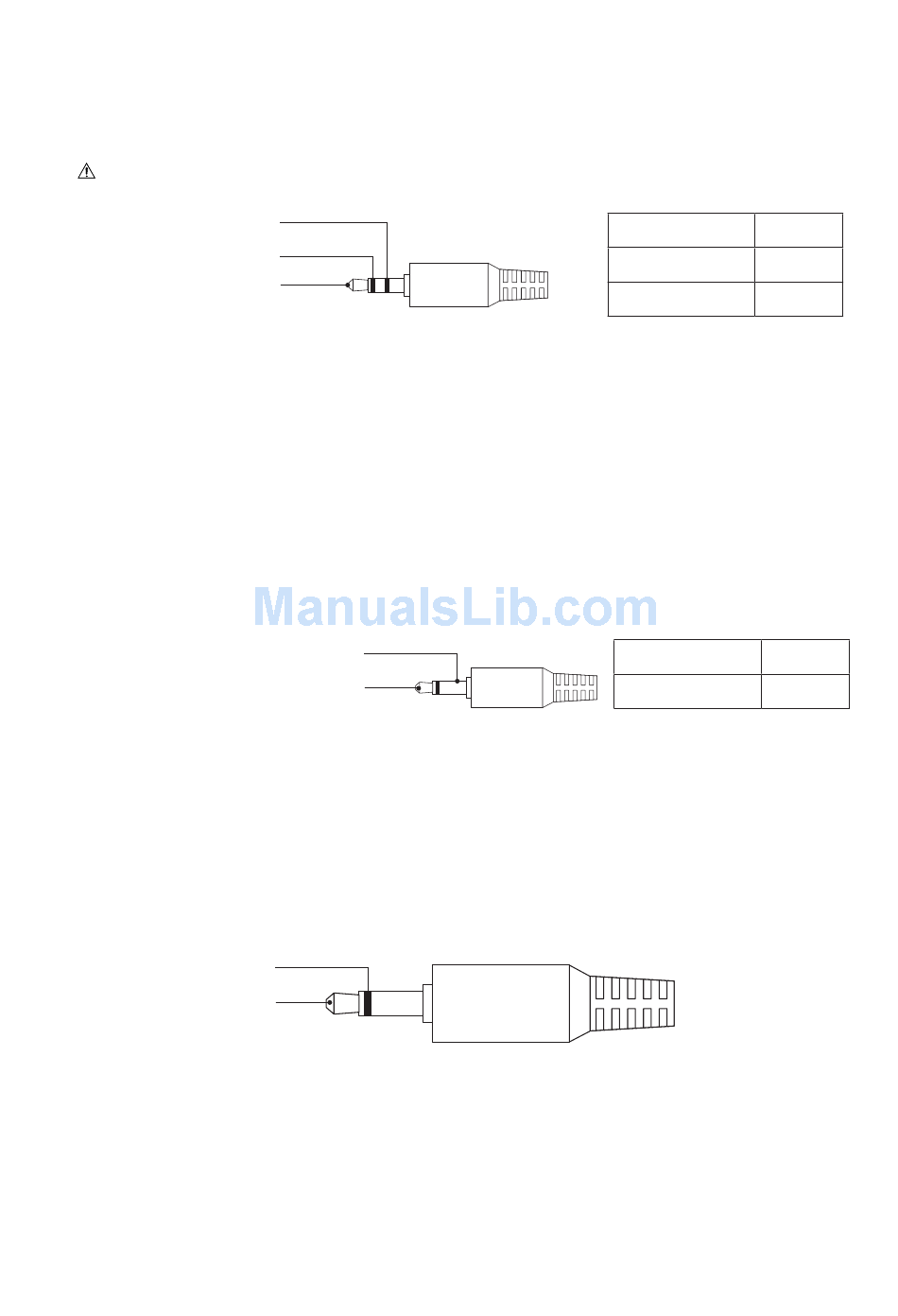

Pinout Configuration
FIGURE 6: Point-to-Point IR settings
GND (Sleeve)
IR Signal (Tip)
Pinout Configuration
FIGURE 7 : Control System IR settings
Pinout Configuration
FIGURE 8: IR Flasher Out
10
IR Signal Tip
GND (Ground) Ring
+9VDC Sleeve
IR Signal Tip
GND (Ground) Ring
