Binary B-300-USB1-CATX Quick Start Manual

Quick Start Guide
B-300-USB1-CATX USB 1.1 Over Single Cat5e/6 Extender

Product Features:

• Extends USB 1.1 signals up to 85M/280ft*
• Transparent USB extension
• No software or drivers required
• No external power required
• True plug and play, no software drivers required.
• Works with all major operating systems.

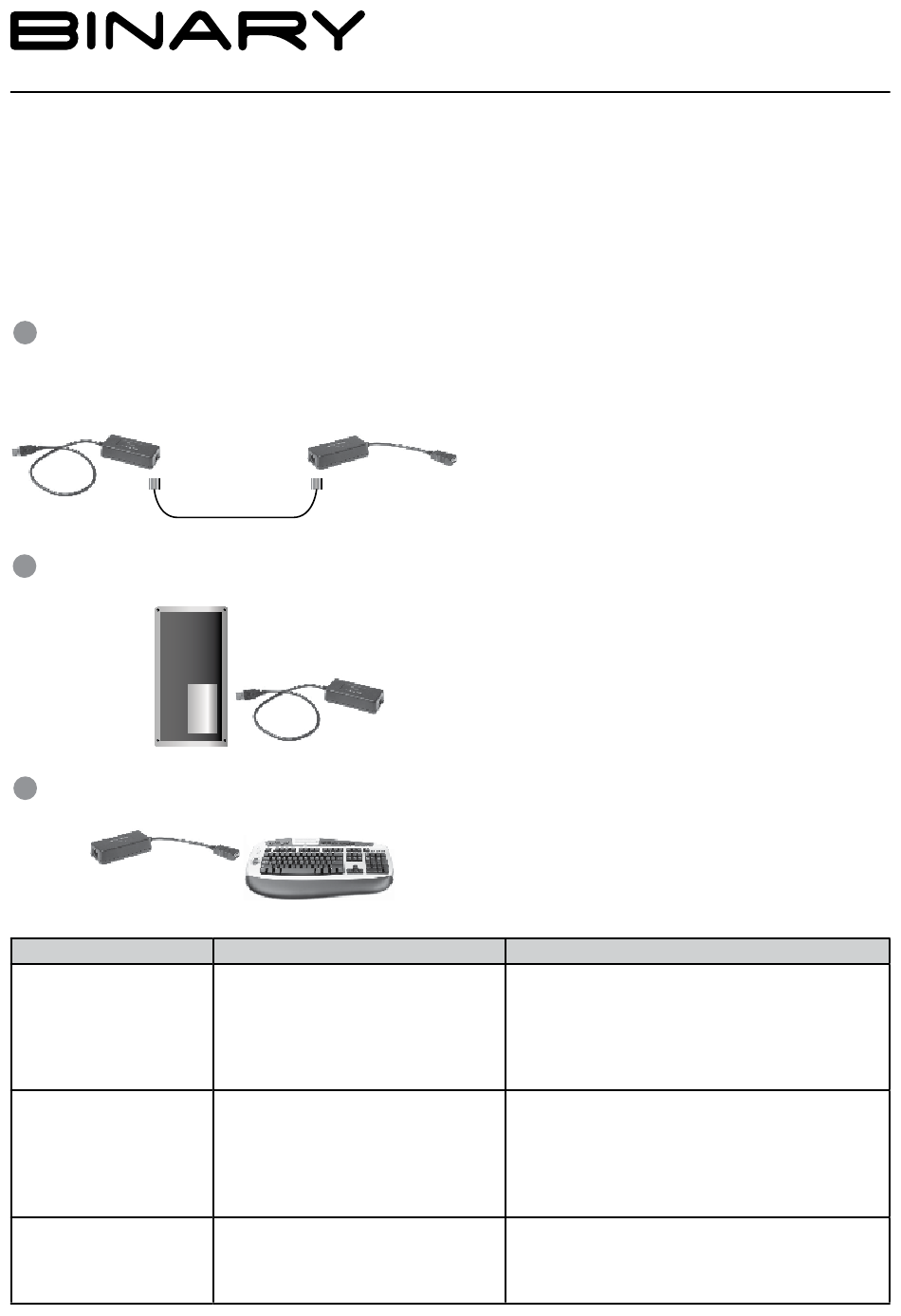

How to Connect:

1
Place units where desired, and connect the Cat5e
1
(solid core) extension link cable to the Link ports
(RJ45) on the local extender and remote extender.

Local Extender

2
(Cat 5e cable not included)
2
Connect the local extender to the computer .
Computer
3
Attach the USB device to the remote extender
3

Troubleshooting:

PROBLEM
The USB device does
not operate correctly.
The USB device is de-
tected as an "Unknown
Device" in the operating
system.
The USB device is de-
tected as using too much
power in the operating
system.

Remote Extender

CAUSE
• The USB device is malfunctioning.
• The computer does not recognize
the USB device.
• The application software for the
device is not operating.
• The extender is malfunctioning.
• The USB device's timing is outside
of the USB 1.1 specification.
• The extender is malfunctioning.
• The USB device needs more power
than the extender can support.
• The host is not providing enough
power to the extender.

Included:

• Local Extender
• Remote Extender
• Quick Start Guide

Requirements:

• USB 1.1 or 2.0 compatible computer with a USB compliant
operating system
• USB 1.1 or 2.0 compatible device(s)
• Solid core CAT5e or CAT6, UTP/STP

Important Notes:

• *The B-300 USB 1.1 model enables users to extend
USB devices up to 40M/131ft. Extension distances up to
85M/280ft may be achievable with low-speed HID devices
such as keyboards and mice.
• It is strongly recommended that the wiring pattern: TIA-
568B be used for extension of media.
• Extension length is reduced for each USB hub added to
the system. There is a 13.2M/43ft reduction in extension
distance for each USB hub added to the system. This
includes hubs added on the local extender or remote
extender side.
• The extender system cannot be daisy chained together
with additional extender systems. A system can have only
one local extender and one remote extender.
.
SOLUTION
1. Un-install and re-install the driver for the USB
device.
2. Update the driver for the USB device.
3. Directly connect the USB device to the Host to
verify the USB device operates correctly.
4. Contact Technical Support.
1. Connect the remote extender to the local ex-
tender using a patch cable.
2. Unplug the local extender from the host and
wait 15 seconds. Then plug the local extender
back into the host.
3. Contact Technical Support.
1. Connect the local extender to a different USB
port on the host.
2. Connect a self powered USB hub between the
remote extender and the USB device.
