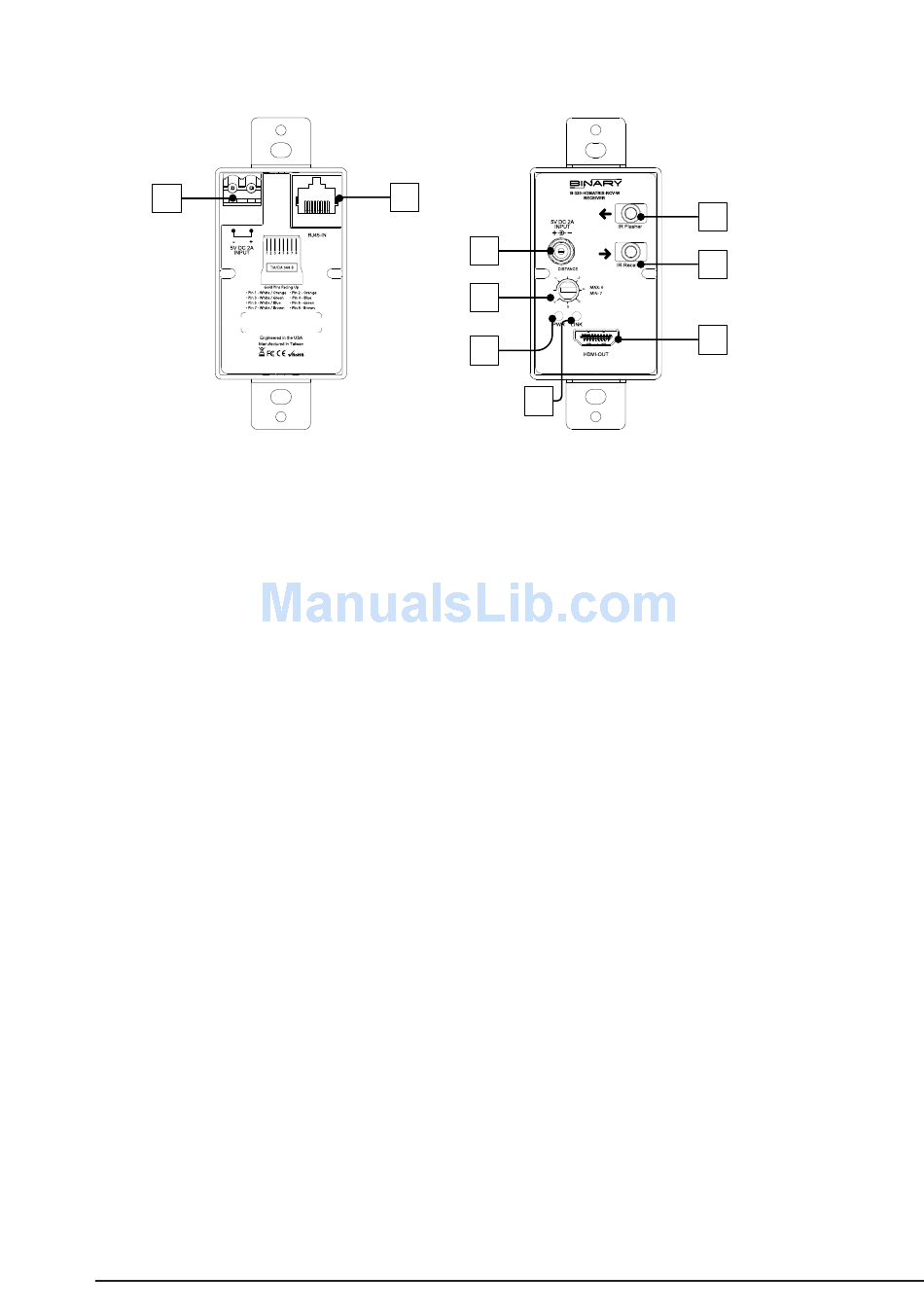

4. CONNECTIONS AND CONTROLS

1
1. Optional Remote Power (2 Conductor removable)
Optional connection for power from a remote power source, this connection requires a wire
run within the wall. Use only when the Latch-Locking Power Jack (3) is not being used. Do not
connect both power sources.
2. HD Matrix Link (RJ45)
Connect to RJ45 1cat output of a B-300-HDMATRIX; this connection follows standard TIA/EIA-568B.
While 568A can be used, its use will degrade performance due to the nature of the signals being
transmitted.
3. Latch-Locking Power Jack
Connect to the included 5V DC 2A Power Supply. Use only when the Optional Remote Power
connector (1) is not being used. Do not connect both power sources.
4. Distance Control
8 position rotary switch that provides equalization control to prevent over or under loading the
HD signal. See Distance Calibration for more details.
5. Power LED
Indicates current state of Power, illuminates GREEN when power is applied.
6. Signal Link LED
Indicates linking status with HD Matrix, illuminates YELLOW when active CAT5E/6 cable is
attached.
7. IR Flasher Out (3.5mm {1/8"} Mono)
Connect an IR flasher to send IR control signals from Automation System connected to the HD
Matrix to a TV or other device.
8. IR Receiver In (3.5mm {1/8"} Stereo)
Connect an IR Receiver to send IR signals to the HD Matrix from the remote location.
9. HDMI Out to Display (HDMI)
Connect an HDMI cable to the display at the remote location.
