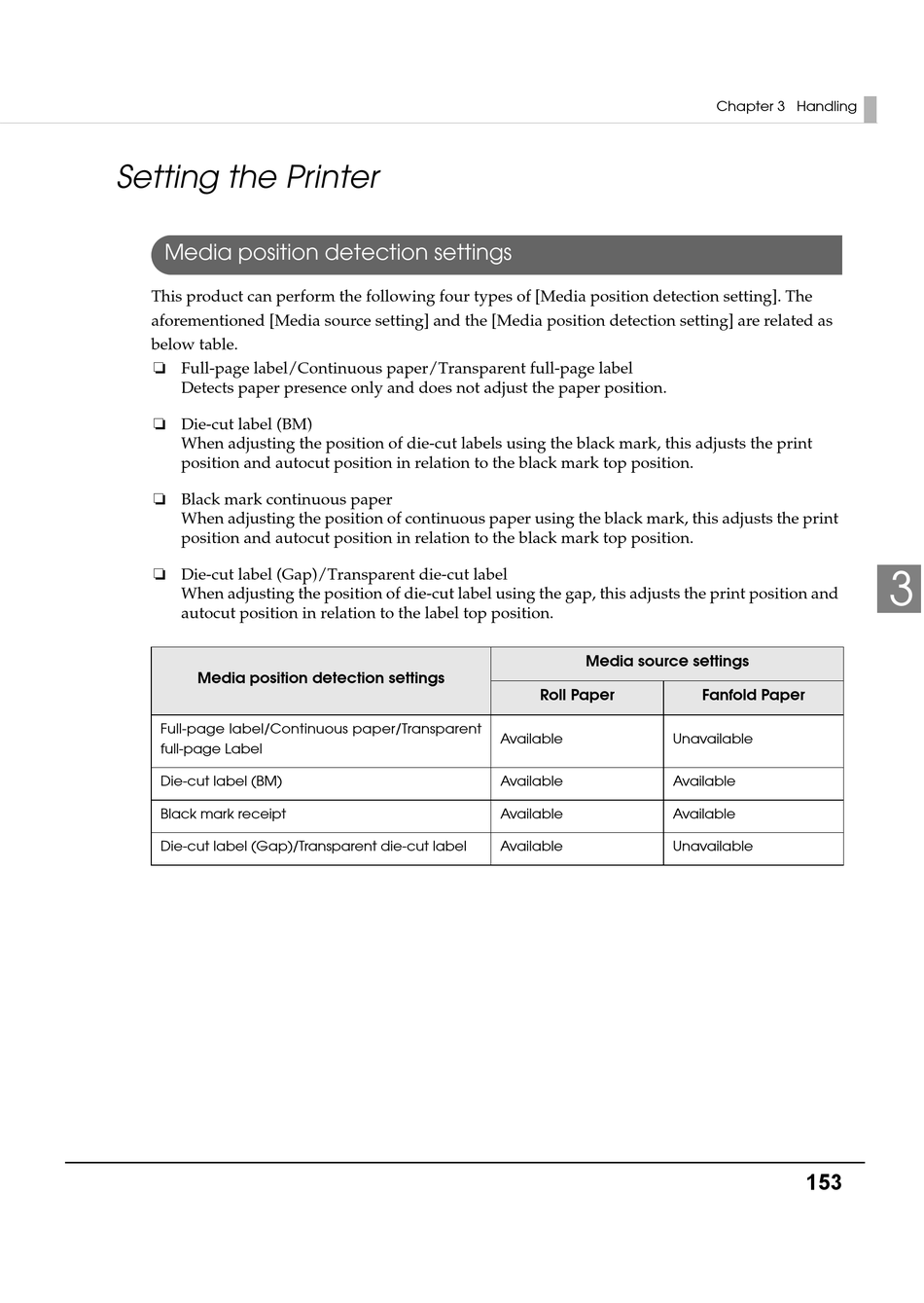

Setting the Printer

Media position detection settings

This product can perform the following four types of [Media position detection setting]. The
aforementioned [Media source setting] and the [Media position detection setting] are related as
below table.
❏ Full-page label/Continuous paper/Transparent full-page label
Detects paper presence only and does not adjust the paper position.
❏ Die-cut label (BM)
When adjusting the position of die-cut labels using the black mark, this adjusts the print
position and autocut position in relation to the black mark top position.
❏ Black mark continuous paper
When adjusting the position of continuous paper using the black mark, this adjusts the print
position and autocut position in relation to the black mark top position.
❏ Die-cut label (Gap)/Transparent die-cut label
When adjusting the position of die-cut label using the gap, this adjusts the print position and
autocut position in relation to the label top position.
Media position detection settings
Full-page label/Continuous paper/Transparent
full-page Label
Die-cut label (BM)
Black mark receipt
Die-cut label (Gap)/Transparent die-cut label
Media source settings
Roll Paper
Available Unavailable
Available Available
Available Available
Available Unavailable
