Epson TM-C3520 User Manual

412557501
SC
保留备用。 安装、 使用产品前请阅读使用说明。
版权所有。 没有精工爱普生公司的正式书面许可， 本手册不得复制， 不得保存在可再生系统内， 或以任
何形式任何手段进行电子、 机械转载、 复印、 录制等。 使用本手册内的有关信息无须授权。 在编辑本手
册时我们考虑到了各项防备措施， 对于手册中的错误和遗漏， 精工爱普生公司概不负责。 同时， 也不负
责由于使用本手册中的信息内容造成的损失。
本产品由于用户或第三方造成的事故、 错误使用和乱用， 以及擅自改装、 修理或变更式样等， 不严格遵
守精工爱普生公司的操作和维修要求 （美国除外） ， 引起的危害、 损失、 费用和付出款项等， 不论是精工
爱普生公司还是其它有关的集团公司， 对于该顾客或第三方概不负有任何责任。
由于使用非正规爱普生产品或非精工爱普生公司指定许可的任何附件或任何消耗品， 从而造成的损失
和故障， 精工爱普生公司概不负责。
根据地区不同， 产品内可能附带有接口电缆。 请使用该附带的电缆。
对于因使用Epson批准产品以外的接口电缆引起电磁干扰而导致的产品故障，
Seiko Epson Corporation 不负有任何责任。 关于批准电缆的详细信息请与Epson客服中心联系。
EPSON是Seiko Epson Corporation在日本、 中华人民共和国及其它国家或地区的注册商标。
备注 : 本手册中的内容有可能发生更改， 恕不事先通知。
Copyright© 2013 Seiko Epson Corporation. All rights reserved. 20130430
制造商 : 精工爱普生株式会社
地址 : 日本东京都新宿区西新宿2-4-1
安全注意事项
此部分介绍了有关确保安全和有效使用本产品的重要信息。 请仔细阅读此部分， 并妥善保管。
警告：
如果此设备冒烟、 或产生强烈的气味、 或发出不正常的噪声， 应立即关闭设备的电源。 继续使用将会导
致火灾， 请立即拔下电源插头， 然后与经销商或Seiko Epson 的维修中心联系。
不要试图自行修理本产品。 不正确的修理将是非常危险的。
不要拆开或修改本产品， 本产品的损坏将可能导致人体受伤、 火灾。
只能使用规定的AC适配器 （EPSON AC Adapter, K （型号: M248A） ） 。
连接到不适当的电源上可能会导致火灾。
请确认电源电缆符合相关的安全标准， 并包括电源系统接地端子 （PE 端子） 。
否则可能会导致电击。
不可将外物掉入设备中， 外物掉入可能会导致火灾或电击。
如果有水或其他液体溅入本设备， 应立即拔下电源插头， 然后与经销商或Seiko
系。 继续使用会导致火灾或电击。
请勿在本产品的内部及周围使用可燃性气体的喷雾器。 否则可能造成火灾。
注意：
不要使用在本手册中没有提到的方法连接电缆， 不同的连接方法可能会导致设备损坏或烧毁。
确定将本设备放置在稳固， 稳定的水平面上， 如果摔落， 将导致破裂或引致受伤。
不要在高湿度或过多灰尘的环境中使用。 过多的湿气和灰尘会导致设备损坏， 起火或电击。
不要在本产品上放置重物， 也不要站在或靠在本产品上， 设备可能会摔落或滑倒， 造成破裂和可能引
致受伤。
为确保安全， 在较长时间不使用前应拔下插头。
运输期间请勿从产品上拆下墨盒。
注意标签
产品上的注意标签表示如下安全注意事项。
注意：
小心自动裁纸刀的固定刀刃划伤手指。
使用限制
将本产品用于飞机、 列车、 船舶、 汽车等的与运行直接相关的装置、 防灾防盗装置、 各种安全装置等要
求机能、 精度等具备高度可信性、 安全性的用途时， 为维持这些系统整体的可信性与安全， 请采取故障
自动防护设计及冗长设计等措施， 在确保系统全体安全的基础上使用本公司产品。
EN
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of
Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. While
every precaution has been taken in the preparation of this book, Seiko Epson Corporation assumes no responsibility for
errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this
product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly
comply with Seiko Epson Corporation's operating and maintenance instructions.
Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options or any
consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson
Corporation.
Depending on the area, the interface cable may be included with the product. If so, use that cable.
Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs
from the use of any interface cables other than those designated as Epson approved products.
EPSON is a registered trademark of Seiko Epson Corporation in Japan and other countries/regions.
Microsoft, Windows, and Windows Vista are registered trademarks of Microsoft Corporation.
The Ethernet interface model of this product includes software developed by the University of California, Berkeley, and its
contributors.
NOTICE: The contents of this manual are subject to change without notice.
Copyright © 2013 by Seiko Epson Corporation, Nagano, Japan.
Important Safety Information
This section presents important information intended to ensure safe and effective use of this product. Read this section
carefully and store it in an accessible location.
Key to Symbols
The symbols in this manual are identified by their level of importance, as defined below. Read the following carefully before
handling the product.
Warning:
Warnings must be followed carefully to avoid serious bodily injury.
CAUTION:
Cautions must be observed to avoid minor injury to yourself, damage to your equipment, or loss of data.
Warning:
Shut down your equipment immediately if it produces smoke, a strange odor, or unusual noise. Continued use
may lead to fire. Immediately unplug the equipment and contact your dealer or a Seiko Epson service center for
advice.
使用说明书
User's Manual
Never attempt to repair this product yourself. Improper repair work can be dangerous.
Never disassemble or modify this product. Tampering with this product may result in injury or fire.
Use the specified AC Adapter, K (Model: M248A) only. Connection to an improper power source may cause fire.
Be sure your power cable meets the relevant safety standards and includes a power-system ground terminal (PE
terminal). Otherwise shock may result. If you acquire a system with different safety standards, use an AC cable
that meets the acquired safety standards.
Do not allow foreign matter to fall into the equipment. Penetration by foreign objects may lead to fire.
If water or other liquid spills into this equipment, unplug the power cord immediately, and then contact your
dealer or a Seiko Epson service center for advice. Continued usage may lead to fire.
Do not use aerosol sprayers containing flammable gas inside or around this product. Doing so may cause fire.
CAUTION:
Do not connect cables in ways other than those mentioned in this manual. Different connections may cause
equipment damage and burning.
Be sure to set this equipment on a firm, stable, horizontal surface. The product may break or cause injury if it falls.
Do not use in locations subject to high humidity or dust levels. Excessive humidity and dust may cause equipment
damage or fire.
Do not place heavy objects on top of this product. Never stand or lean on this product. Equipment may fall or
collapse, causing breakage and possible injury.
To ensure safety, unplug this product before leaving it unused for an extended period.
Do not remove the ink cartridge from the product when you ship it.
Be sure to note the following when using the maintenance box: ・ Do not dismantle the Maintenance box. ・ Do
not touch the IC chip on the cartridge. ・ Keep out of reach of children, and do not drink. ・ Do not reuse a
maintenance box which has removed and detached a long period.
Caution Label
The caution label on the product indicates the following precaution.
CAUTION:
Take care not to injure your fingers on the fixed blade of the autocutter.
Restriction of Use
When this product is used for applications requiring high reliability/safety, such as transportation devices related to
aviation, rail, marine, automotive, etc.; disaster prevention devices; various safety devices, etc.; or functional/precision
devices, etc.; you should use this product only after giving consideration to including fail-safes and redundancies into your
design to maintain safety and total system reliability.

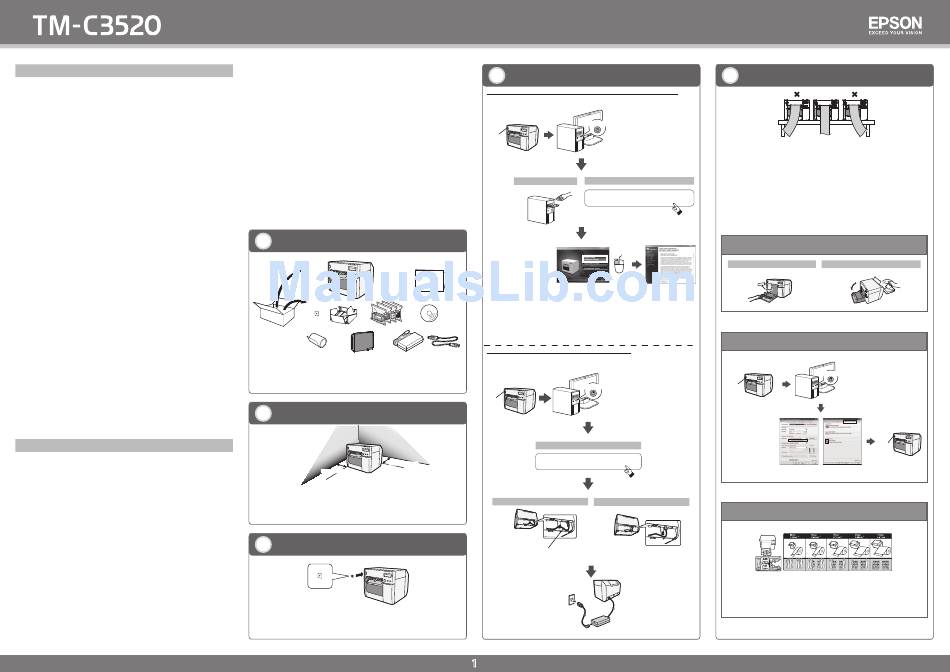

打开包装
1
Unpacking
Epson的维修中心联
SC EN
附件的形状根据机型和地区而异。
The shape of the accessories varies between models
and areas.
安装打印机
2
Installing the Printer
10cm (3.93inch)
SC EN
注意： CAUTION:
Install the printer horizontally on a flat, stable, and
将打印机水平安装在平坦、 稳定、 不会振动的表
vibration-free surface. Otherwise, the roll paper cover
面上。 否则， 纸卷盖可能无法
may not operate correctly, and your fingers may be
正常操作， 还可能将手指夹住。 caught.
电源开关盖
3
Using the Power Switch Cover
SC EN
在电源开关上安装电源开关盖， 可以防止无意
Installing the power switch cover onto the power switch
prevents inadvertent changing of the power switch.
中改变电源开关。
设定打印机
4
Set up the printer
使用Install Navi （ 推荐） 时
关闭 /
OFF
光盘
CD
请首先阅读此部分
Start Here
SC
使用Install Navi， 即可简单地设定打印机。
请从网页下载或使用光盘启动， 并按照下述指
示设定打印机。 向导程序将会引导您至维护箱
安装。
在Install Navi指示前， 请勿打开电源。
不使用Install Navi时
When not using the Install Navi
/
关闭 OFF
http://download.epson-biz.com/?service=pos
10cm (3.93inch)
USB
电缆挂钩 : 防止电缆脱落。
Cable hook: prevents the cable from falling off.
1
安装/更换打印纸
5
When using the Install Navi (recommended)
打开/ON 打开/ON
SC
注意：
纸卷盖打开时不倾斜打印机。 否则， 纸卷盖可能意外合上， 而将手指夹住。
确保纸张从排纸导板中笔直退出， 如图所示。 如果由于障碍等原因致使纸张未笔直退出， 可能会
网页
Web 导致打印结果变形。
EN
http://download.epson-biz.com/?service=pos
CAUTION:
Do not tilt the printer with the roll paper cover open. The roll paper cover may close unexpectedly, and your fingers
may be caught.
Make sure paper is ejected straight from the paper ejection guides, as shown in the illustration. If paper is not ejected
straight due to such causes as an obstruction, the print result may be distorted.
①
取出纸张
卷筒式记录纸
EN
By using the Install Navi, you can easily set up the printer.
Download it from the Web or start it from the CD, and set
up the printer by following the instructions.
It guides you up to the installation of the maintenance
box.
Do not turn the power on until you are instructed to do so
by the Install Navi.
②
设定打印机驱动程序
打开/ON 打开/ON
打开/ON
网页
Web
Ethernet
③
设定挡板
SC
请按照纸宽打开/关闭挡板。
③
SC 如果挡板设定不正确， 纸张可能发生卡
②
请从网页下载打印机驱动程序
塞或被弄脏。
并进行安装。
EN
Download printer driver from the Web,
① then install it.
Installing/Replacing Paper
Removing paper
折叠式记录纸
Roll paper Fanfold paper
Setting the printer driver
打开/ON 打开/ON
关闭 /
OFF
Setting the shutter
EN
Open/close the shutter in accordance with the
paper width.
If the shutter is set incorrectly, paper may be
jammed or get dirty.
