INSTALLATION
This flueing system in combination with the IP28 unit has been tested and listed as a power flue system by the Australian Gas Association.
The termination location must conform to AS5601 as per the diagram in the "Flue Termination Location" section of the manual.
Masonry and Mock Fireplace Installations:
IP28 must be fitted with the venting and terminal provided.
Ensure cavity is prepared and ready to accept unit and proper measurements are taken to ensure proper vent length and sealing of the terminal and vent-
ing.
Preparation of venting for Installation

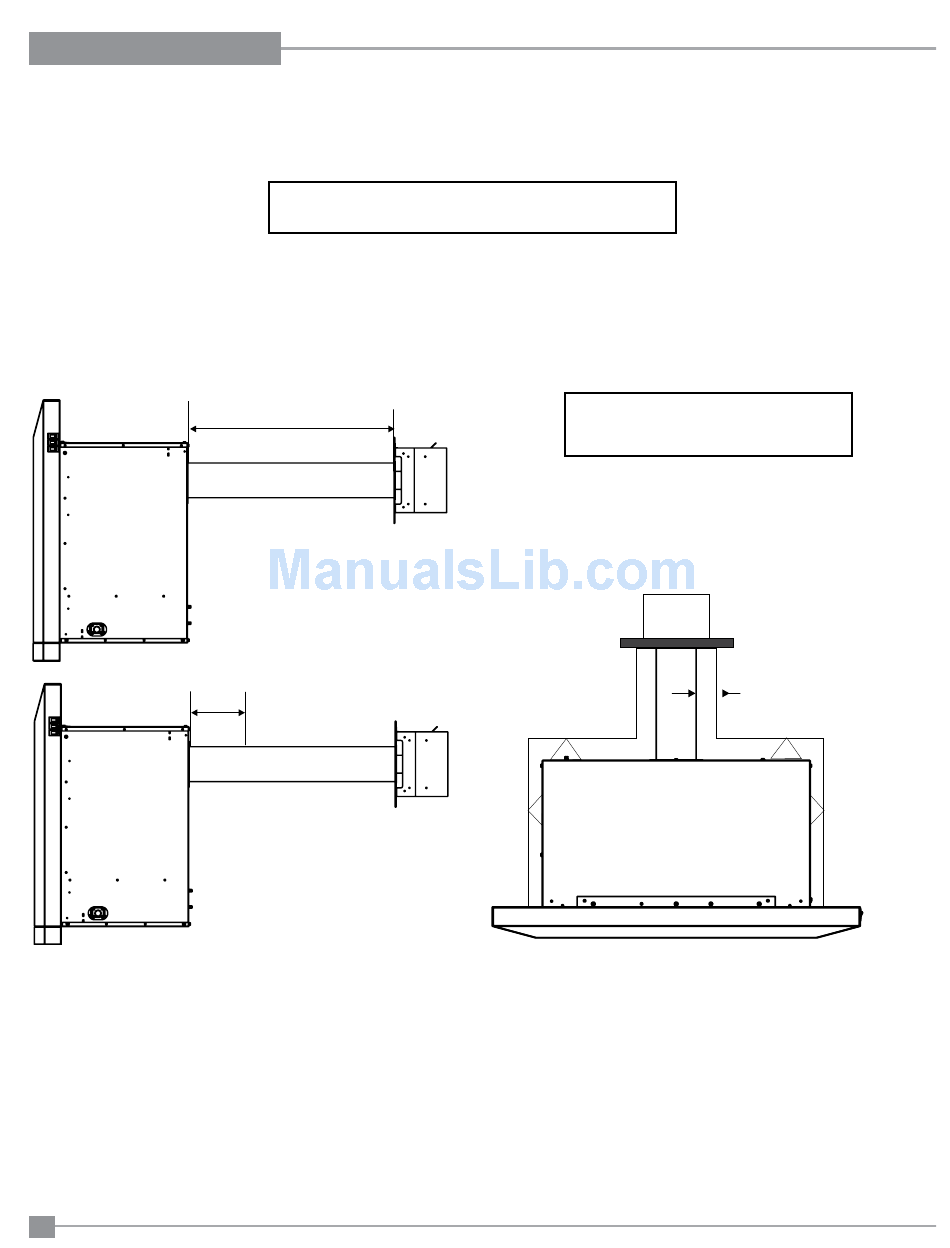

Maximum and minimum vent lengths:
MAX LENGTH: 605mm
MIN LENGTH: 130mm
NOTE: All vent lengths must have 0.4 degree slope downwards.
130mm
CLEARANCES TO COMBUSTIBLES:
1)
Install inlet tube to back of unit with screws provided and mark ''cut line''. Remove inlet tube from unit and cut tube to proper length to ensure
sealing at the terminal end.
2) Do the same as above for the outer tube. Secure to unit, ''mark cut line'', remove from unit, and cut tube to proper length to ensure sealing at the
terminal end.
3) Re-install both the inner exhaust tube and outer fresh air tube to the unit.
Be sure not to damage the gasketing. Ensure both the inner and the outer are flush on the ''terminal side'' and measurements are correct.
Once the venting is properly secured to the unit at the correct measurements for the cavity, the unit is now ready for installation.
14

VENTING AND TERMINATION

Venting cannot be run vertically.
Venting must have slight downward slope towards terminal.
24"
605mm
5"
10mm is required all around the outer pipe.
THIS UNIT MUST ALWAYS
TERMINATE / VENT DIRECTLY TO THE
OUTDOORS.
10mm
