INSTALLATION
If required, an optional infi ll panel is available to cover larger openings.

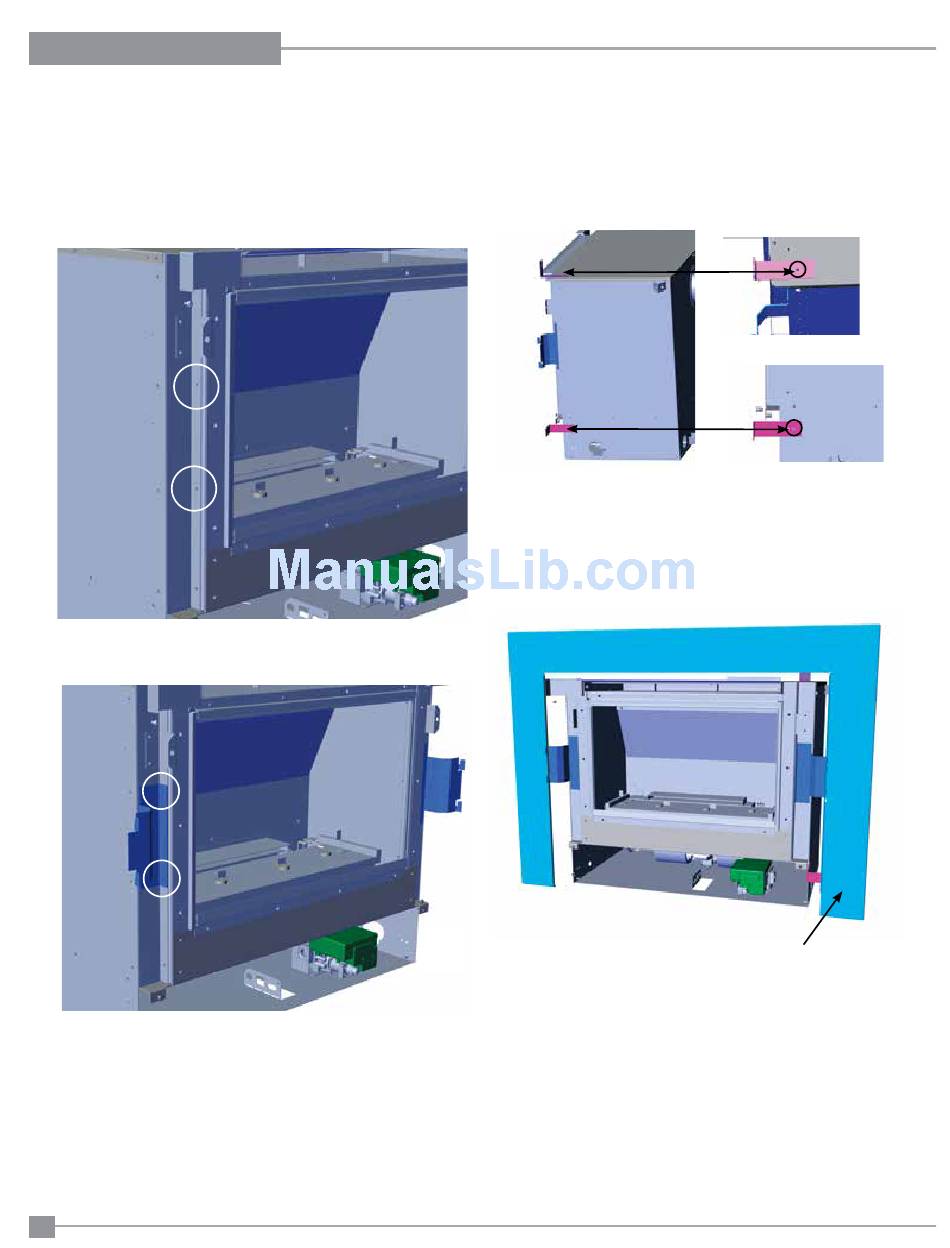

1. Remove 2 screws on each side of the unit from locatiions shown below.
2. Install a mounting bracket on each side of the unit, in the same loca-
tion as where screws removed.
28
918-973a

OPTIONAL INFILL PANEL INSTALLATION

OPTIONAL INFILL PANEL INSTALLATION
3. Install 4 support brackets, two on the side, and two on the top of the
unit as shown below.
NOTE: Support brackets are only required for masonary installations.
4. Hook the infi ll panel onto the brackets installed in Step 2.
5. Please see Modular Faceplate instructions to complete installation.
NOTE: Infi ll panel is required for mock fi replace applications and optional
for masonry applications when installing Modular faceplate.
1
IP28
Top Bracket: Use Front Screw Hole
Side Bracket: Use Back Screw Hole
Infi ll Panel
