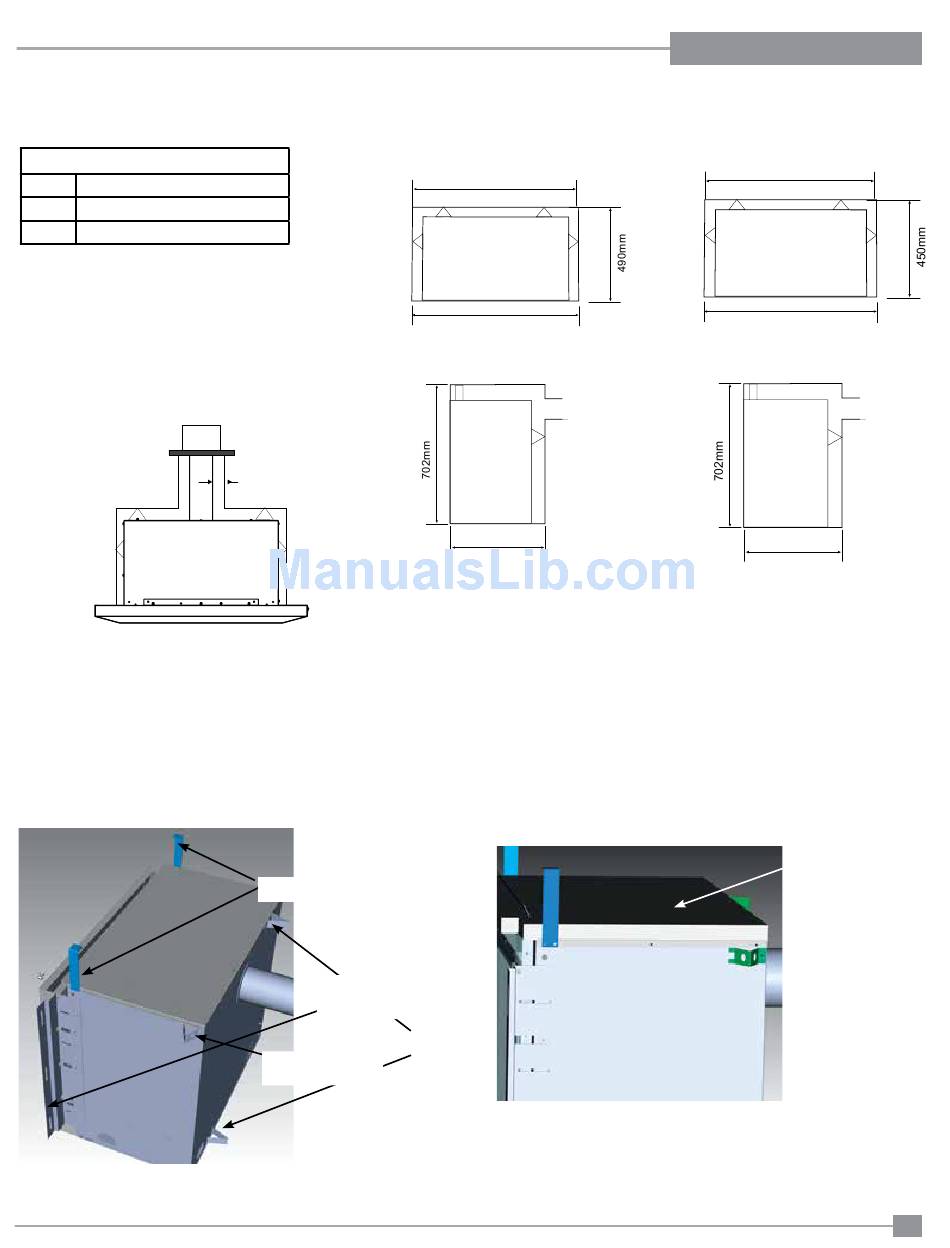

MOCK FIREPLACE KIT (ZERO CLEARANCE) INSTALLATION

MOCK FIREPLACE KIT (ZERO CLEARANCE) INSTALLATION
Zero Clearance Kit
6 Standoffs
2 Side Brackets
1 Insulation Blanket
COMBUSTIBLE MOCK FIREPLACE KIT INSTALLATION:
Minimum cavity size for Low profi le faceplate:
702mm Height x 770mm Width x 490mm Depth
Minimum cavity size for Contemporary faceplate:
702mm Height x 770mm Width x 450mm Depth
VENTING CLEARANCES: 10mm is required all around
venting
INSTALLATION OF MOCK FIREPLACE KIT:
1)
Install top two 110 mm stand offs to the top of unit.
Install two 67 mm stand offs to the back of unit - install two 55 mm stand offs to the each side of unit.
2) Install left and right side nailing fl ange.
3)
Lay insulation blanket on top of unit so it is fl ush and tight against backside of faceplate.
4)
Unit is now ready for install into a combustible cavity that has the above mentioned clearances.
NOTE: Please adjust nailing fl anges in relationship to either Contemporary or Low Profi le Faceplate. Faceplate needs to be fl ush against fi nished wall.
Regency IP28 Gas Inbuilt Fireplace
918-971
10mm
Top standoffs x 2
Side Nailing Flange x 2
1 on each left & right
Back standoffs x 2
Side standoffs x 2
1 on each side
Low Profi le Fascia
770mm
770mm
490mm
1
IP28
INSTALLATION
Contemporary Fascia
770mm
770mm
490mm
Insulation blanket
11
11/24/10
