INSTALLATION
NOTE: The weather box to be installed ONLY in conjunction with the "Mock Fireplace Kit"
KIT # 456-940 Contains:
456-124 Cover External LH
456-125 Cover External RH
456-128 Cover External Top
456-129 Cover External Bottom
456-130 Cover External Back
440-420F Plate Gas Line Cover
456-126 Insulation Back
456-127 Insulation Sides
904-643 Screw 10 x 1/2 Hex

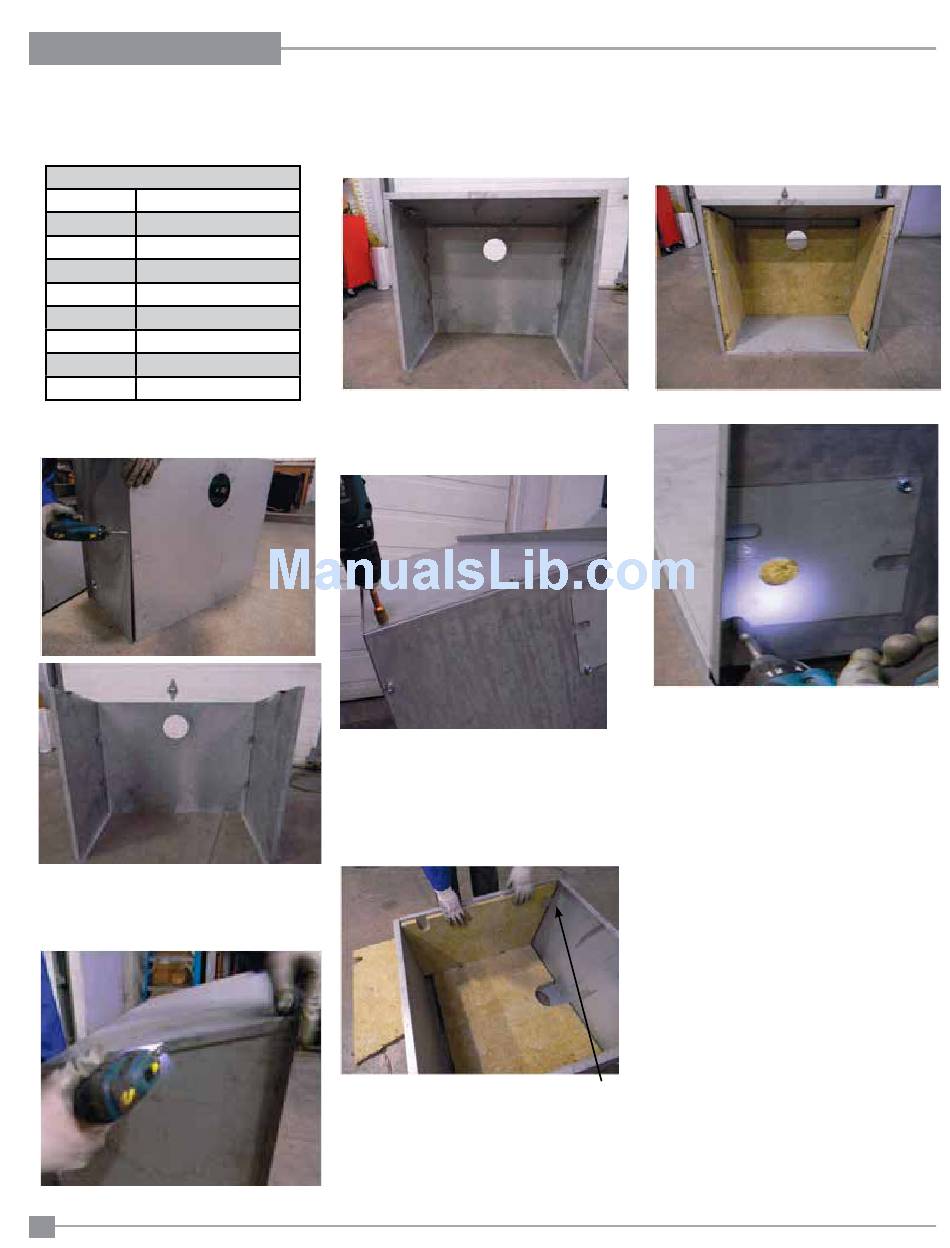

1. Attach the side to the back with 4 screws on
each side.
Side panels attached to back
2. Attach the top to the sides with 3 screws on
each side.
Attach top to sides
20
919-192
OPTIONAL WEATHER BOX INSTALLATION
OPTIONAL WEATHER BOX INSTALLATION
3. Attach the bottom to the sides with 3 screws
on each side.
Ensure return edge is on the inside.
Attach bottom to sides
4. Install back insulation fi rst, when in place,
bend over 4 securing tabs. Install left and right
sides bending over three tabs each side to
secure.
Install insulation - secure by bending
Tab
tabs
1
5. Add gas cover plate, if required.
6. With the weather box assembled, secure to
the outside wall with screws.
7. Ensure weather box is sealed against
weather/water ingress etc
8. Before installing unit, ensure fl ue length, gas
and electrical routing have all been consid-
ered.
9. Install unit.
