SPECIFICATIONS

Camera
Image pickup device : 1/2.5-inch CMOS sensor
Effective pixels : 16:9 1920 (H) x 1080 (V), 4:3 1600 (H) x 1200 (V)
Lowest image illumination : 50IRE: 2.0 lx (at F1.8, color mode, high gain)
Lowest image illumination :
50IRE: 0.1 lx (at F1.8, black-and-white mode, high gain)
Video S/N ratio : 50 dB (when AGC is "OFF")
Lens : Focal length: f=6.3 - 63 mm, F number: F1.8 -2.5
Optical zoom 10x, electronic zoom 16x (up to 160x when used in combination with the optical zoom)
Rotational scope : Pan: 360 ° endless pan
Tilt: -20 to +200 °
Rotation speed : Pan: Max. 420 °/sec.
Tilt:Max. 360 °/sec. (0.1 to 120°/sec during manual operation)
Preset position : Max. 255
Auto mode : Sequential, auto pan, tour, automatic return
Day/Night function : Auto, color, black-and-white, alarm input switching
White balance : Auto (ATW), one push (AWC), manual (R/B gain adjustable),indoor, outdoor, fluorescent
Backlight compensation : Multi-spot evaluative metering, center-weighted evaluative metering, masking, face detection
Electronic sensitivity boosting : Auto (32 x max) or Off
Electronic shutter : 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (VCC-MCH5600P, VCC-HD5600PC)
Electronic shutter :
1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (VCC-MCH5600)
Electronic shutter :
Long exposure shutter (1x, 2x, 4x, 8x, 16x, 32x)
Iris : AUTO/MANUAL (electronic iris: ON/OFF)
Camera settings : Up to 8 patterns of monitoring conditions are configurable
AGC gain : Normal/ Middle/ High (Manual gain setting possible at Off)
Gamma correction : 0.45, 1, Mode 1, Mode 2
Aperture compensation : On/Off (Correction level adjustable)
VIVID COLOR EFFECT : ON/OFF
DNR (digital noise reduction) : ON/OFF
Image inversion : H/V/HV/OFF
Privacy mask : On/Off, up tp 32 positoons
Motion sensor : On (detection area setting,video analytics)/ Off, face detection function
Auto pursuit : On/Off
Sway compensation : On/Off
Language selection : English, French, German, Spanish, Japanese
Operating ambient temperature/humidity : Temperature: -10 °C - + 50 °C (14°F - 122°F)
Operating ambient temperature/humidity :
Humidity: less than 90 % RH (no condensation)
Weight (approx.) : A Camera unit: approx. 1340 g/47.3 oz
Weight (approx.) :
B Surface cover: approx. 110 g/3.9 oz

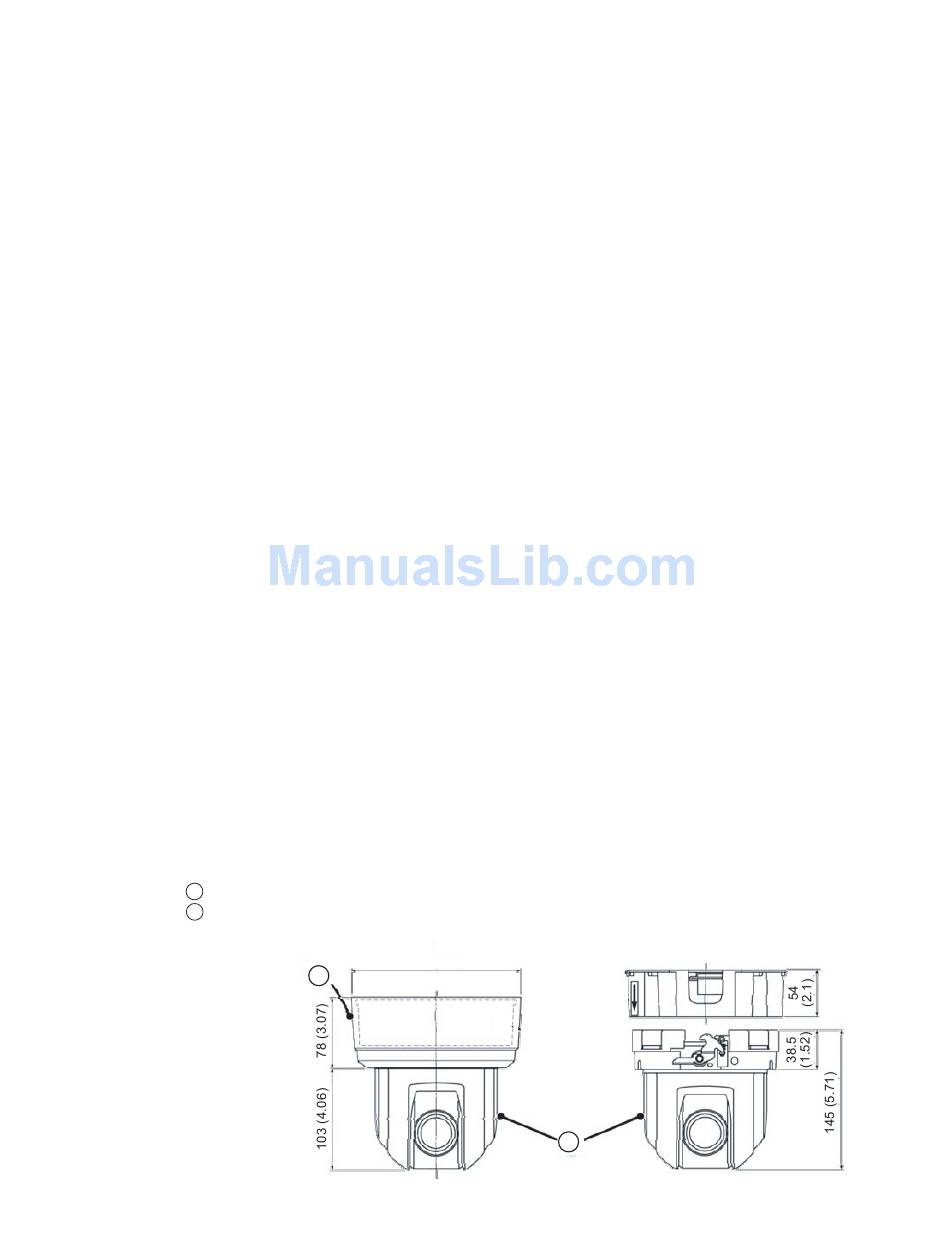

Dimensions [mm/(inch)] :
192 (7.56)
