AF_I_MID4: ZIM4
ZIM4: infinity adjustment value of focus at zoom position
middle4 (-165<=ZIM4<=241)
AF_I_MID5: ZIM5
ZIM5: infinity adjustment value of focus at zoom position
middle5 (-232<=ZIM5<=300)
AF_I_MID6: ZIM6
ZIM6: infinity adjustment value of focus at zoom position
middle6 (-280<=ZIM6<=342)
AF_I_TELE: ZIT
ZIT: infinity adjustment value of focus at zoom position
tele (-230<=ZIT<=324)
QR_Z_WIDE: QRZW
QRZW: adjustment value of zoom written on QR code
(-102<=QRZW<=-75)
QR_F_I_WIDE: QRFW
QRFW: adjustment value of focus position wide written on
QR code (-63<=QRFW<=261)

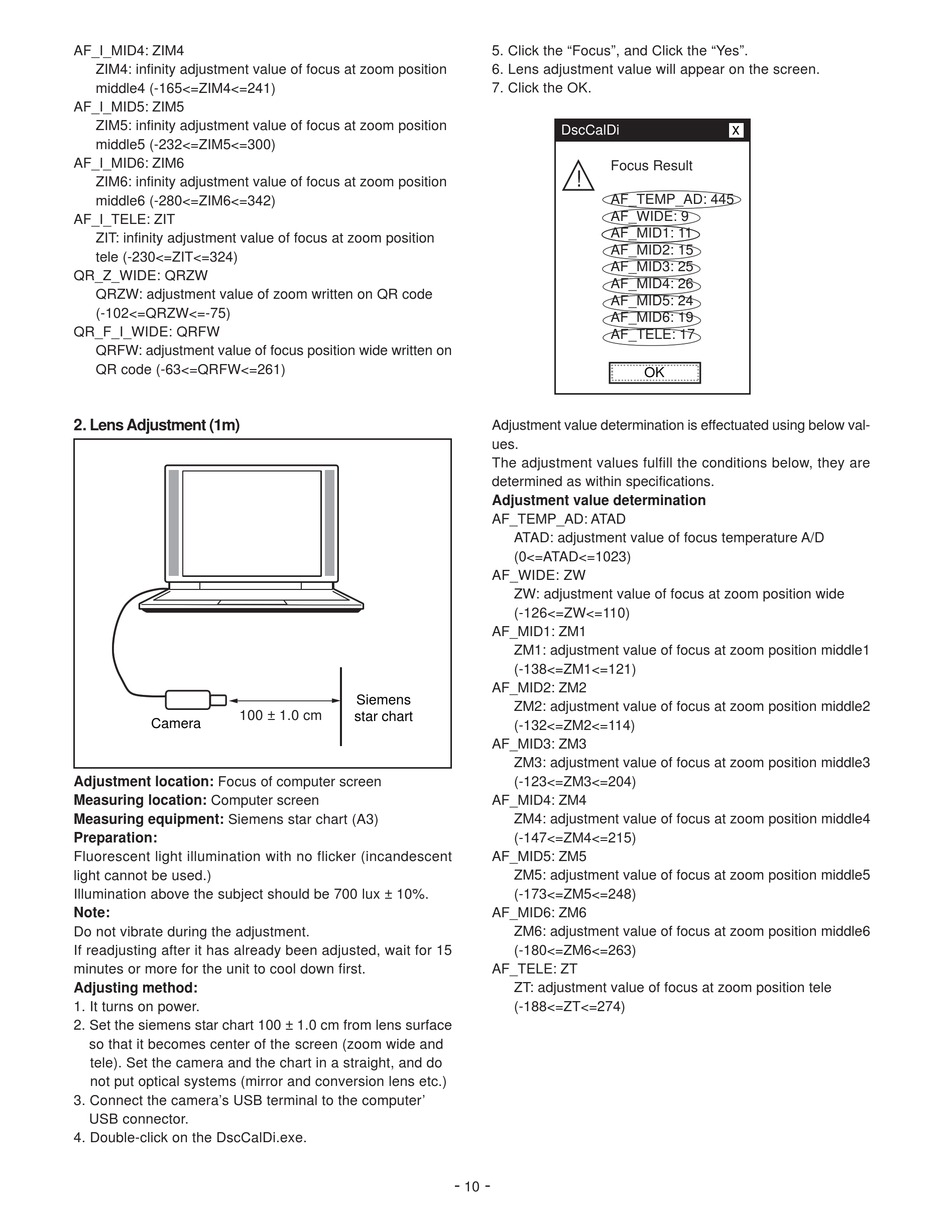

2. Lens Adjustment (1m)
100 ± 1.0 cm
Camera
Adjustment location: Focus of computer screen
Measuring location: Computer screen
Measuring equipment: Siemens star chart (A3)
Preparation:
Fluorescent light illumination with no flicker (incandescent
light cannot be used.)
Illumination above the subject should be 700 lux ± 10%.
Note:
Do not vibrate during the adjustment.
If readjusting after it has already been adjusted, wait for 15
minutes or more for the unit to cool down first.
Adjusting method:
1. It turns on power.
2. Set the siemens star chart 100 ± 1.0 cm from lens surface
so that it becomes center of the screen (zoom wide and
tele). Set the camera and the chart in a straight, and do
not put optical systems (mirror and conversion lens etc.)
3. Connect the camera's USB terminal to the computer'
USB connector.
4. Double-click on the DscCalDi.exe.
Siemens
200 cm
star chart
5. Click the "Focus", and Click the "Yes".
6. Lens adjustment value will appear on the screen.
7. Click the OK.
DscCalDi
Focus Result
!
AF_TEMP_AD: 445
AF_WIDE: 9
AF_MID1: 11
AF_MID2: 15
AF_MID3: 25
AF_MID4: 26
AF_MID5: 24
AF_MID6: 19
AF_TELE: 17
Adjustment value determination is effectuated using below val-
ues.
The adjustment values fulfill the conditions below, they are
determined as within specifications.
Adjustment value determination
AF_TEMP_AD: ATAD
ATAD: adjustment value of focus temperature A/D
(0<=ATAD<=1023)
AF_WIDE: ZW
ZW: adjustment value of focus at zoom position wide
(-126<=ZW<=110)
AF_MID1: ZM1
ZM1: adjustment value of focus at zoom position middle1
(-138<=ZM1<=121)
AF_MID2: ZM2
ZM2: adjustment value of focus at zoom position middle2
(-132<=ZM2<=114)
AF_MID3: ZM3
ZM3: adjustment value of focus at zoom position middle3
(-123<=ZM3<=204)
AF_MID4: ZM4
ZM4: adjustment value of focus at zoom position middle4
(-147<=ZM4<=215)
AF_MID5: ZM5
ZM5: adjustment value of focus at zoom position middle5
(-173<=ZM5<=248)
AF_MID6: ZM6
ZM6: adjustment value of focus at zoom position middle6
(-180<=ZM6<=263)
AF_TELE: ZT
ZT: adjustment value of focus at zoom position tele
(-188<=ZT<=274)
-
-
10
x
OK
