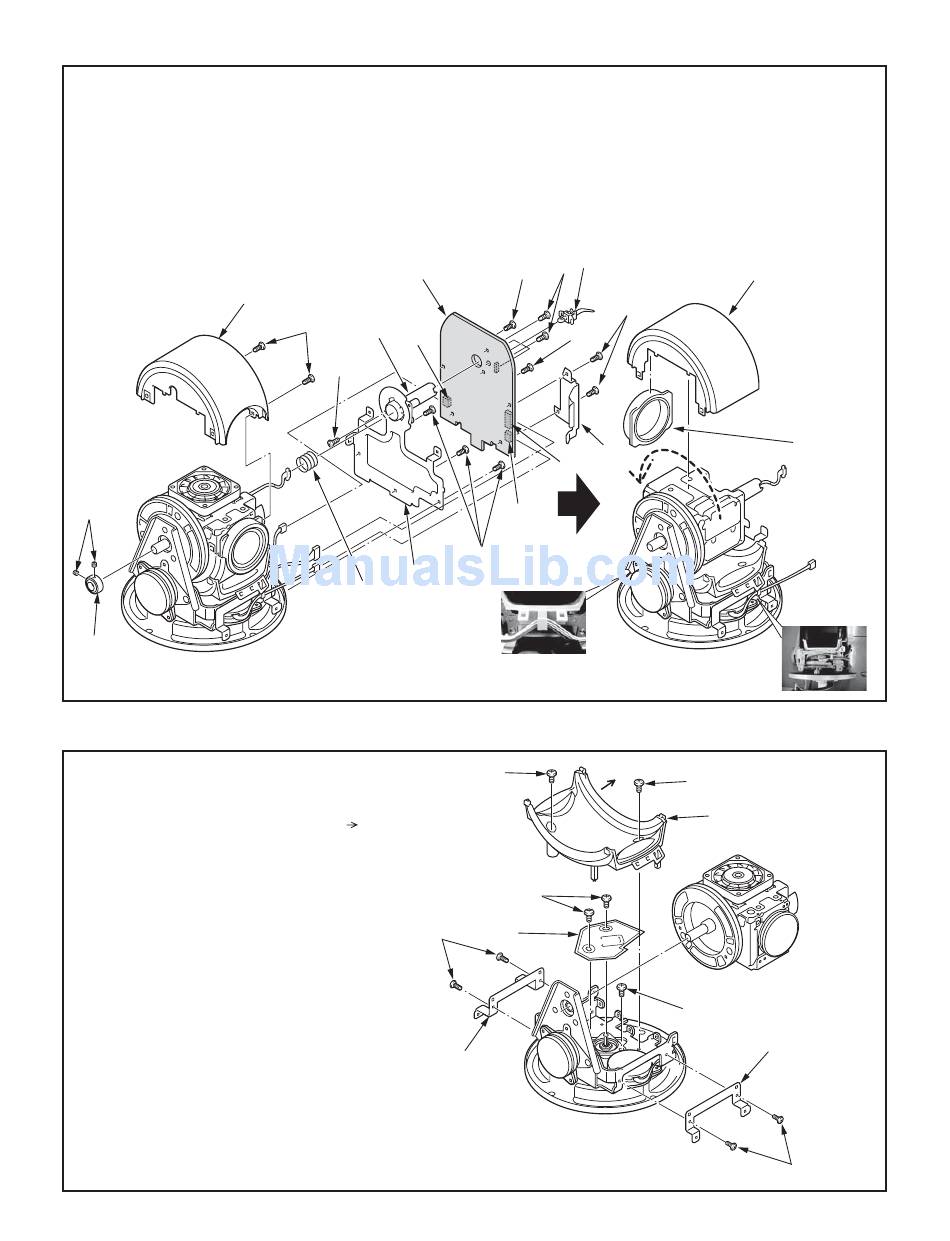

1-2. REMOVAL OF SY-1 BOARD
1. Fixer band SG
2. Two screws 2 x 6
3. Sheld connector
4. Connector (CN403)
5. Connector (CN404)
6. Connector (CN405)
7. Two screws 2 x 6
19
20
1-3. REMOVAL OF CHASSIS
1. Two screws 3 x 6
When assembling, pushes in the direction of the
arrow and tighten the screws order. A
2. Cover pan bottom
3. Two screws 3 x 6
4. Spacer slip ring
5. Screw 3 x 6
6. Two screws 2 x 6
7. Holder chassis B
8. Two screws 2 x 6
9. Holder chassis F
8. Two screws 2 x 6
9. SY-1 board
10. Three screws 2 x 6
11. Chassis sub pan
12. Spring, COMP tilt
13. Screw 2 x 6
14. Holdr, Cable state
9
16
15
14
4
13
11
12
B
8
15. Two screws 2 x 6
16. Cover tilt bottom
17. Cover tilt top
18. Dec lens
19. Two screws 3 x 3
20. Mounting, Bearing
1
7
8
2
8
3
6
5
10
1
B
3
4
9
-
-
5
17
18
1
A
2
5
7
6
