2-5. Adjustment
1. Lens Adjustment (Infinity)
Camera
Adjustment location: QrCode of computer screen, Infinity
Cal. of computer screen
Measuring location: Computer screen
Measuring equipment: Collimator
Preparation:
If using a ready-made collimator, set to infinity.
Note:
Do not vibrate during the adjustment.
If readjusting after it has already been adjusted, wait for 15
minutes or more for the unit to cool down first.

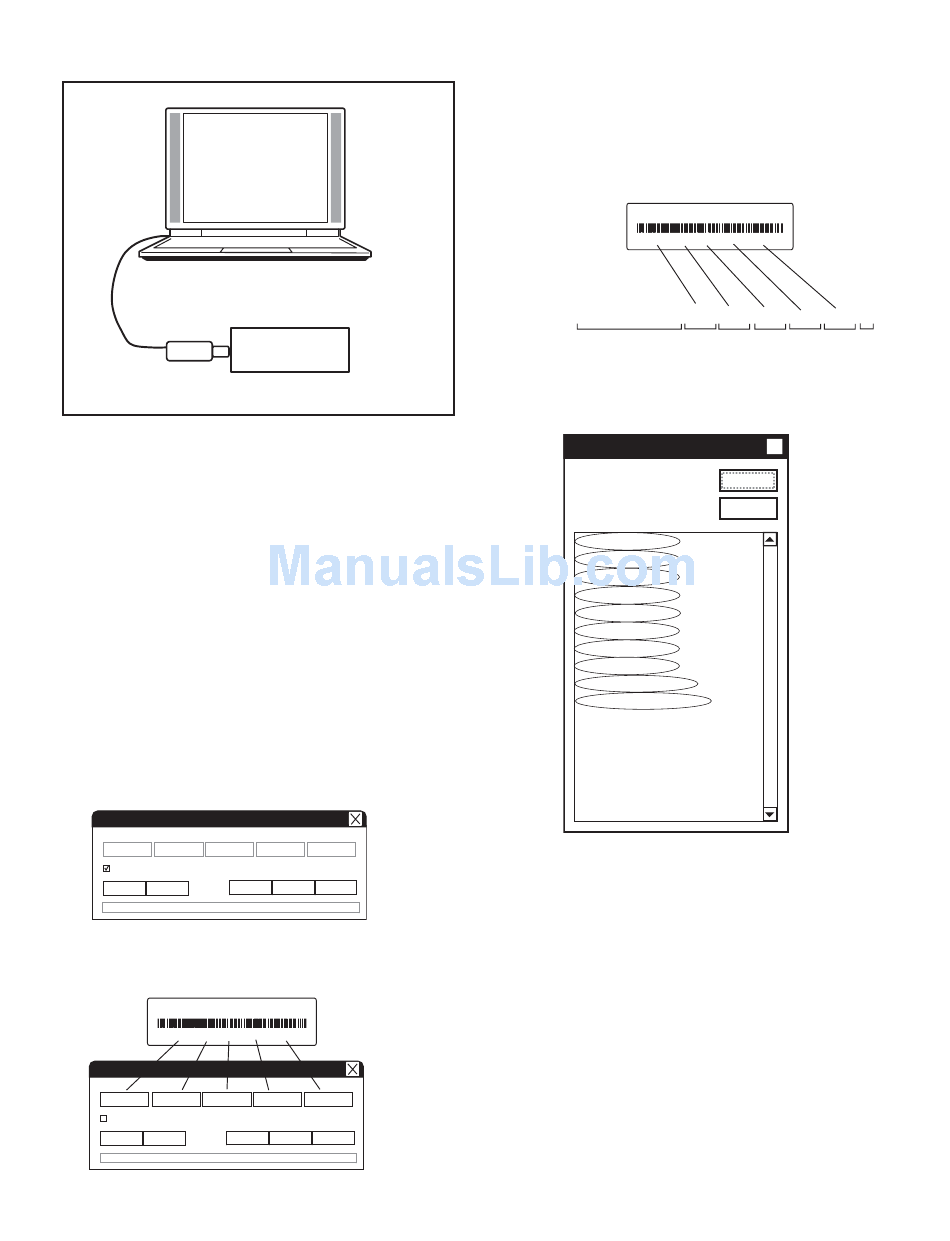

Adjusting method:
1. It turns on power.
2. Set the camera so that it becomes center of the screen in
the collimator.(Tele and Wide)
3. Connect the camera's USB terminal to the computer'
USB connector.
4. Double-click on the DscCalDi.exe.
5. Click the "QrCode".
6. QrCode Input Dialog display will be displayed.
QrCode Input Dialog
Bar code Input
Save
Load
Status:
7. Deselect Bar code Input.
8. Enter the alphanumeric characters which are underneath
the bar code which is included with the lens.
B086 A079 B374 B086 A079
QrCode Input Dialog
B086
A079
B374
Bar code Input
Save
Load
Get
Status:
Collimator
Get
Execute
OK
NO. 1032A
B086
A079
Execute
OK
9. Click the Execute.
10. Click the OK.
11. Select "Infinity Cal." on the LCD "Test", and click the "Yes".
12. Lens infinity adjustment value will appear on the screen.
13. Click the OK.
Note:Bar code and QrCode
Bar code
QrCode
Read character
K A 0 7 2 2 2 0 0 0 1 A B 0 8 6 A 0 7 9 B 3 7 4 B 0 8 6 A 0 7 9 0 0
Digit number
1-12
2. Lens Adjustment (1m) is carried out after this adjust-
ment.
Dsc Calibration
Infinity calibration :
AF_I_WIDE: 24
AF_I_MID1: 23
AF_I_MID2: 23
AF_I_MID3: 23
AF_I_MID4: 14
AF_I_MID5: 5
AF_I_MID6: -4
AF_I_TELE: -15
QR_Z_WIDE: -86
QR_F_I_WIDE: 131
QR_F_I_TELE: -304
QR_Z_AORI: -86
QR_F_I_AORI: 131
IRIS_GAIN: 94
IRIS_OFFSET: 14
Adjustment value determination is effectuated using below val-
ues.
The adjustment values fulfill the conditions below, they are
determined as within specifications.
Adjustment value determination
AF_I_WIDE: ZIW
ZIW: infinity adjustment value of focus at zoom position
wide (-126<=ZIW<=110)
AF_I_MID1: ZIM1
ZIM1: infinity adjustment value of focus at zoom position
middle1 (-138<=ZIM1<=121)
AF_I_MID2: ZIM2
ZIM2: infinity adjustment value of focus at zoom position
middle2 (-132<=ZIM2<=114)
AF_I_MID3: ZIM3
ZIM3: infinity adjustment value of focus at zoom position
middle3 (-128<=ZIM3<=209)
-
-
9
NO. 1032A
B086 A079 B374 B086 A079
13-16 17-20
21- 24 25-28 29-32 33-34
x
OK
Copy
