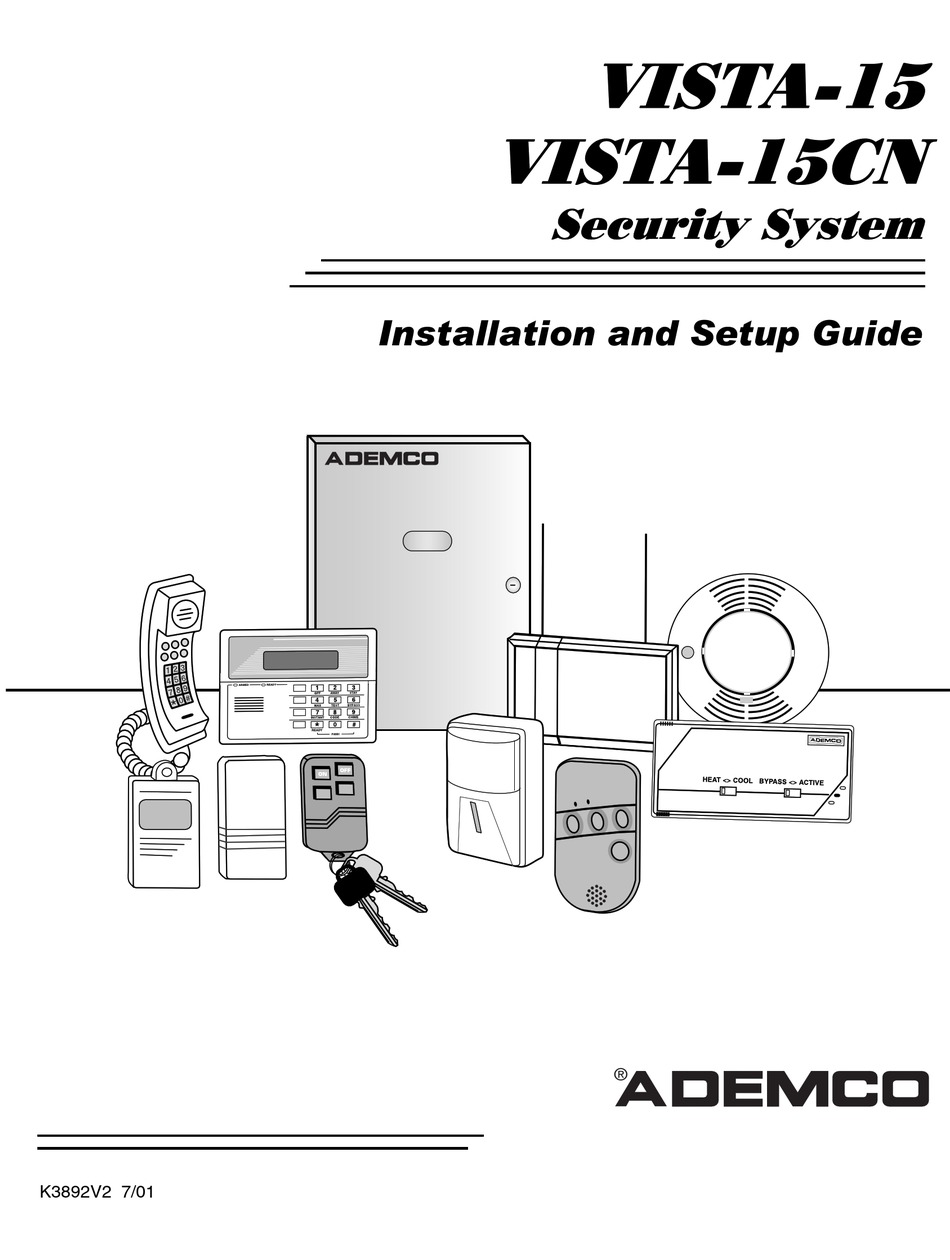

  • Page 1 9,67$ 9,67$&1 6HFXULW\6\VWHP ,QVWDOODWLRQDQG6HWXS*XLGH ® K3892V2 7/01...

  • Page 2: Recommendations For Proper Protection

    RECOMMENDATIONS FOR PROPER PROTECTION The Following Recommendations for the location of Fire and Burglary Detection Devices Help Provide Proper Coverage for the Protected Premises. Recommendations for Smoke and Heat Detectors With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's (NFPA) Standard #72 noted below.

  • Page 3: Table Of Contents

    Table of Contents • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Table of Contents..................................
  • Page 4 SECTION 7 Output Device Programming ........................7–1 Programming Options Defined............................7–1 Programming Output Relays and Powerline Carrier Devices ..................7–2 SECTION 8 Zone Lists ...............................8–1 About Zone List Menu Mode.............................8–1 Zone List Displays................................8–1 Cross Zoning - Zone List 04 ..............................8–1 NIGHT-STAY - Zone List 05 ............................8–2 SECTION 9 Alpha Descriptor Programming .......................9–1 About Alpha Descriptor Programming..........................9–1 Zone Descriptors................................9–1...

  • Page 5: List Of Figures

    List of Figures • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Figure 1.

  • Page 6: Conventions Used In This Manual

    This symbol warns of conditions that could seriously affect the operation of the system, or cause damage to the system. Please read each warning carefully. This symbol also denotes warnings about physical harm to the user. PRODUCT MODEL NUMBERS: Unless noted otherwise, references to specific model numbers represent ADEMCO products.

  • Page 7: Section 1 Introduction

    S E C T I O N Introduction • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • The VISTA-15/VISTA-15CN control with the following major features : Features Basic Hardwired Zones...
  • Page 8 1321/1321CN AC Transformer. Optional VIP Module • The VISTA-15/VISTA-15CN supports the ADEMCO 4285/4286 VIP Module (refer to Section 8: 4285/4286 VIP Module for further information). • Provides access to the system via on-premises or off-premises phones for arming, disarming, etc., plus control of relay outputs and Powerline Carrier devices.
  • Page 9 The loss of the line can optionally cause a local display, or a display and trouble sound. Event Logging Keeps a record of up to 48 selected events in a history log. All control and readout from the log is done via ADEMCO COMPASS software only.
  • Page 10 VISTA-15/VISTA-15CN Installation and Setup Guide 1–4...

  • Page 11: Section 2 Mounting And Wiring The Control

    Cabinet and Lock Mount the control cabininet to a sturdy wall in a • Use an ADEMCO No. N6277 Cam Lock and No. clean, dry area which is not readily accessible to N6277–1 Push-On Clip (Retainer Clip). the general public using fasteners or anchors ( not •...

  • Page 12: Mounting The Pc Board With Rf Receiver

    VISTA-15/VISTA-15CN Installation and Setup Guide Notes Mounting the PC Board with RF Receiver Remove the receiver board from its case, then • Do not mount the cabinet on or near metal objects. insert the top of the board into the slots at the top This decreases RF range and/or block RF of the cabinet, as shown in Figure 3, Detail A.

  • Page 13: Wiring To Keypads

    Section 2: Mounting and Wiring the Control Notes Wiring to Keypads Connect keypads to the control’s keypad terminals • Fixed-Word Display: 6128, 6128RF as shown in the Summary of Connections • Alpha Display: 6139 diagram. • Be sure the keypads are set to the non-addressable Determine wire gauge using the Wiring Run mode (address 31).

  • Page 14: Sounder (Bell) Connections

    VISTA-15/VISTA-15CN Installation and Setup Guide Notes Sounder (Bell) Connections Make sounder connections to alarm output terminals 3 (+) and 4 (–). For supervised output, This control complies with NFPA requirements for continue with steps 2 and 3. temporal pulse sounding of the notification appliances. Temporal pulse sounding for a fire alarm consists of: 3 Cut the red Bell Supervision Jumper located pulses –...

  • Page 15: Wiring The Ac Transformer

    Section 2: Mounting and Wiring the Control Notes Wiring the AC Transformer • Use caution when wiring the transformer to the 1321/1321CN Transformer control panel to guard against blowing the fuse inside Connect the 1321/1321CN Transformer to terminals 1 and the transformer (the fuse is nonreplaceable).

  • Page 16: Earth Ground

    VISTA-15/VISTA-15CN Installation and Setup Guide ** In UL installations, maximum current draw from the Auxiliary Output and the Alarm Output combined must not exceed 600mA. ‡ Figures are for relays OFF/relays ON. Notes Earth Ground The designated earth ground terminal (25) must be Metal Cold Water Pipe: terminated in a good earth ground for the lightning Use a noncorrosive metal strap (copper is recommended)

  • Page 17: Hardwire Zones

    In UL installations, only zone 1 may be used as The 2000-ohm EOLR must be connected across the loop a fire zone. In addition, an ADEMCO Model 610–7 must wires at the last device. be used as the end-of-line resistor at the last detector.

  • Page 18: 4219/4229 Expansion Zones

    VISTA-15/VISTA-15CN Installation and Setup Guide Notes 4219/4229 Expansion Zones 1. Connect the module to the control's keypad terminals. • You can add 8 wired EOLR zones to the basic control's 2 . Set the 4219 or 4229's DIP switch for device address 6 zones, for a total of 14 wired zones, by using a 4219 “1”...

  • Page 19: Installing The Rf Receiver

    Section 2: Mounting and Wiring the Control Notes Installing the RF Receiver 1. Set the receiver's DIP switch for device address “00”, as • You must use one of the following receivers: described in its instructions (all switches to the left, the RF Receiver No.of Zones “off”...

  • Page 20: Installing The Transmitters

    VISTA-15/VISTA-15CN Installation and Setup Guide Notes Installing the Transmitters To be sure of the transmitter’s signal at the • Refer to the table of compatible devices at the back of proposed mounting location is adequate, perform this manual. a Go/No Go Test, described in the Testing the System section.
  • Page 21 Section 2: Mounting and Wiring the Control Programming an RF House ID ✱ Programming an RF House ID (01–31) in field 24 is necessary only if you are using 5827 or 5827BD Wireless Keypads or 5804BD Transmitters. An RF House ID is not necessary for other 5800 Series Transmitters, and the entry should be left at 00 (default) in those cases.

  • Page 22: Connecting Relay Modules

    VISTA-15/VISTA-15CN Installation and Setup Guide Setting DIP Switches on the 5827 Transmitter(s) You must set a 5827 Transmitter to the programmed House ID, using its DIP switches. HOUSE DIP SWITCH POSITION HOUSE DIP SWITCH POSITION SWITCH UP FOR "ON" SWITCH DOWN FOR "OFF" SHOWN SET FOR HOUSE ID # 30 Notes...

  • Page 23: Power Line Carriers

    Section 2: Mounting and Wiring the Control Notes Power Line Carriers Install the powerline carrier devices according to • When using Powerline Carrier devices, you must use a the instructions included with each. 4300 Transformer instead of the 1321/1321CN Use Programming Mode to enter the device house Transformer.

  • Page 24: Phone Line/Phone Module Connections

    VISTA-15/VISTA-15CN Installation and Setup Guide Notes Phone Line/Phone Module Connections Connect incoming phone line and handset wiring • Use 4285 or 4286 Phone Modules. to the main terminal block (via RJ31X jack) as • Only one VIP Module can be used in this security shown in the Summary of Connections diagram at system.

  • Page 25: Long Range Radio Connections

    Section 2: Mounting and Wiring the Control Notes Long Range Radio Connections Connect the data in/data out terminals and voltage input terminals of the Long Range Radio to the control’s keypad For UL installations, Long Range Radio must be connection points. disabled (✱29 = 0).
  • Page 26 VISTA-15/VISTA-15CN Installation and Setup Guide 2–16...

  • Page 27: Section 3 Programming Overview

    S E C T I O N Programming Overview • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Programming Characteristics for each installation are stored in nonremovable, electrically erasable, non-volatile EEPROM memory.

  • Page 28: Reviewing A Data Field/Erasing An Entry

    VISTA-15/VISTA-15CN Installation and Setup Guide 3. If the number of digits that you need to enter in a data field is less than the maximum digits ✱ available (for example, the phone number field), enter the desired data, then press [ ] and the next data field number to be programmed.

  • Page 29: Section 4 Zone Response Type Definitions

    S E C T I O N Zone Response Type Definitions • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Zone Type Definitions You must assign to each zone a zone type, which defines the way in which the system responds to faults in that zone.
  • Page 30 VISTA-15/VISTA-15CN Installation and Setup Guide Type 08 This zone type sends a report to Central Station and provides an alarm sound at the keypad. (No bell output is provided). This zone type is usually assigned to a zone 24-hour containing a button for use in personal emergencies, or to a zone containing monitoring Auxiliary Alarm devices such as water or temperature sensors.

  • Page 31: Section 5 Data Field Programming

    S E C T I O N Data Field Programming • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Data Field Programming The following pages list all this control’s data fields in numerical order.

  • Page 32: Zone Sounds And Timing (*31 - *39)

    VISTA-15/VISTA-15CN Installation and Setup Guide FIELD TITLE and DATA ENTRIES EXPLANATION Long Range Radio Output (7720PLUS/7820/7835C) Entering a 0 disables this feature; a number other than 0 enables this feature. Entry is first digit of Trouble Dialer report; enter Trouble code 1–9, If output to Long Range Radio (LRR) is selected here, all messages B (# +11), C (# +12), D (# +13), E (# +14), or F (# +15).

  • Page 33: Dialer Programming (*40 - *52)

    Section 5 - Data Field Programming FIELD TITLE and DATA ENTRIES EXPLANATION The system waits the time entered before it sounds an alarm upon Exit Delay 2 entering. 0 = 30-second delay 4 = 120-second delay UL installations: Must be set for a maximum of 45 seconds 1 = 45-second delay 5 = 180-second delay 2 = 60-second delay...
  • Page 34 For an explanation of these formats, see Section 21: System Report Format Communication 0 = 3+1; 4+1 ADEMCO Low Speed Standard Prim. NOTE: The maximum number of Alarm and Alarm Restore reports during Sec. one armed period is determined by field •93.

  • Page 35: Zone Assignment Alarm Report Codes (✱ 56 & ✱ 58)

    Section 5 - Data Field Programming FIELD TITLE and DATA ENTRIES EXPLANATION Test Report Code entered in field •64 is sent. Reports with Subscriber Periodic Test Report 0 = no test report 1 = once every 24 hours 2 = weekly 3 = once every 30 days Test Report Offset This is the time to first report from Programming mode or downloading.

  • Page 36: System Status Report Codes ( ✱ 59- ✱ 68)

    An entry of 0 in the second box eliminates the expanded message for that report. With ADEMCO Contact ID Reporting: Enter a digit in the first box to enable the zone to report. Use a different digit for each zone until you have used up available digits. If the number of zones exceeds the number of available digits, begin with digit 1 again.

  • Page 37: Restore Report Codes ( ✱ 70- ✱ 76)

    Section 5 - Data Field Programming FIELD TITLE and DATA ENTRIES EXPLANATION Cancel Report Code This is sent upon disarming of the system after an alarm condition is reported. Restore Report Codes ( 70– ✱ ✱ FIELD TITLE and DATA ENTRIES EXPLANATION Alarm Restore Report Code (1st Digit) This is sent when the zone that caused an alarm is restored to its non-...

  • Page 38: Dynamic Signaling (*79)

    VISTA-15/VISTA-15CN Installation and Setup Guide Dynamic Signaling (*79) FIELD TITLE and DATA ENTRIES EXPLANATION Dynamic Signaling Delay (DSD) 1st entry This field enables you to select the time the panel should wait for acknowledgment from the first reporting destination before it attempts to send a message to the second destination.
  • Page 39 Section 5 - Data Field Programming FIELD TITLE and DATA ENTRIES EXPLANATION Cross Zone Timer (in seconds) Sets the maximum amount of time in which two cross zones (zone list 04) must be tripped in an armed system to send an Alarm message to the 0 = 30;...
  • Page 40 VISTA-15/VISTA-15CN Installation and Setup Guide FIELD TITLE and DATA ENTRIES EXPLANATION Option Selection (Audio Alarm Verification) UL installations: Must be 0 (AAV disabled). 0 = not using AAV 4 = an Audio Alarm Verification (AAV) unit is connected to the system 8 = enable Exit Delay Restart (Quick Exit) 12 = both AAV and Exit Delay Restart NOTES:...

  • Page 41: Download Information (*94, *95)

    Section 5 - Data Field Programming Download Information (*94, *95) FIELD TITLE and DATA ENTRIES EXPLANATION Download Phone Number Enter up to 20 digits as follows: 0–9; # +11 for • ; # + 12 for #; # + 13 for a pause.
  • Page 42 VISTA-15/VISTA-15CN Installation and Setup Guide 5–12...

  • Page 43: Section 6 Zone Programming

    S E C T I O N Zone Programming ✱ ✱ 58 Menu Mode) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Zone Programming ✱...
  • Page 44 VISTA-15/VISTA-15CN Installation and Setup Guide Default values for hardwired zones 1 to 6 are: Zone No. (Zn): Zone Type Default: Response Time Default †† † Fire verification is applicable on zone 1 only. †† 1 for response time = 350mSec. ✱...
  • Page 45 Section 6: Zone Programming If serial/loop number combination is not a duplicate in the system, a 10 INPUT S/N display showing the serial number and loop number entry appears. A 0 2 2 - 4 0 6 4 ✱ Press [ ] to continue.

  • Page 46: 58 Expert Programming Mode Procedures

    VISTA-15/VISTA-15CN Installation and Setup Guide 58 Expert Programming Mode Procedures ✱ Enter the Program mode and follow the step-by-step instructions that follow. ✱ ✱ NOTE: Before proceeding, you must program field 22 (RF System) and field 25 (Wired Zone Expansion) as required. ✱...

  • Page 47: To Remove A Zone

    Section 6: Zone Programming The prompt to confirm appears. This prompt appears only if you 10 XMIT TO CONFIRM asnswered “Yes” to the SET TO CONFIRM? prompt at the bottom of ✱ PRESS TO SKIP page 16-4. To confirm, activate the loop input or button that corresponds to this zone.

  • Page 48: To Delete A Transmitter Serial Number

    VISTA-15/VISTA-15CN Installation and Setup Guide 5. The next prompt asks whether you want to delete the zone. D e l e t e Z o n e ? 0 = No, 1 = Yes 1 (Yes) permanently removes the zone from the system, while 0 (No) disables it but retains all data except the original zone type.
  • Page 49 Section 6: Zone Programming The system searchs for the highest zone number available, subtracts ENTER START the number of consecutive zones required for the device (four zones in ZONE 00 = QUIT 22 the case of the 5804 and 5804BD), and displays the lowest zone number ↑...
  • Page 50 VISTA-15/VISTA-15CN Installation and Setup Guide Wireless Key Predefined Default Templates LOOP 3 GREEN/YELLOW LOOP 2 YOU MUST LOOP 2 PROGRAM THIS BUTTON LOOP 4 LOOP 1 RED/YELLOW LOOP 4 (YOU MUST PROGRAM THIS BUTTON) LOOP 3 LOOP 1 • • • •...

  • Page 51: Section 7 Output Device Programming

    S E C T I O N Output Device Programming 80 Menu Mode) ✱ • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Programming Options Defined ✱...

  • Page 52: Programming Output Relays And Powerline Carrier Devices

    VISTA-15/VISTA-15CN Installation and Setup Guide The STOP programming determines when and under what conditions the device is STOP (STP): deactivated. The following options are available: Upon Restore of a Zone List 1. Restore Zone List (ZL): If a Zone List is used as the STOP event, the device deactivates when all the zones in that list restore from a previous fault, trouble, or alarm condition.
  • Page 53 Section 7: Output Device Programming Enter the event to START the relay: 02 Start Event 0 = Not used; 2 = Fault; 1 = Alarm; 3 = Trouble Not Used A zone list must be used in conjunction with an event. If a zone type/system operation is to be used instead of an event, enter 0.
  • Page 54 VISTA-15/VISTA-15CN Installation and Setup Guide To program the above example, do the following: ✱ 80 Interactive mode, choose Output Device 01 and program the ✱ ACTION (A) to be “2” (Stay Closed). Press [ ] to continue. The Event you want to START the Device action is a fault, so program 2 in (EV). ✱...

  • Page 55: Section 8 Zone Lists

    S E C T I O N Zone Lists 81 Menu Mode) ✱ • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Zone List Menu Mode ✱...

  • Page 56: Night-Stay - Zone List 05

    VISTA-15/VISTA-15CN Installation and Setup Guide ✱ The chosen zone numbers of the above types are to be entered into zone list 4 via field 81. If any of the zones fault in the armed state, the system waits to see if another zone in the zone list faults within the cross zone list time entered in ✱...

  • Page 57: Section 9 Alpha Descriptor Programming

    S E C T I O N Alpha Descriptor Programming • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Alpha Descriptor Programming This section provides instructions for programming alpha zone descriptors.
  • Page 58 VISTA-15/VISTA-15CN Installation and Setup Guide Summary Mode Display È Default Descriptor If you did not enter a descriptor previously for zone 1, the keypad ✳ Z N 0 1 Z O N E 0 1 displays the default descriptor for zone 1. Note that this is a “summary mode,”...

  • Page 59: Adding Custom Words/Numbers (Not Annunciated By The 4285/4286 Vip Module)

    Section 9: Alpha Descriptor Programming This prompt is displayed. A l p h a P g m ✱ 13. Press 99 to exit the Programming mode. Adding Custom Words/Numbers (not annunciated by the 4285/4286 VIP Module) You can add up to 10 installer-defined words/numbers to the built-in vocabulary. Each of the 10 words/numbers can actually consist of a word string of one or more words/numbers, but no more than ten characters can be used for each word or word string.
  • Page 60 VISTA-15/VISTA-15CN Installation and Setup Guide ALPHA VOCABULARY LIST (For Entering Zone Descriptors) (Word Space) • 062 DRIVEWAY • 113 LIVING • 167 SERVICE • 225 ZONE • 064 DUCT • 114 LOADING • 168 SHED • 226 LOCK SHOCK • 227 •...

  • Page 61: Section 10 Remote Programming And Control (Downloading)

    About Remote Programming The VISTA-15/VISTA-15CN can be remotely programmed from an IBM-compatible personal computer (PC), the ADEMCO CIA (Communication Interface Adapter) or compatible modem, and ADEMCO's COMPASS software (as specified below). Downloading may be performed only if a technician is at the site.

  • Page 62: Initial Download

    VISTA-15/VISTA-15CN Installation and Setup Guide Initial Download ✱ For initial downloading, enter Installer code + [#] + [5]. This sets field 95 to 4 rings, and system to “no call-back” option. The download computer can then call the subscriber, make the connection, and download all programming items. After the control and the PC have established valid communication, each keypad on the system becomes inactive and displays “CC”...

  • Page 63: Section 11 System Communication

    3 (or 4) times and is followed by the second digit. This is the “expanded” digit. 4+2 Format Comprises a 4-digit subscriber number and 2-digit report code. ADEMCO Contact ID Comprises a 4-digit subscriber number, 1-digit event qualifier (“new” or Reporting Format “restore”), 3-digit event code, and 3-digit zone number, user number, or system status number (see the following page).
  • Page 64 VISTA-15/VISTA-15CN Installation and Setup Guide The following table lists codes for reports sent in different formats: Code for Code for Code for Type of 3+1/4+1 3+1/4+1 Report Standard Expanded Alarm SSS(S) A SSS(S) A SSSS AZ AAA(A) Z Trouble SSS(S) T SSS(S) T SSSS Tt TTT(T) t...
  • Page 65 Section 11: System Communications ADEMCO Contact ID Reporting takes the following format: CCCC Q EEE ZZZ where: CCCC = Customer (subscriber) ID Q = Event qualifier, where: E = new event, R = restore EEE = Event code (3 hexadecimal digits) NOTE: For a complete list of event codes, refer to the Central Station office receiver manual.
  • Page 66 VISTA-15/VISTA-15CN Installation and Setup Guide 11–4...

  • Page 67: Section 12 System Operation

    S E C T I O N System Operation • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Security Codes Installer Code The installer programs the 4-digit Installer code initially as part of the programming procedure.
  • Page 68 VISTA-15/VISTA-15CN Installation and Setup Guide Arming Commands The following is a brief list of system commands. For detailed information concerning system functions, refer to the User Guide. Disarmed, Not Ready Before arming, the system must be in the Ready condition (all zones ✱...
  • Page 69 Section 12: System Operation SUMMARY OF ARMING MODES Features for Each Arming Mode Arming Mode † Entry Delay Perimeter Armed Interior Armed Exit Delay STAY NIGHT-STAY Yes (if in Zone List 05) INSTANT AWAY MAXIMUM † The VISTA-15/VISTA-15CN contains an Exit Delay Reset feature that allows the user to exit (fault), close the door (restore the fault), then re-enter (fault again) the premises within the exit delay time period.

  • Page 70: Setting The Real-Time Clock

    VISTA-15/VISTA-15CN Installation and Setup Guide Setting the Real-Time Clock General Information This system provides a real-time clock that must be set in order for the system's event log to keep track of events by time and date. • Use a 6139 Alpha Keypad to set the real-time clock, or set the clock via the downloader software. •...

  • Page 71: Section 13 Testing The System

    S E C T I O N Testing the System • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Test Procedure After installation is completed, the security system should be carefully tested, as follows: 1.
  • Page 72 VISTA-15/VISTA-15CN Installation and Setup Guide • Any transmitter that is not “enrolled” will not turn off its zone number. Exit this mode by keying [Installer code] + [1] OFF. b. GO/NO GO TEST MODE The Go/No Go Tests verify adequate RF signal strength from the proposed transmitter location.
  • Page 73 Section 13: Testing the System ✱ If control senses a short in the loops on hardwired zones 2–6 (If Hardwire Short Detection is enabled in 30), it displays CHECK and the affected zone number. Unlike the other CHECK conditions above, this Hardwired Short detection does not produce an audible sound at the keypad.

  • Page 75: Section 14 Troubleshooting Guide

    S E C T I O N Troubleshooting Guide • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • S Y S T E M ( i n c l u d i n g W i r e l e s s ) SYMPTOM POSSIBLE CAUSE...
  • Page 76 VISTA-15/VISTA-15CN Installation and Setup Guide S Y S T E M ( i n c l u d i n g W i r e l e s s - c o n t ' d ) POSSIBLE CAUSE REMEDY SYMPTOM 6a.

  • Page 77: Contacting Technical Support

    ATLIS-BBS Electronic Bulletin Board System: .......... 1-516-496-3980 (1200 - 9600 Baud, 8 Data Bits, 1 Start/Stop Bit, No Parity) ATLIS-FAX FAXBACK Automated Fax Retrieval System:......1-800-573-0153 or 1-516-921-6704 / ext. 1667 World Wide Web Address: ................http : // www . ademco . com 14–3...
  • Page 78 VISTA-15/VISTA-15CN Installation and Setup Guide NOTES 14–4...

  • Page 79: Section 15 Specifications & Accessories

    12-1/2” W x 14-1/2” H x 3” D (318mm x 368mm x 76mm) 1. Physical: Powerline Carrier device Interface AC Transformer 2. Electrical: 16.5VAC from plug-in 25VA transformer, ADEMCO No. 1321 (in VOLTAGE INPUT: USA) 12VDC, 4AH 17.2AH (Sealed Lead Acid). Refer to Section 12: Final...
  • Page 80 200ft (60m) nominal indoors from wireless transmitters (the actual 4. Range: range to be determined with system in Test mode). ( With the ADEMCO VISTA-15/VISTA-15CN ) 5. Zones: 5881L/5882L: accepts up to 8 transmitters 5881M/5882M: accepts up to 16 transmitters...

  • Page 81: Accessories (Compatible Devices)

    16.5VAC, 25VA Plug-In Transformer No. 4300 Powerline Carrier device Interface AC Transformer Sounders ADEMCO AB-12M 10'' Motor bell & box. UL Grade A. 100mA current draw. ADEMCO 1011BE12M 10'' Motor bell & box. UL Listed. 100mA current draw. ADEMCO 702 Self-contained 6-12 volt siren (driver built-in) and weatherproof for outdoor use.
  • Page 82 VISTA-15/VISTA-15CN Installation and Setup Guide 40-watt, 8-ohm, indoor/outdoor speaker. ADEMCO 713 System Sensor Indoor piezo sounder (beige or red), rated at 90 dB @ 10 feet. PA400B (beige) PA400R (red) Compatible 2-Wire Smoke Detectors System Sensor 2300T Photoelectric w/heat sensor, direct wire...

  • Page 83: 5800 Rf System Wireless Transmitters

    A P P E N D I X 5800 RF System Wireless Transmitters • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Transmitter Input Loop Identification 5800 Series Transmitter Input Loop Identification •All of the transmitters illustrated below have one or more unique factory-assigned input (loop) ID codes.

  • Page 84: Series Transmitters Table

    VISTA-15/VISTA-15CN Installation and Setup Guide 5800 Series Transmitters Table Model Description Input Type and Special Notes Enroll as “3” for RF (supervised), or “4” for UR (unsupervised). 5801 Wireless Panic Unit has 4 pushbuttons, each with a unique input (loop) code. Transmitter Each pushbutton must be assigned to a zone.

  • Page 85: Regulatory Agency Statements

    Appendix C: Warnings and Limitations A P P E N D I X Regulatory Agency Statements • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • UL NOTICE: This is a “Grade A”...
  • Page 86 425mA 14AH ‡ Note: Use two batteries, connected in parallel. Obtain an ADEMCO No. 4100EOLR Resistor Kit. A dual battery harness is provided with the kit. The kit also contains EOL resistors with spade lug/heat shrink tubing construction which has been approved by UL and CSFM for fire zone usage. Both batteries will fit inside...

  • Page 87: Warnings And Limitations

    Warnings and Limitations • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • WARNING THE LIMITATIONS OF THIS ALARM SYSTEM While this System is an advanced design security system, it does not offer guaranteed protection against burglary, fire or...
  • Page 88 24 months from the date stamp control on the product or, for products not having an Ademco date stamp, for 12 months from date of original purchase unless the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply.
  • Page 89 Appendix C: Warnings and Limitations Les réparations du matériel homologué doivent être effectuées pas un centre d'entretien canadien autorisé désigné par le fournisseur. La compagnie de télécommunications peut demander à l'utilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par l'utilisateur ou à...
  • Page 90 VISTA-15/VISTA-15CN Installation and Setup Guide...
  • Page 91 NOTES...
  • Page 92 NOTES...
  • Page 93 NOTES...
  • Page 94 NOTES...
  • Page 95 Figure 16. VISTA-15/ VISTA-15CN Summary of Connections...
  • Page 96 165 Eileen Way, Syosset, New York 11791 Copyright © 2000 PITTWAY CORPORATION ¬.9Ll K3892V2 7/01...
