ADEMCO Vista-15 Installation And Setup Manual

Hide thumbs Also See for Vista-15:
Table of Contents

Advertisement

Quick Links

See also: User Manual
9,67$
9,67$&1
6HFXULW\6\VWHP

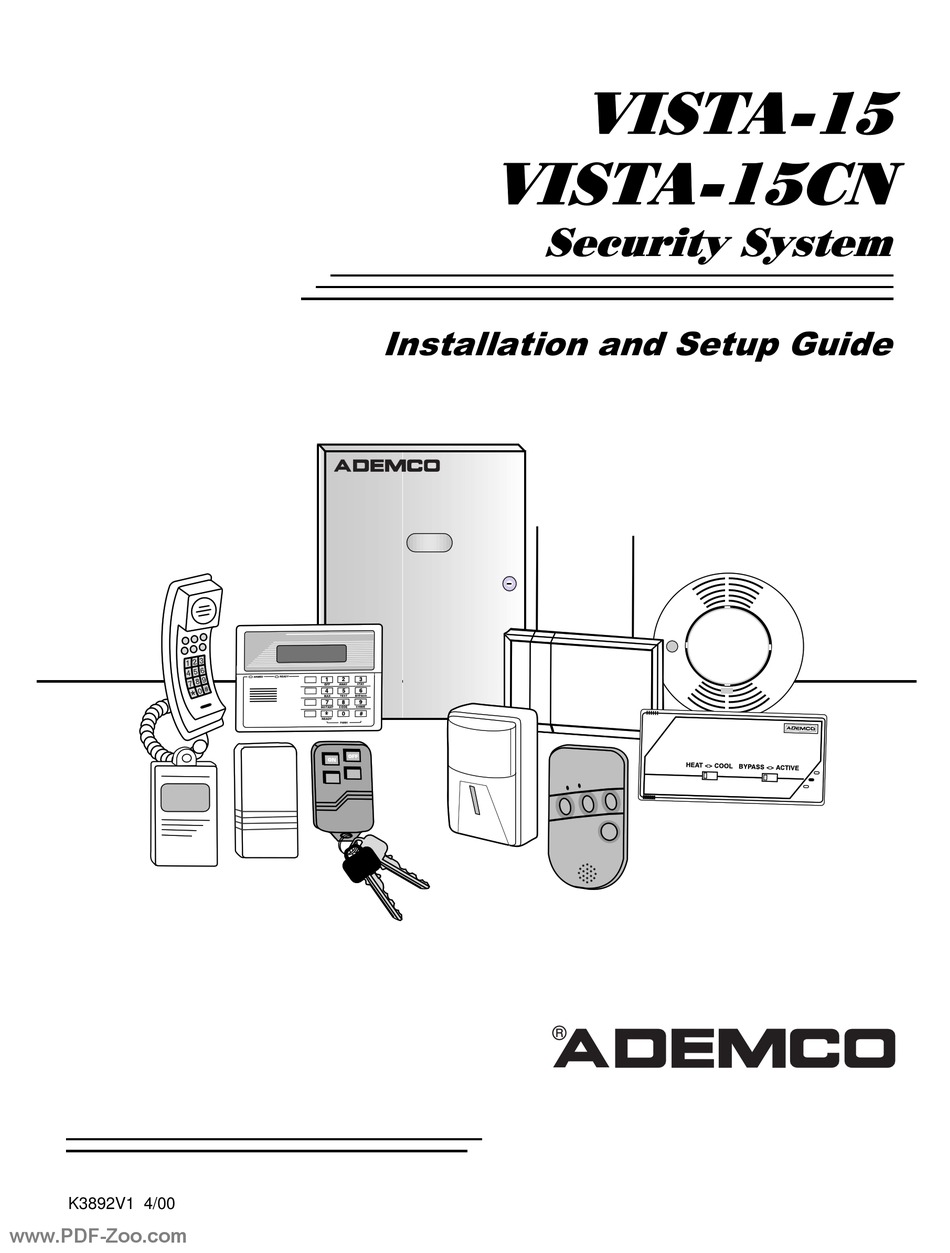

,QVWDOODWLRQDQG6HWXS*XLGH
®
K3892V1 4/00
www.PDF-Zoo.com

Advertisement

Table of Contents
loading

Related Manuals for ADEMCO Vista-15

Summary of Contents for ADEMCO Vista-15

  • Page 1 9,67$ 9,67$&1 6HFXULW\6\VWHP ,QVWDOODWLRQDQG6HWXS*XLGH ® K3892V1 4/00 www.PDF-Zoo.com...
  • Page 2 VISTA-15/VISTA-15CN Installation & Setup Guide www.PDF-Zoo.com...
  • Page 3 RECOMMENDATIONS FOR PROPER PROTECTION The Following Recommendations for the location of Fire and Burglary Detection Devices Help Provide Proper Coverage for the Protected Premises. Recommendations for Smoke and Heat Detectors With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's (NFPA) Standard #72 noted below.

  • Page 4: Table Of Contents

    Table of Contents • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Conventions Used In This Manual .......................
  • Page 5 Table of Contents SECTION 10. Long Range Radio ........................10–1 About Long Range Radio..........................10–1 Wiring Connections ............................10–1 Dynamic Signaling Feature ..........................10–2 SECTION 11. Audio Alarm Verification (AAV) Unit ................11–1 About Audio Alarm Verification ........................11–1 Wiring Connections ............................11–1 SECTION 12. Final Power-Up ........................12–1 Earth Ground Connections ...........................12–1 AC Power-Up ..............................12–1 Connecting the Backup Battery........................12–1...
  • Page 6 VISTA-15/VISTA-15CN Installation & Setup Guide SECTION 22. System Operation .........................22–1 Security Codes ...............................22–1 Keypad Functions ............................22–2 Setting the Real-Time Clock .........................22–6 SECTION 23. Testing the System .......................23–1 Test Procedure ...............................23–1 SECTION 24. Troubleshooting Guide......................24–1 SECTION 25. Specifications & Accessories....................25–1 Specifications ..............................25–1 Accessories (Compatible Devices) .........................25–3...

  • Page 7: List Of Figures

    Figure 19. Long Range Radio Connections .......................10–1 Figure 20. Connection of AAV Unit When Not Using a 4285/4286 VIP Module ..........11–2 Figure 21. Connection of AAV Unit When Also Using a 4285 or 4286 VIP Module........11–2 Figure 22. VISTA-15/VISTA-15CN Summary of Connections..........Inside Back Cover www.PDF-Zoo.com...

  • Page 8: Conventions Used In This Manual

    These prompts are shown in a double-line box. (00 = Quit) When programming the system, data fields are indicated by a “star” ( ) followed by the data field number. PRODUCT MODEL NUMBERS: Unless noted otherwise, references to specific model numbers represent ADEMCO products. viii www.PDF-Zoo.com...

  • Page 9: Section 1. Introduction

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Description The VISTA-15/VISTA-15CN is a security system control that supports up to 32 zones, including six basic hardwired zones (1 through 6) and a maximum of 26 expansion zones.
  • Page 10 This feature only resets the exit delay time once for each arming session. Optional Output Relays and Powerline Carrier Devices (X10 type) The VISTA-15/VISTA-15CN supports the following optional output relays and Powerline Carrier devices (X10 type): • Maximum of 4 output devices •...
  • Page 11 Section 1 - Introduction Optional VIP Module The VISTA-15/VISTA-15CN supports the ADEMCO 4285/4286 VIP Module (refer to Section 8: 4285/4286 VIP Module for further information). Provides access to the system via on-premises or off-premises phones for arming, disarming, etc., plus control of relay outputs and Powerline Carrier devices.
  • Page 12 (information can be reprogrammed at any time and will not be lost in the event of a power loss). The system can be uploaded, downloaded, or controlled via an IBM-compatible computer, COMPASS software, and a modem specified by ADEMCO. Keypad programming consists of: • Data field programming •...

  • Page 13: Section 2. Installing The Control

    LED in the receiver after it is operational (random flicker is OK). Installing the Lock (if used) Use an ADEMCO No. N6277 Cam Lock and No. N6277–1 Push-On Clip (Retainer Clip). NOTE:The cabinet can be closed and secured without a lock by using 2 screws in the cover's edge.

  • Page 14: Mounting The Control's Circuit Board Alone In The Cabinet

    VISTA-15/VISTA-15CN Installation and Setup Guide Before installing the cabinet's contents, remove the metal cabinet knockouts required for wiring entry. Do not attempt to remove the knockouts after the circuit board has been installed. Mounting the Control's Circuit Board Alone in the Cabinet To mount the circuit board alone in the cabinet, follow these steps: 1.

  • Page 15: Mounting Control And Rf Receiver Circuit Boards Together In The Cabinet

    Section 2 - Installing the Control Mounting Control and RF Receiver Circuit Boards Together in the Cabinet To mount the control and RF receiver boards together in the cabinet, do the following: 1. Hang two short (black) mounting clips (provided with receiver) on the raised cabinet tabs, as shown in Detail B in Figure 3.

  • Page 16: Standard Phone Line Connections

    VISTA-15/VISTA-15CN Installation and Setup Guide Standard Phone Line Connections The wiring connections shown here are not applicable if the 4285/4286 VIP Module is used. Refer to Section 8: 4285/4286 VIP Module for information regarding phone line connections, which are different than those shown here.

  • Page 17: Wiring The Ac Transformer

    Section 2 - Installing the Control Wiring the AC Transformer 1321/1321CN Transformer Wire the 1321/1321CN Transformer to terminals 1 and 2 on the control board. See wiring table below to determine wire gauge. Use caution when wiring the transformer to the control panel to guard against blowing the fuse inside the transformer (the fuse is nonreplaceable).

  • Page 18: Installing The Backup Battery

    2. Attach red and black wires on the battery connector cable as follows: a. Red to the positive (+) battery terminal on the control board (see Figure 22. VISTA-15/VISTA-15CN Summary of Connections for location, if necessary). b. Black to the negative (–) battery terminal on the control board.

  • Page 19: Section 3. Installing Remote Keypads

    S E C T I O N Installing Remote Keypads • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Keypads That May Be Used Supplementary Power for Additional Keypads...

  • Page 20: Mounting The Keypads

    Supplementary Power for Additional Keypads The VISTA-15/VISTA-15CN control provides 600mA for powering keypads (up to 4) and other devices from the auxiliary power output. The backup battery supplies power to these keypads in the event that AC power is lost.

  • Page 21: Preliminary Checkout Procedure

    1. Temporarily connect a 2000-ohm end-of-line resistor across each of the basic hardwired zones 1–6, as shown in the VISTA-15/VISTA-15CN Summary of Connections diagram. Without actual zone wiring or EOL resistors connected, the keypads will not display the READY message.
  • Page 22 VISTA-15/VISTA-15CN Installation and Setup Guide 3–4 www.PDF-Zoo.com...

  • Page 23: Section 4. Basic Hardwired Zones 1-6

    Wiring Burglary and Panic Devices to Zones 1–6 To wire burglary and panic devices to zones 1-6, perform the following steps, referring to Figure 22. VISTA-15/VISTA-15CN Summary of Connections at the back of this manual. 1. Connect sensors/contacts to the hardwired zone terminals (8 through 17).

  • Page 24: Figure 8. 2-Wire Smoke Detector Connected To Zone 1

    In UL installations, only zone 1 may be used as a fire zone. In addition, an ADEMCO Model 610–7 must be used as the end-of-line resistor at the last detector.

  • Page 25: Figure 9. 4-Wire Smoke Detector Connections (Zones 2-6)

    Section 4 - Basic Hardwired Zones 1-6 Remove 2000 ohm EOL resistor if connected across the selected zone terminals. You must connect the EOL resistor across the loop wires at the last detector. To supervise power, we recommend the use of a System Sensor No. A77-716B Supervisory Module.
  • Page 26 VISTA-15/VISTA-15CN Installation and Setup Guide Programming Hardwired Zones Each zone must be programmed into the system using the 56 Zone Programming Mode or 58 Expert Programming Mode, which assigns characteristics that define the way the system responds to faults on that zone. Refer to Section 14: Zone Response Type Definitions and Section 16: Zone Programming for specific instructions on programming hardwired zones.

  • Page 27: Section 5. Wired Zone Expansion

    S E C T I O N Wired Zone Expansion • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Installing Zone Expansion Units Programming Wired Expansion Zones...

  • Page 28: Figure 10. Wiring Connections - 4219 Expansion Module

    VISTA-15/VISTA-15CN Installation and Setup Guide DIP SWITCH FOR SETTING ADDRESS AND ZONE A 4-PIN CONSOLE PLUG RESPONSE TIME (CONNECTIONS SAME AS TB2) 4219 DATA OUT TO CONTROL (–) GROUND REED (TAMPER) (+) 12VDC SWITCH DATA IN FROM CONTROL TAMPER JUMPER...

  • Page 29: Programming Wired Expansion Zones

    Section 5 - Wired Zone Expansion Programming Wired Expansion Zones Each zone must be programmed into the system using the 56 Zone Programming Mode or 58 Expert Programming Mode, which assigns characteristics that define the way the system responds to faults on that zone. Refer to Section 14: Zone Response Type Definitions and Section 16: Zone Programming for specific instructions on programming wired expansion zones.
  • Page 30 VISTA-15/VISTA-15CN Installation and Setup Guide 5–4 www.PDF-Zoo.com...

  • Page 31: Section 6. Wireless Expansion (5800 System)

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Wireless Expansion In addition to its basic wired zones, the VISTA-15/VISTA-15CN control supports up to 26 wireless zones using an appropriate 5881 (5882 in Canada) type RF receiver. The actual number of zones supported depends on whether you are using a wired zone expander module.

  • Page 32: Installing The 5881/5882 Receiver

    VISTA-15/VISTA-15CN Installation and Setup Guide Installing the 5881/5882 Receiver RF System Installation Advisories Follow the guidelines below when installing the RF receiver. (Disregard if the receiver is mounted in the control cabinet.) • Place the RF receiver in a high, centrally located area for best reception.

  • Page 33: Installing The 5800Tm Module

    Terminal 7 BLUE Not Used Do not cut any of the jumpers on the 5800TM when using it with the VISTA-15/VISTA-15CN. For additional information, refer to the 5800TM’s instructions. Jam Detection and Reporting When field 22, option 4 (in Data Field Descriptions) is selected, a 5800 series receiver detecting a jam condition sends an E344 (RF Receiver Jam Detect) Contact ID report to the Central Station.
  • Page 34 VISTA-15/VISTA-15CN Installation and Setup Guide For button transmitters (RF “keys”), such as the 5801, 5804, and 5804BD, you must assign a unique zone number to each individual button used on the transmitter. Each button on the transmitter also has a predesignated loop or input number, which is automatically displayed on the keypad.
  • Page 35 Section 6 - Wireless Expansion Transmitter Battery Life Do not install batteries in wireless transmitters until you are ready to enroll the transmitters during system programming. After enrolling, batteries need not be removed. Batteries in the wireless transmitters may last from 4 to 7 years, depending on the environment, usage, and the specific wireless device being used.

  • Page 36: Series Transmitters Table

    VISTA-15/VISTA-15CN Installation and Setup Guide 5800 Series Transmitters Table Also refer to Appendix A for transmitter input loops/button locations. Model Description Input Type and Special Notes 5801 Wireless Panic Enroll as “3” for RF (supervised), or “4” for UR (unsupervised).

  • Page 37: Installing 5800 Series Transmitters

    Section 6 - Wireless Expansion Installing 5800 Series Transmitters To be sure reception of the transmitter's signal at the proposed mounting location is adequate, perform a Go/No Go Test. Go/No Go Test Mode The Go/No Go Tests verify adequate RF signal strength from the proposed transmitter location.
  • Page 38 VISTA-15/VISTA-15CN Installation and Setup Guide 6–8 www.PDF-Zoo.com...

  • Page 39: Section 7. Relay Outputs & Powerline Carrier Devices

    S E C T I O N Relay Outputs & Powerline Carrier Devices • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Relays and Powerline Carrier Devices Powerline Carrier Devices...

  • Page 40: Figure 13. 4229 Connections To Control

    VISTA-15/VISTA-15CN Installation and Setup Guide 2. Set the 4204/4229's DIP switch for a device address of 1 (switch 2 in the OFF position and switches 3, 4, and 5 in the ON position). Switch 1 determines the unit's cover tamper response (ON = disabled, OFF = enabled).

  • Page 41: Powerline Carrier Devices

    Section 7 - Relay Outputs & Powerline Carrier Devices SWITCH 4 2 0 4 A D D R E S S S E T T I N G S POSITION ("—" means "OFF") — — — — — — — —...

  • Page 42: Programming Relay Outputs

    Figure 15. 4300 Transformer Wiring Connections Programming Relay Outputs In the VISTA-15/VISTA-15CN, each device must be programmed as to how to act (ACTION), when to activate (START), and when to de-activate (STOP). Refer to the programming procedures for 80 and 81 interactive modes that are provided in Section 13: Mechanics of Programming, Section 17: Output Device Programming, and Section 18: Zone Lists for specific programming details.

  • Page 43: Section 8. 4285 & 4286 Vip Module

    About the 4285 & 4286 VIP (Voice Interactive Phone) Module The 4285 or 4286 VIP Module is an add-on accessory for the VISTA-15/VISTA-15CN that permits access to the security system via a TouchTone phone (either on-premises or by a call- in when away).
  • Page 44 VISTA-15/VISTA-15CN Installation and Setup Guide If you are also using an Audio Alarm Verification (AAV) unit, refer to Section 11: Audio Alarm Verification (AAV) Unit for the wiring connections required when you are using both a VIP (phone module) and an AAV unit. If you are not using an AAV unit, follow the wiring connections instructions in this section for the phone module.

  • Page 45: Figure 16. 4285/4286 Vip Module Wiring Connections

    Section 8 - 4285/4286 VIP Module 4285/4286 VIP MODULE WIRING NOTES: • Wire the phone module exactly as shown, using a direct-connect cord and RJ31X jack (CA38A in Canada). • If you do not hear touch-tones when pressing keys after phoning the security system via an on- premises phone, try reversing the pair of wires connected to terminals 3 and 4 on either phone module and the pair of wires connected to terminals 21 and 22 on the control.
  • Page 46 VISTA-15/VISTA-15CN Installation and Setup Guide Programming the 4285/4286 VIP Module You must program the system for use with the 4285 or 4286 VIP Module. This includes assigning a phone code and selecting words from the alpha vocabulary. Refer to the programming sections for specific programming details.

  • Page 47: Section 9. External Sounders

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Compatible Sounders The following table lists external sounders that are compatible with the VISTA-15/VISTA-15CN: Model...

  • Page 48: Sounder Connections And Power

    Sounder Supervision The VISTA-15/VISTA-15CN contains a sounder (Bell) supervision option. To activate the Bell supervision option: 1. Cut the red Bell Supervision Jumper located above terminals 2 and 3 on the control board.

  • Page 49: Section 10. Long Range Radio

    S E C T I O N Long Range Radio • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Long Range Radio Dynamic Signaling Feature...

  • Page 50: Dynamic Signaling Feature

    VISTA-15/VISTA-15CN Installation and Setup Guide Dynamic Signaling Feature This VISTA-15/VISTA-15CN control panel features Dynamic Signaling Delay (DSD) and Dynamic Signaling Priority (DSP) message reporting when Long Range Radio is used. These message outputs are accessed through data field 79. The Dynamic Signaling feature is designed to reduce the number of redundant reports sent to the Central Station.

  • Page 51: Section 11. Audio Alarm Verification (Aav) Unit

    S E C T I O N Audio Alarm Verification (AAV) Unit • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Audio Alarm Verification Wiring Connections...

  • Page 52: Figure 20. Connection Of Aav Unit When Not Using A 4285/4286 Vip Module

    VISTA-15/VISTA-15CN Installation and Setup Guide EARTH GROUND CONTROL EAGLE 23 24 25 SUPPLIED CABLE RED (R) RJ31X GREEN (T) GREY (R) (CA38A BROWN (T) in Canada) CONTROL/ DIALER HEADER 4204 RELAY 1 BROWN SHOWN TO PREMISES HANDSET DIP Switch INCOMING...

  • Page 53: Section 12. Final Power-Up

    S E C T I O N Final Power-Up • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Earth Ground Connections Connecting the Backup Battery...

  • Page 54: Battery Tests

    • Red to the positive (+) battery tab on the control board • Black to the negative ( – ) battery tab on the control board. Refer to Figure 22. VISTA-15/VISTA-15CN Summary of Connections (SOC) diagram for location of the (+) and (–) battery tabs on the control board.

  • Page 55: Section 13. Mechanics Of Programming

    S E C T I O N Mechanics of Programming • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Programming Interactive Mode Programming...

  • Page 56: Entering Program Mode

    VISTA-15/VISTA-15CN Installation and Setup Guide Entering Program Mode You may use one of the following methods: a) Press the [ ] and [#] keys at the same time within 50 seconds after power is applied to the control; or b) After power-up, enter 4 1 1 2 (Installer code) + 8 0 0.

  • Page 57: Loading Factory Defaults

    Section 13 - Mechanics of Programming Loading Factory Defaults To load the factory defaults, enter the Programming mode, press 97, then exit the Programming mode. Do not press 97 to load defaults if any programming has been done previously—data already programmed into the system will be changed! 96 resets all the subscriber account numbers and CSID in preparation for an initial download.
  • Page 58 VISTA-15/VISTA-15CN Installation and Setup Guide 13–4 www.PDF-Zoo.com...

  • Page 59: Section 14. Zone Response Type Definitions

    This zone type is usually assigned to sensors or contacts on doors through which primary entry and exit take place. The VISTA-15/VISTA-15CN annunciates faster beeps during the last 10 seconds of exit delay. This zone type provides a secondary Entry Delay whenever the...
  • Page 60 VISTA-15/VISTA-15CN Installation and Setup Guide Type 04 This zone type gives a delayed alarm (using the programmed entry/exit time) if the entry/exit zone is faulted first. Otherwise this Interior Follower zone type gives an instant alarm. This zone type is active when the panel is armed in the AWAY and MAXIMUM modes.
  • Page 61 Section 14 - Zone Response Type Definitions Type 10 This zone type gives Entry Delay (using the programmed entry time), if tripped when the panel is armed in the AWAY mode. Entry Interior w/Delay Delay begins whenever sensors in this zone are violated, regardless of whether or not an Entry/Exit Delay zone was tripped first.
  • Page 62 VISTA-15/VISTA-15CN Installation and Setup Guide 14–4 www.PDF-Zoo.com...

  • Page 63: Section 15. Data Field Descriptions

    NOTE: The blank PROGRAMMING FORM should be used to record the data for this installation. Defaults (where applicable) are indicated in boxes. The following pages list all data fields in the VISTA-15/VISTA-15CN in numerical order. If you have performed the programming instructions that were included with the installation of each of the peripheral devices covered in previous sections, this table simply serves as a reference for all data fields in the system.
  • Page 64 VISTA-15/VISTA-15CN Installation and Setup Guide WIRED ZONE EXPANSION 0 = no expander module connected 1 = 4219 connected 2 = 4229 connected 3 = 4204 connected CHIME BY ZONE 0 = no (chimes on fault of any entry/exit or perimeter zone when Chime...
  • Page 65 Section 15 - Data Field Descriptions 30 HARDWIRE SHORT DETECTION 0 = disable; 1 = enable When enabled and a short occurs in any hardwired burglary zone (in zones 1- † 6 only) in the disarmed state, a Trouble report is sent to the Central Station, and a CHECK ZONE message is displayed on the keypad.
  • Page 66 VISTA-15/VISTA-15CN Installation and Setup Guide ENTRY DELAY 2 0 = 30-second delay 4 = 120-second delay 1 = 45-second delay 5 = 180-second delay 2 = 60-second delay 6 = 240-second delay 3 = 90-second delay The system waits the time entered before it sounds an alarm upon entering.
  • Page 67 3 = tone dial next field number) if only REPORT FORMAT 3 digits are used. To clear entries from 0 = 3+1; 4+1 ADEMCO Low Speed Standard Prim. Sec. field, press 43 or 1 = 3+1; 4+1 Radionics Standard 44 .
  • Page 68 VISTA-15/VISTA-15CN Installation and Setup Guide Pager Report Format Entries 6 through 9 sends a report to a pager, using the following format: The Pager report is formatted as follows: AAAAAAAAAAAAAAAA – BBB – CCCC where: A = (Optional.) Up to 16 digits for account numbers, PIN numbers, or any additional data that precedes the 7-digit system status code BBB and CCCC (see B and C below).
  • Page 69 An entry of 0 in the second box eliminates the expanded message for that report. With ADEMCO Contact ID Reporting: Enter a digit in the first box to enable the zone to report. Use a different digit for each zone until you have used up available digits.
  • Page 70 VISTA-15/VISTA-15CN Installation and Setup Guide SYSTEM STATUS 59 EXIT ERROR REPORT CODE (See previous page) REPORT CODES † ( 59– 68) If the system is armed and an Entry/Exit or Interior zone is still open after the Exit Delay time has expired, an alarm sounds at the keypad and external sounder (keypad also displays EXIT ALARM).
  • Page 71 Section 15 - Data Field Descriptions 0 | 0 ARM AWAY/STAY REPORT CODE AWAY/STAY This option allows for independent programming of AWAY and STAY reports. Second digit of report is user number if Expanded or 4+2 reporting is selected. NOTE: Open reports are not sent if the associated Closing report is not enabled.
  • Page 72 VISTA-15/VISTA-15CN Installation and Setup Guide 1 | 5 DAYLIGHT SAVING TIME START/END WEEKEND 0 = disabled 4 = fourth 1 = first 5 = last 2 = second 6 = next to last third 7 = third to last DYNAMIC...
  • Page 73 Section 15 - Data Field Descriptions ZONE LISTS FOR OUTPUT DEVICES Interactive Menu mode applicable if 25 is programmed for a 4204 or 4229, or if Powerline Carrier devices are being used. Cross Zone and NIGHT-STAY zone lists are also programmed in this field. Refer to Section 18: Zone Lists for detailed procedure.
  • Page 74 VISTA-15/VISTA-15CN Installation and Setup Guide 88 PAGER CHARACTERS When programmed in field 47, reports are sent to the pager depending upon the number selected. This programming field ( 88) allows up to 16 digits to be entered to signal a pager.
  • Page 75 #15. The default of 3 = Alarm/Alarm Restore (1) plus Trouble/Trouble Restore (2). The VISTA-15/VISTA-15CN system can record up to 48 events in a history log. The types of events to be logged are selectable. At any time, the downloader operator can then upload the log and view or print out all or selected categories of the log.
  • Page 76 VISTA-15/VISTA-15CN Installation and Setup Guide SWINGER SUPPRESSION 0 = Unlimited, 1-15 = Number of alarms (1-9; # +10 = 10; # +11 = 11; # +12 = 12; # +13 = 13; # +14 = 14; # +15 = 15 This option can be used to limit the number of messages (Alarm and Alarm Restore reports) sent to the Central Station in an armed period.

  • Page 77: Section 16. Zone Programming

    S E C T I O N Zone Programming ( 56/ 58 Menu Mode) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Zone Programming To Remove a Zone...
  • Page 78 VISTA-15/VISTA-15CN Installation and Setup Guide È Zone Number Zone Type (ZT): Enter the Zone Type response (or change it, if necessary). 10 Zone Type Each zone must be assigned to a zone type, which defines the way Perimeter Ç in which the system responds to faults in that zone.
  • Page 79 Section 16 - Zone Programming Serial number Entry and Loop Number Entry. 10 INPUT S/N: Used only when enrolling wireless transmitters. A 0 2 2 - 4 0 6 4 a. Transmit two open and close sequences. If using a button-type Note: The [A] and [B] keys transmitter, press and release the button twice may be used to move the...

  • Page 80: 58 Expert Programming Mode Procedures

    VISTA-15/VISTA-15CN Installation and Setup Guide If Serial or Loop If the serial/loop number combination transmitted does not match Numbers do not match the serial number entered, a display similar to the one below after activating the appears. If the loop number does not match, it is also displayed.
  • Page 81 Section 16 - Zone Programming A summary screen appears, showing zone 01’s current Zn ZT RC In: programming or default values. 01 09 10 HW: Enter the first digit of the zone number to be programmed. In the ZT RC In: example at the left, where zone 10 is to be programmed, the first –...

  • Page 82: To Remove A Zone

    VISTA-15/VISTA-15CN Installation and Setup Guide The prompt to confirm appears. This prompt appears only if you 10 XMIT TO CONFIRM asnswered “Yes” to the SET TO CONFIRM? prompt at the PRESS TO SKIP bottom of page 16-4. To confirm, activate the loop input or button that corresponds to this zone.

  • Page 83: To Enter And Duplicate Wireless Keys

    Section 16 - Zone Programming 4. Enter 00. This sets the zone type to Zone Disabled. 0 1 Z o n e T y p e Z o n e D i s a b l e d Press [ ] to continue. 5.
  • Page 84 VISTA-15/VISTA-15CN Installation and Setup Guide 2. Select from templates. Press [ ] to display template (1 shown selected). NOTE: If necessary, press [#] to back up and re-enter template number. 3. Press [#] if you want to return to zone attributes screen.
  • Page 85 Section 16 - Zone Programming Wireless Key Predefined Default Templates LOOP 3 GREEN/YELLOW LOOP 2 YOU MUST LOOP 2 PROGRAM THIS BUTTON LOOP 4 LOOP 1 RED/YELLOW LOOP 4 (YOU MUST PROGRAM THIS BUTTON) LOOP 3 LOOP 1 • • • •...
  • Page 86 VISTA-15/VISTA-15CN Installation and Setup Guide 16–10 www.PDF-Zoo.com...

  • Page 87: Section 17. Output Device Programming

    S E C T I O N Output Device Programming ( 80 Menu Mode) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Programming Options Defined Programming Output Relays and Powerline...
  • Page 88 VISTA-15/VISTA-15CN Installation and Setup Guide 2. Zone List (ZL) is a group of zones to which the Event applies in order to activate a particular device. Note that there are 3 output device-related zone lists that can be programmed in 81 Menu mode; when the selected Event (alarm, fault, or trouble) occurs in any zone in the selected START zone list (1, 2, or 3), activation of the selected device will START.

  • Page 89: Programming Output Relays And Powerline Carrier Devices

    Section 17 - Output Device Programming If a relay is energized before a 4-wire smoke detector is reset, the relay is stopped by the interruption of Aux. Power that resets the smoke detector. If this is not desired, supply power to the relay unit from another 12V power source (e.g., the same source that is powering external equipment through the relay contacts).
  • Page 90 VISTA-15/VISTA-15CN Installation and Setup Guide CHOICES FOR ZONE TYPES 00 = Not Used 04 = Interior Follower 08 = 24-Hr Aux 01 = Entry/exit #1 05 = Trouble Day/Alarm Night 09 = Fire 02 = Entry/exit #2 06 = 24-Hr Silent...
  • Page 91 Section 17 - Output Device Programming 2. The second condition for turning on the indicator is triggering a 24-hour aux. zone (Zone Type 08). Therefore, program (ZT) as 08. Press [ ] to continue. 3. To stop the Device action and turn off the lamp, you do not want to use a restore of any zone, so enter a 0 for Stop: Zn Lst (ZL).
  • Page 92 VISTA-15/VISTA-15CN Installation and Setup Guide 17–6 www.PDF-Zoo.com...

  • Page 93: Section 18. Zone Lists

    S E C T I O N Zone Lists ( 81 Menu Mode) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Zone List Menu Mode Cross Zoning - Zone List 04...

  • Page 94: Cross Zoning - Zone List 04

    VISTA-15/VISTA-15CN Installation and Setup Guide Cross Zoning - Zone List 04 Cross zone alarm verification is an option that must be set up using zone list 04, the cross zone list, by selecting the desired cross zone numbers. A cross zone is any combination of up to 10 zones of the following zone types: •...

  • Page 95: Section 19. Alpha Descriptor Programming

    Vocabulary List shown in boldface type. The phone module does not provide annunciation of the other words/numbers. If a 4285/4286 VIP Module is added to an existing VISTA-15/VISTA-15CN system, the alpha descriptors presently in the system should be reprogrammed, selected from those words/numbers shown in boldface type in the Alpha Vocabulary List.
  • Page 96 VISTA-15/VISTA-15CN Installation and Setup Guide 3. Press 1 (Yes). C u s t o m W o r d s ? The Custom Words ? prompt appears. 0 = N o , 1 = Y e s † 4. Press 0 (No).

  • Page 97: Adding Custom Words/Numbers (Not Annunciated By The 4285/4286 Vip Module)

    Section 19 - Alpha Descriptor Programming 9. Press 6 to accept the selected word. Z N 0 1 B A C K NOTE: If these are the only words/numbers you are using for the D O O R descriptor, press 8 instead of 6 to save them in memory. Ç...
  • Page 98 VISTA-15/VISTA-15CN Installation and Setup Guide ALPHA VOCABULARY LIST (For Entering Zone Descriptors) (Word Space) • 062 DRIVEWAY • 113 LIVING • 167 SERVICE • 225 ZONE • 064 DUCT • 114 LOADING • 168 SHED • 226 LOCK SHOCK • 227 •...

  • Page 99: Section 20. Remote Programming And Control (Downloading)

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Remote Programming The VISTA-15/VISTA-15CN can be remotely programmed from an IBM-compatible personal computer (PC), the ADEMCO CIA (Communication Interface Adapter) or compatible modem, and ADEMCO's COMPASS software (as specified below).

  • Page 100: Initial Download

    Hayes Smartmodem 1200 External Modem Hayes Smartmodem 1200B Internal Modem (Rev. 1.2 or higher) Hayes external Optima 24 Plus FAX96 Modem Practical Peripherals PM14400FXSA • COMPASS® Downloader Software (at revision level supporting the VISTA-15/VISTA- 15CN) • Appropriate interconnecting cables Initial Download For initial downloading, enter Installer code + [#] + [5].

  • Page 101: Section 21. System Communication

    S E C T I O N System Communication • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Panel Communication with Central Station Report Code Formats...
  • Page 102 VISTA-15/VISTA-15CN Installation and Setup Guide The following table describes each format in greater detail. FORMAT TYPE DESCRIPTION 3+1 and 4+1 Comprises a 3- (or 4-) digit subscriber number and a single-digit report Standard Formats code (e.g., Alarm, Trouble, Restore, Open, Close, etc).
  • Page 103 Section 21 - System Communication ADEMCO Contact ID Reporting takes the following format: CCCC Q EEE ZZZ where: CCCC = Customer (subscriber) ID Q = Event qualifier, where: E = new event, R = restore EEE = Event code (3 hexadecimal digits) NOTE: For a complete list of event codes, refer to the Central Station office receiver manual.
  • Page 104 VISTA-15/VISTA-15CN Installation and Setup Guide 21–4 www.PDF-Zoo.com...

  • Page 105: Section 22. System Operation

    S E C T I O N System Operation • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Security Codes Exit Error Alarm Displays...

  • Page 106: Keypad Functions

    VISTA-15/VISTA-15CN Installation and Setup Guide • If a Secondary User code is inadvertently repeated for different users, the lower user number takes priority. • Opening and Closing reports are sent for the Installer code as No. 01, with the appropriate subscriber number.
  • Page 107 AWAY MAXIMUM † The VISTA-15/VISTA-15CN contains an Exit Delay Reset feature that allows the user to exit (fault), close the door (restore the fault), then re-enter (fault again) the premises within the exit delay time period. Upon re- entering, a new exit delay time period is begun with the keypad annunciating three rapid beeps. This feature only resets the exit delay one time for each arming session.
  • Page 108 VISTA-15/VISTA-15CN Installation and Setup Guide Relay/Powerline Carrier Device Activation If relay outputs (via a 4204 or 4229) or Powerline Carrier devices are used, two keypad entries available to the user are included. They can manually activate or deactivate the device(s) for starting or stopping some action, such as turning lights on or off, etc.
  • Page 109 Section 22 - System Operation NOTE: It is not possible to arm the system as long as one of the above conditions exist (unless these zone(s) are bypassed). If the system is in the armed mode when the high resistance condition occurs, this display does not appear, but does appear as soon as the system is disarmed.

  • Page 110: Setting The Real-Time Clock

    VISTA-15/VISTA-15CN Installation and Setup Guide Setting the Real-Time Clock General Information This system provides a real-time clock that must be set in order for the system's event log to keep track of events by time and date. • Use a 6139 Alpha Keypad to set the real-time clock, or set the clock via the downloader software.

  • Page 111: Section 23. Testing The System

    S E C T I O N Testing the System • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Test Procedure •...
  • Page 112 VISTA-15/VISTA-15CN Installation and Setup Guide Press [Installer code] + [#] + [3] on the keypad. This initiates a procedure to verify that all transmitters have been properly programmed. NOTE:If the communicator is in the process of sending a report to the Central Station, the system will not go into the Sniffer mode.

  • Page 113: Section 24. Troubleshooting Guide

    REMEDY Transmitter signal not Check or change transmitter's battery. 1a. Transmitter or 5881/5882 not properly received at 5881/5882. Check VISTA-15/VISTA-15CN's AC powered. power. 1b. If transmitter is 5827/5827BD: House 1b. Check code switches inside transmitter. Must match with RF House Code...
  • Page 114 2a. Remove from Test mode. message not being received. 2b. Telephone connection not secure. 2b. Check all connections. 2c. Digital communicator malfunctioning. 2c. Check with a different VISTA-15/VISTA- 15CN. 2d. Program prefix or access code into the 2d. Telephone number in program needs VISTA-15/VISTA-15CN.

  • Page 115: Contacting Technical Support

    • Note the proper model number of this product, and the version level (if known) along with any documentation that came with the product. • Note your ADEMCO customer number and/or company name. Having this information handy makes it easier for us to serve you quickly and effectively.
  • Page 116 VISTA-15/VISTA-15CN Installation and Setup Guide NOTES 24–4 www.PDF-Zoo.com...

  • Page 117: Section 25. Specifications & Accessories

    12-1/2” W x 14-1/2” H x 3” D (318mm x 368mm x 76mm) 1. Physical: Powerline Carrier device Interface AC Transformer 2. Electrical: VOLTAGE INPUT: 16.5VAC from plug-in 25VA transformer, ADEMCO No. 1321 (in USA) 12VDC, 4AH 17.2AH (Sealed Lead Acid). Refer to Section 12: RECHARGEABLE Final Power-Up to calculate the actual battery size needed.
  • Page 118 VISTA-15/VISTA-15CN Installation and Setup Guide 6128 REMOTE KEYPAD 1. Physical: 5-3/4” W x 4-3/4” H x 1” D (146mm x 121mm x 25mm) 2. Electrical: Voltage Input: 12VDC; Current Drain: 30mA 3. Interface Wiring: To control panel's keypad connection points.

  • Page 119: Accessories (Compatible Devices)

    16.5VAC, 25VA Plug-In Transformer No. 4300 Powerline Carrier device Interface AC Transformer Sounders ADEMCO AB-12M 10'' Motor bell & box. UL Grade A. 100mA current draw. ADEMCO 1011BE12M 10'' Motor bell & box. UL Listed. 100mA current draw. ADEMCO 702 Self-contained 6-12 volt siren (driver built-in) and weatherproof for outdoor use.
  • Page 120 VISTA-15/VISTA-15CN Installation and Setup Guide 40-watt, 8-ohm, indoor/outdoor speaker. ADEMCO 713 System Sensor Indoor piezo sounder (beige or red), rated at 90 dB @ 10 feet. PA400B (beige) PA400R (red) Compatible 2-Wire Smoke Detectors System Sensor 2300T Photoelectric w/heat sensor, direct wire...

  • Page 121: Transmitter Input Loop Identification

    A P P E N D I X 5800 RF System Wireless Transmitters • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Transmitter Input Loop Identification 5800 Series Transmitter Input Loop Identification All of the transmitters illustrated below have one or more unique factory-assigned input...
  • Page 122 VISTA-15/VISTA-15CN Installation and Setup Guide A–2 www.PDF-Zoo.com...

  • Page 123: Appendix B Regulatory Agency Statements

    A P P E N D I X Regulatory Agency Statements • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • UL NOTICE: This is a “Grade A”...
  • Page 124 425mA 14AH ‡ Note: Use two batteries, connected in parallel. Obtain an ADEMCO No. 4100EOLR Resistor Kit. A dual battery harness is provided with the kit. The kit also contains EOL resistors with spade lug/heat shrink tubing construction which has been approved by UL and CSFM for fire zone usage. Both batteries will fit inside the panel's cabinet.

  • Page 125: Appendix C Warnings And Limitations

    A P P E N D I X Warnings and Limitations • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • WARNING THE LIMITATIONS OF THIS ALARM SYSTEM While this System is an advanced design security system, it does not offer guaranteed protection against burglary, fire or...
  • Page 126 24 months from the date stamp control on the product or, for products not having an Ademco date stamp, for 12 months from date of original purchase unless the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply.

  • Page 127: Index

    ADEMCO Contact ID..........1–4 Clock Mode............22–6 ADEMCO Express..........1–4 Clock Setting............15–9 ADEMCO Low Speed........... 1–4 Communication Formats Supported .....1–4 ADEMCO Model 610–7 EOL........ 4–2 COMPASS............13–1 Alarm Bell Timeout ..........15–3 COMPASS® Downloader ........20–2 Alarm by Night ............ 14–2 COMPASS® Software ........20–1 Alarm Output ............
  • Page 128 VISTA-15/VISTA-15CN Installation and Setup Guide Cross Zoning ............18–2 Installing 5800 Series Transmitters ......6–7 CSFM Requirements ..........B–2 Installing the Backup Battery ........2–6 Current Draw Worksheet ........12–2 Installing the Lock ..........2–1 Custom Alpha Editing ........15–11 Interior Follower ..........14–2 Custom Words..........19–3, 4 Interior w/ Delay..........14–3...
  • Page 129 Index Programming ..........1–4, 13–1 System Setup .............13–3 Programming Hardwired Zones......4–4 System Status Codes .........15–7 Programming Modes .......... 13–1 System Status Report Codes ......15–8 Programming Relay Outputs ........ 7–4 Tamper Protection ..........6–4 Programming Wired Expansion Zones....5–3 Technical Support..........24–3 Pulse Dialing............
  • Page 130 VISTA-15/VISTA-15CN Installation and Setup Guide Index-4 www.PDF-Zoo.com...
  • Page 131 OPERATION IS SUBJECT TO THE FOLLOWING TWO INCLUDED IN AND/OR BE DONE WITH A 6139 CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL SOUNDING FOR FIRE (e.g. USE ADEMCO No. 702 BATTERYMARCH PARK, QUINCY, MA 02269). AUX CURRENT 4285/4286 VOICE MODULE (160mA) CONNECTED TO KEYPAD INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY SIREN, OR 12V BELL).
  • Page 132 165 Eileen Way, Syosset, New York 11791 Copyright © 2000 PITTWAY CORPORATION ¬.9El K3892V1 4/00 www.PDF-Zoo.com...

This manual is also suitable for:

Vista-15cn

Table of Contents
