Traffic Statistics: This field displays the router's traffic statistics.
System Up Time: This field displays the time of the router running from the time it is
powered on or is

4.2 Quick Setup

Please refer to Chapter 3"Quick Installation Guide."

4.3 Network

Choose menu "Network", you can see the submenus under the Network menu: LAN,
WAN and MAC Clone.
Click any of them, and you will be able to configure the corresponding function. The
detailed explanations for each submenu are provided below.

4.3.1 LAN

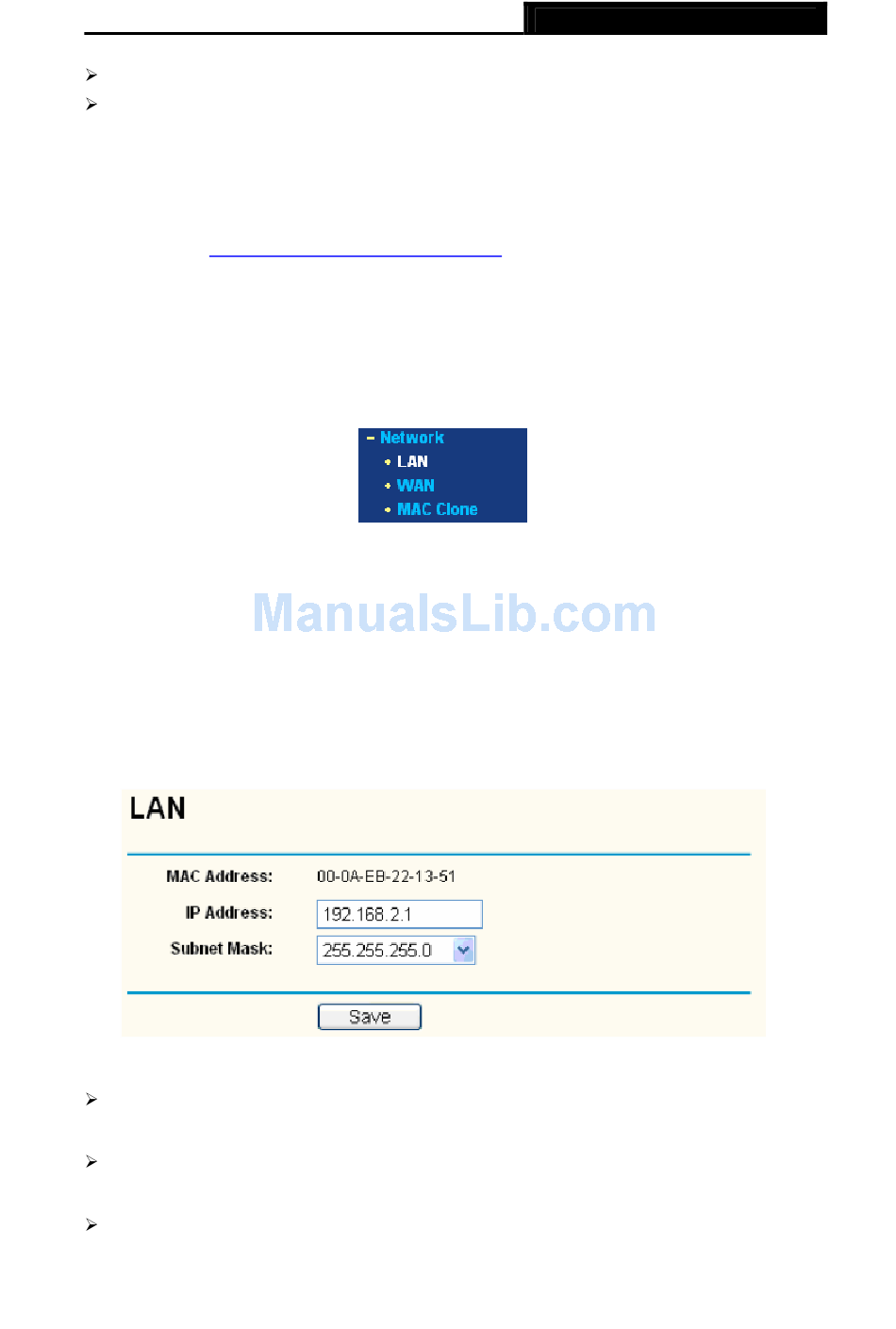

Choose menu "Network→LAN", you can configure the IP parameters of the LAN on the
screen below.
MAC Address - This field displays the physical address of the LAN. The value
can't be changed.
IP Address - Enter the IP address for the LAN of the Router, the formal is in
dotted-decimal notation (the factory default value is 192.168.2.1).
Subnet Mask - Enter the subnet mask for the LAN of the Router, this address code
determines the size of the network. Normally use 255.255.255.0 as the subnet mask.
SMCBR14
reset.
Figure 4-2
Figure 4-3
Cable/DSL Router User Guide
15
