"Allow the packets not specified by any filtering rules to pass through the
router".

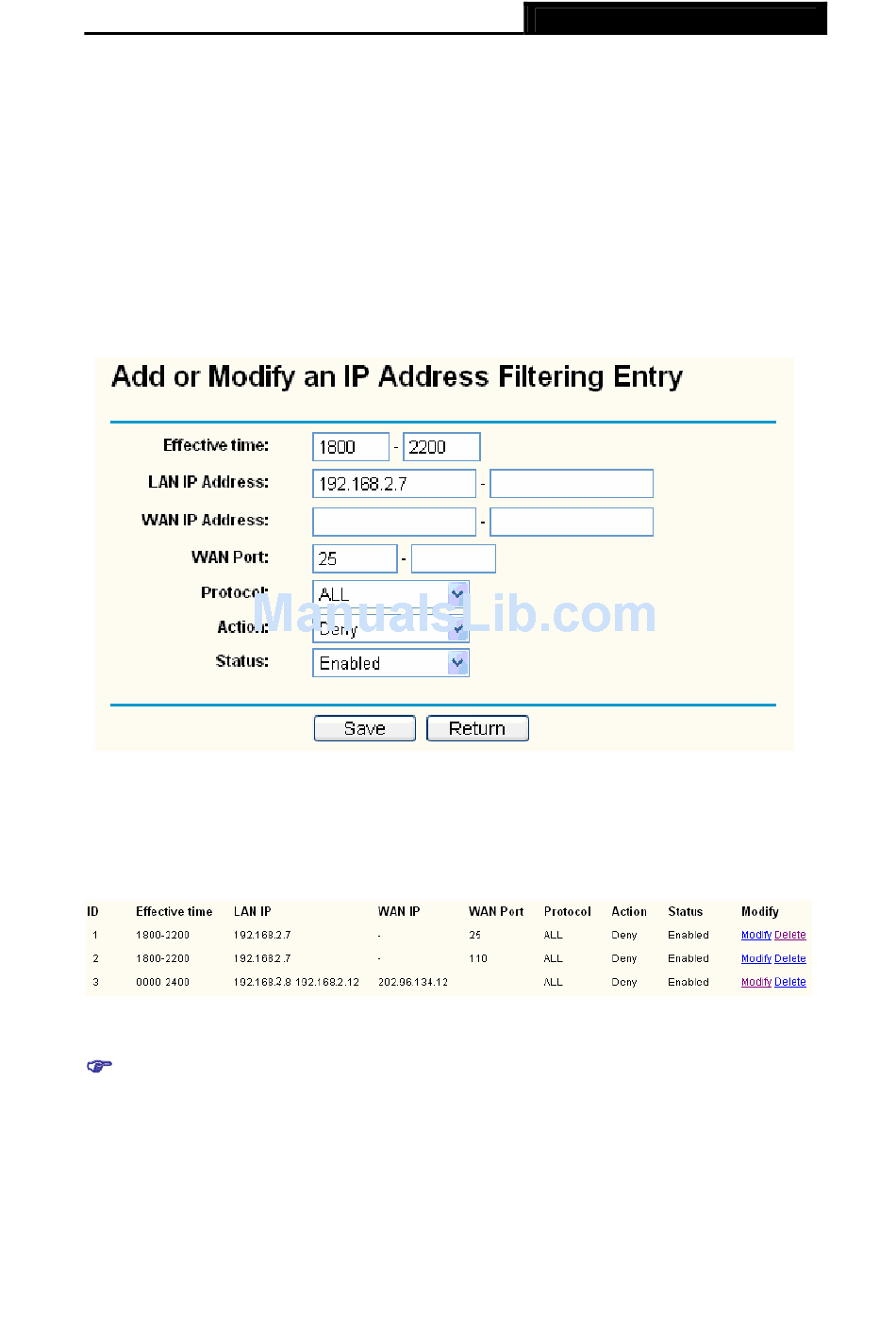

Step 2: Click Add New.../Modify shown in Figure 4-26, you will see a new screen
shown in Figure 4-27.
Step 3: Enter the "Effective time" that the rule will take effect as shown in Figure 4-27.
Step 4: Enter the "LAN IP Address", "WAN IP Address" and "WAN Port" in the
corresponding field as shown in Figure 4-27.
Step 5: Select the "Protocol", "Action" and "Status" for the rule as shown in the next
screen.
Step 6: Click the Save button to save this entry.
Step 7: Go to Step 2 to complete the other rules continually.
After you finish the configurations, you will see the rules in the table below:
Note:
Before adding an IP Address Filtering entry, you should enable the Firewall and the IP
Address Filtering function first (shown in Figure 4-25).
Other configurations for the entries as shown in Figure 4-26:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
SMCBR14 Cable/DSL Router User Guide
Figure 4-27
Figure 4-28
