Note:
The router supports three popular ways to connect to Internet. Please select one
compatible with your ISP, if you are given another way that is not listed here, refer to
Network→ WAN for detailed list.

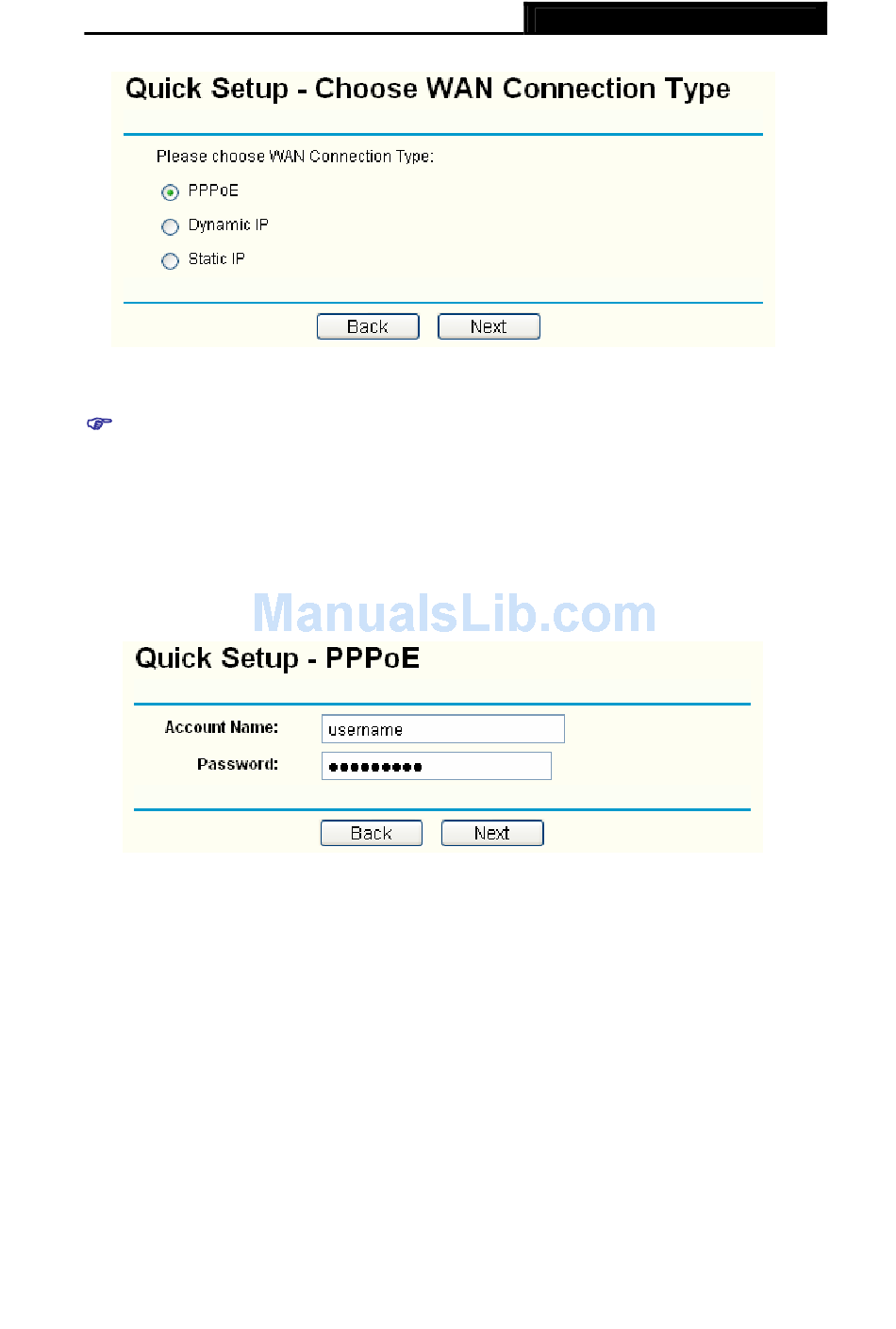

Step 3: If you choose PPPoE, you will see the screen as shown in Figure 3-10, enter
the Username and Password provided by your ISP. These fields are case
sensitive. If you have difficulty with this process, please contact your ISP.
Step 4: If you choose Dynamic IP in Figure 3-9, the router will automatically receive the
IP parameters from your ISP without needing to enter any parameters.
Step 5: If you Choose Static IP, you should enter the detailed IP information in Figure
3-11. Click the Next button
SMCBR14 Cable/DSL Router User Guide
Figure 3-9
Figure 3-10
11
