SMC Networks SMCBR14 WIRED BARRICADE User Manual page 58

Step 3: Bind the MAC and IP address, then click Save button to save the configuration.
To find a specific IP & MAC binding entry:
Step 1: Click Find shown in Figure 4-40, you will see a new screen shown in Figure
4-42.
Step 2: Enter the specific MAC Address or IP Address in the corresponding field.
Step 3: Click Find button, then you will see the entry with the specific MAC address or
IP address.
Step 4: Click Return to return the previous screen.
Note:
You can click "Turn to this page" to edit the entry in the corresponding screen.
Other configurations for the entries as shown in Figure 4-40:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Delete All button to delete all the entries.
Click the Previous button to view the information in the previous screen, click the Next
button to view the information in the next screen.
SMCBR14 Cable/DSL Router User Guide

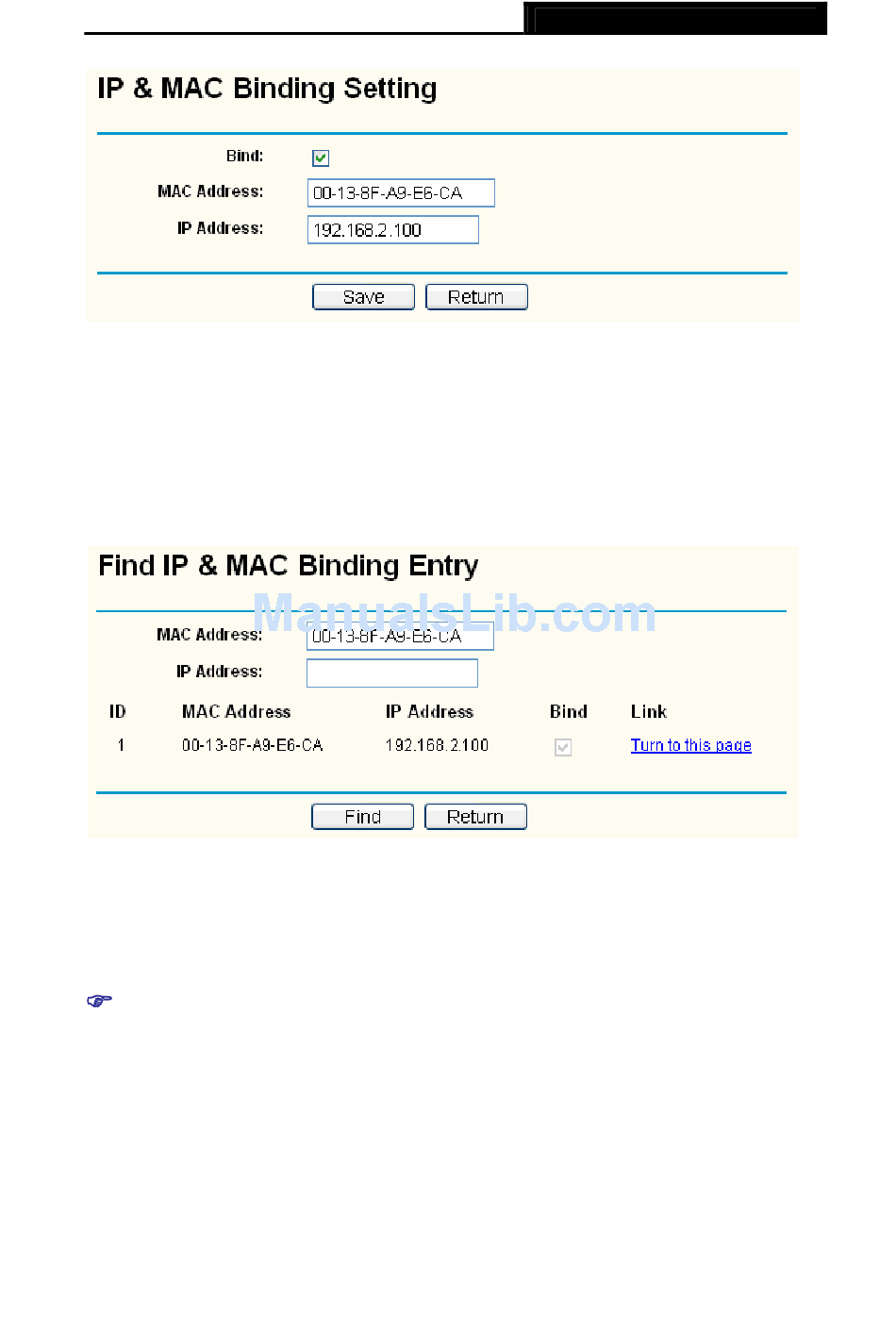

Figure 4-41
Figure 4-42
48
