4.9 IP & MAC Binding
Choose menu "IP & MAC Binding", you can see the submenus under the main menu:
Binding Setting, ARP List.
Click any of them, and you will be able to configure the corresponding function. The
detailed explanations for each submenu are provided below.

4.9.1 Binding Setting

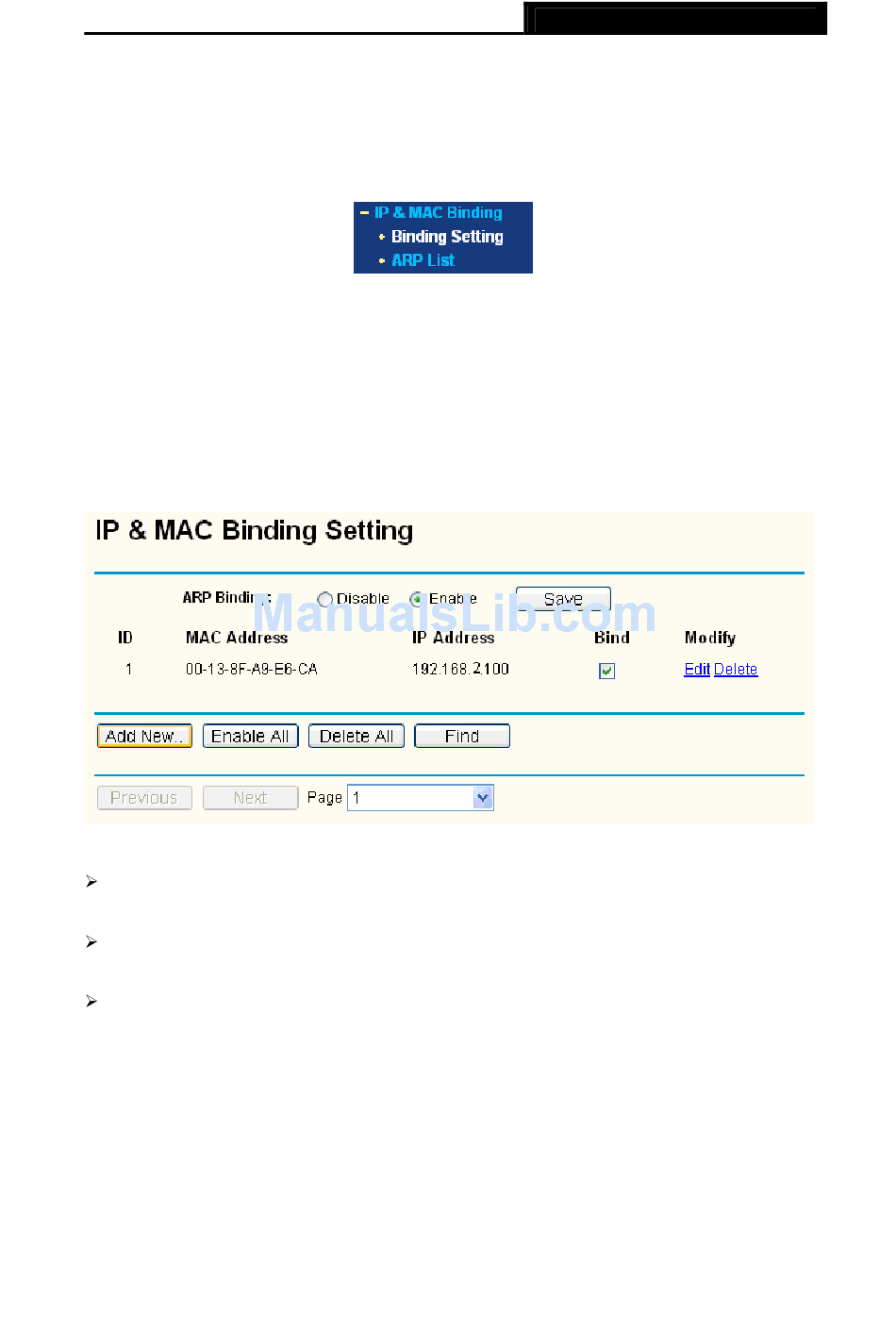

Choose menu "IP & MAC Binding→Binding Setting", you can view and add IP & MAC
binding entries in the next screen (shown in Figure 4-40).
MAC Address - This field displays the MAC address of the controlled computer in
the LAN.
IP Address - This field displays the assigned IP address of the controlled computer
in the LAN.
Bind - Select Whether enable the arp binding or not. Only bind the MAC address
and IP address can the function take effect.
To add/modify an IP & MAC binding entry:
Step 1: Click Add New.../Modify shown in Figure 4-40, you will see a new screen
shown in Figure 4-41.
Step 2: Enter the MAC Address and IP Address in the corresponding field.
SMCBR14 Cable/DSL Router User Guide
Figure 4-39
Figure 4-40
