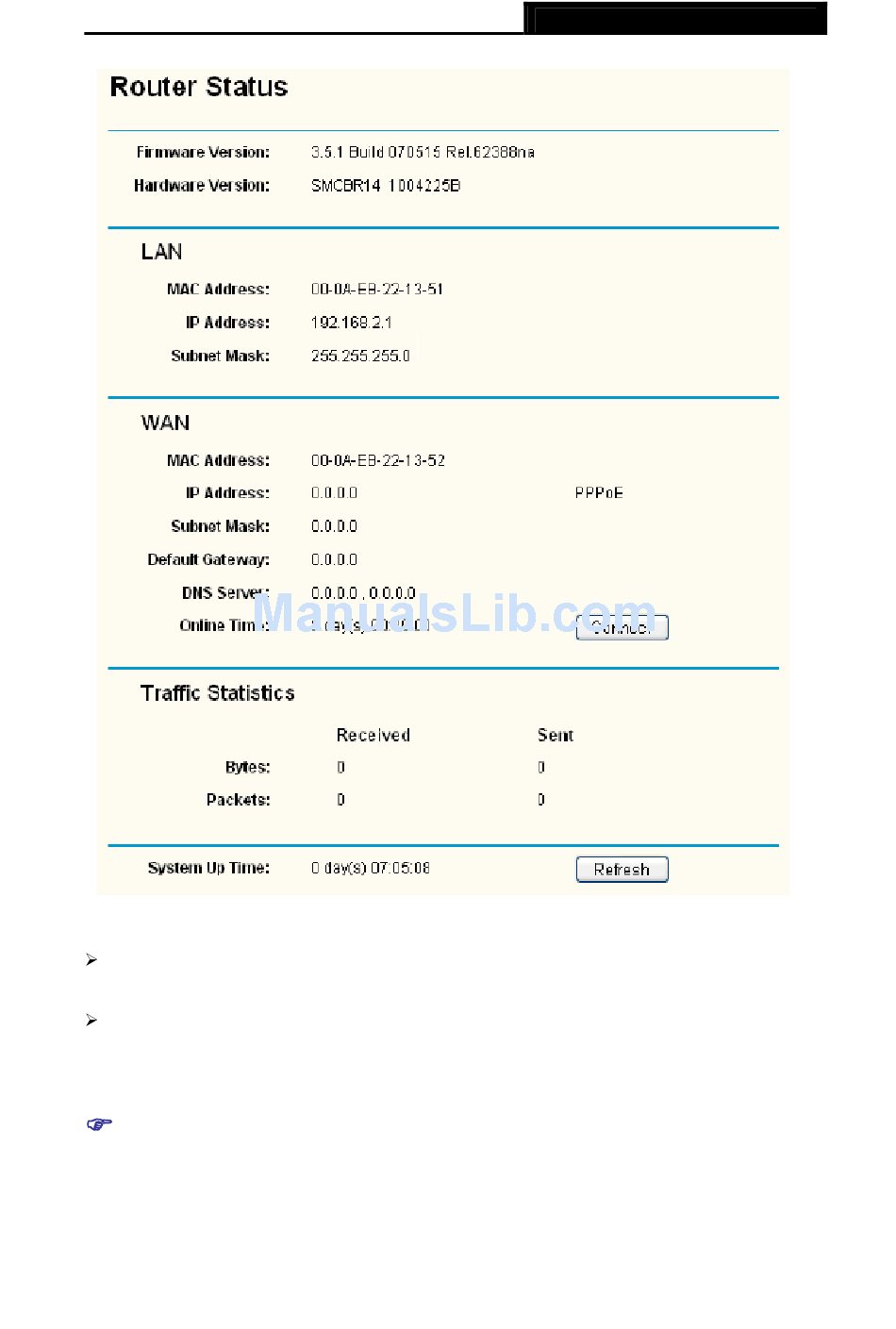

LAN - This field displays the current settings or information for the LAN, including
the "MAC address", "IP address" and "Subnet Mask".
WAN - This field displays the parameters applied to the WAN port of the router,
including "MAC address", "IP address", "Subnet Mask", "Default Gateway" and so
on.
Note:
If PPPoE/L2TP/PPTP is chosen as the WAN connection type, the Disconnect button will
be shown here while you are accessing the Internet. You can also cut the connection by
clicking the button. If you have not connected to the Internet, a Connect button will be
shown, you can then establish the connection by clicking the button.
SMCBR14
Cable/DSL Router User Guide
Figure 4-1
14
