Ip Address Filtering - SMC Networks SMCBR14 WIRED BARRICADE User Manual

Enable Firewall - Enable the general firewall switch or not.
Enable IP Address Filtering - Enable the IP Address Filtering or not. There are two
default filtering rules, please select the rule for your need.
Enable Domain Filtering - Enable the Domain Filtering or not. There are two
default filtering rules, please select the rule for your need.
Enable MAC Address Filtering - Enable MAC Address Filtering or not. There are
two default filtering rules, please select the rule for your need.

4.6.2 IP Address Filtering

Choose menu "Security→IP Address Filtering", you can configure the IP Address
filtering rule in the next screen (shown in Figure 4-26). The IP Address Filtering feature
allows you to control Internet Access by specific users on your LAN based on their IP
addresses.
SMCBR14 Cable/DSL Router User Guide

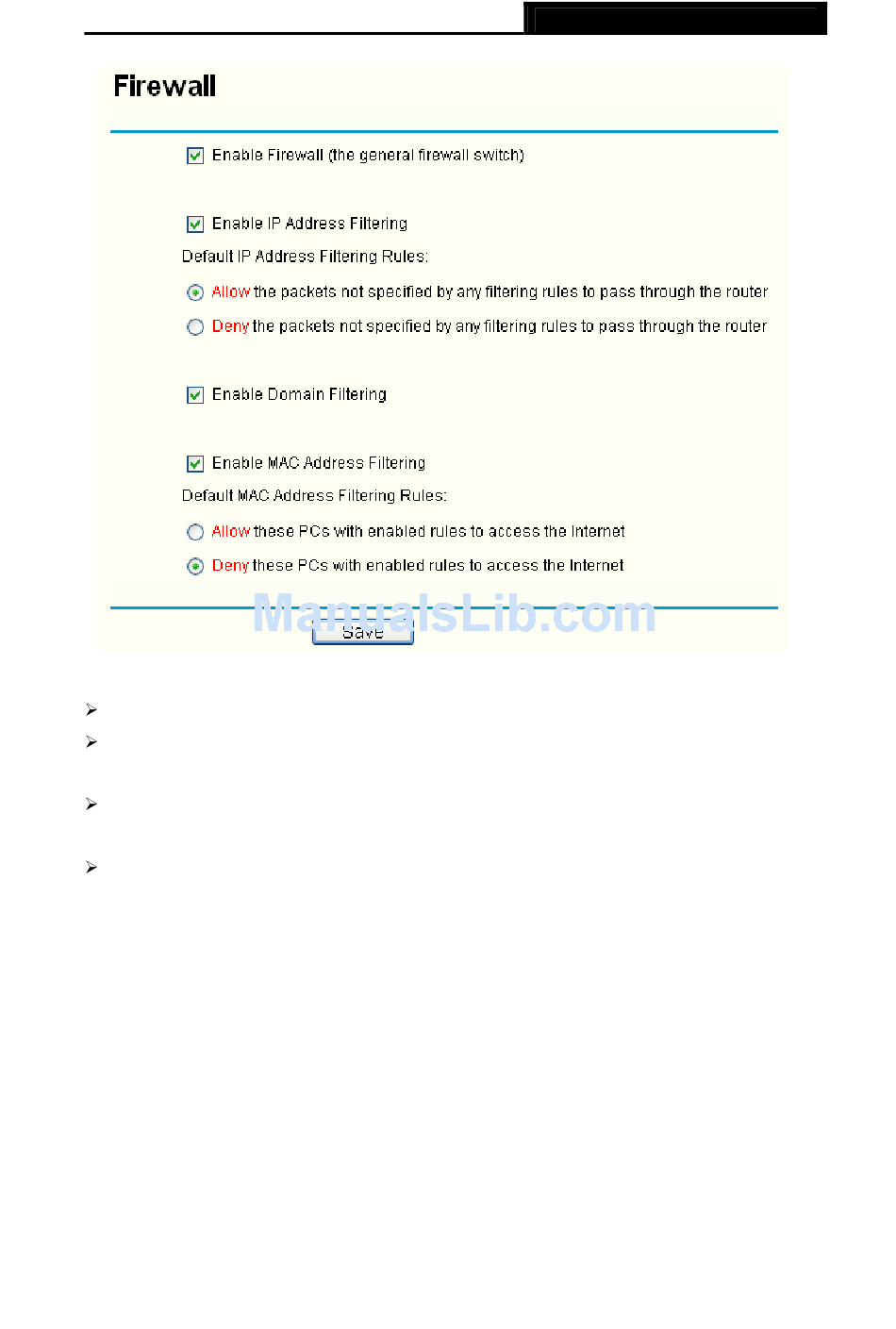

Figure 4-25
36
