MTU Size- The default MTU size is 1480 bytes, which is usually fine. For some ISPs,
you need modify the MTU. This should not be done unless you are sure it is
necessary for your ISP.
Service Name/AC Name - The service name and AC (Access Concentrator) name
should not be configured unless you are sure it is necessary for your ISP.
ISP Specified IP Address - If you know that your ISP does not automatically
transmit your IP address to the router during login, select Use IP Address specified
by ISP and enter the IP in dotted-decimal notation, which your ISP provided.
Detect Online Interval - The default value is 0, you can input the value between 0
and 120. The router will detect Access Concentrator online at every interval between
the time. If the value is 0, it means the Router does not detect.
Primary DNS & Secondary DNS - If you know that your ISP does not automatically
transmit DNS addresses to the router during login, select Use the following DNS
servers and enter the address in dotted-decimal notation of your ISP's primary DNS
server. If a secondary DNS server address is available, enter it as well.
4. BigPond Cable
If you are provided BigPond Cable for ISP connection, your ISP will provides user name,
password, Auth Name and Auth Domain for you. You should select "BigPond Cable"
(shown in Figure 4-8).and enter these information correctly.
SMCBR14 Cable/DSL Router User Guide

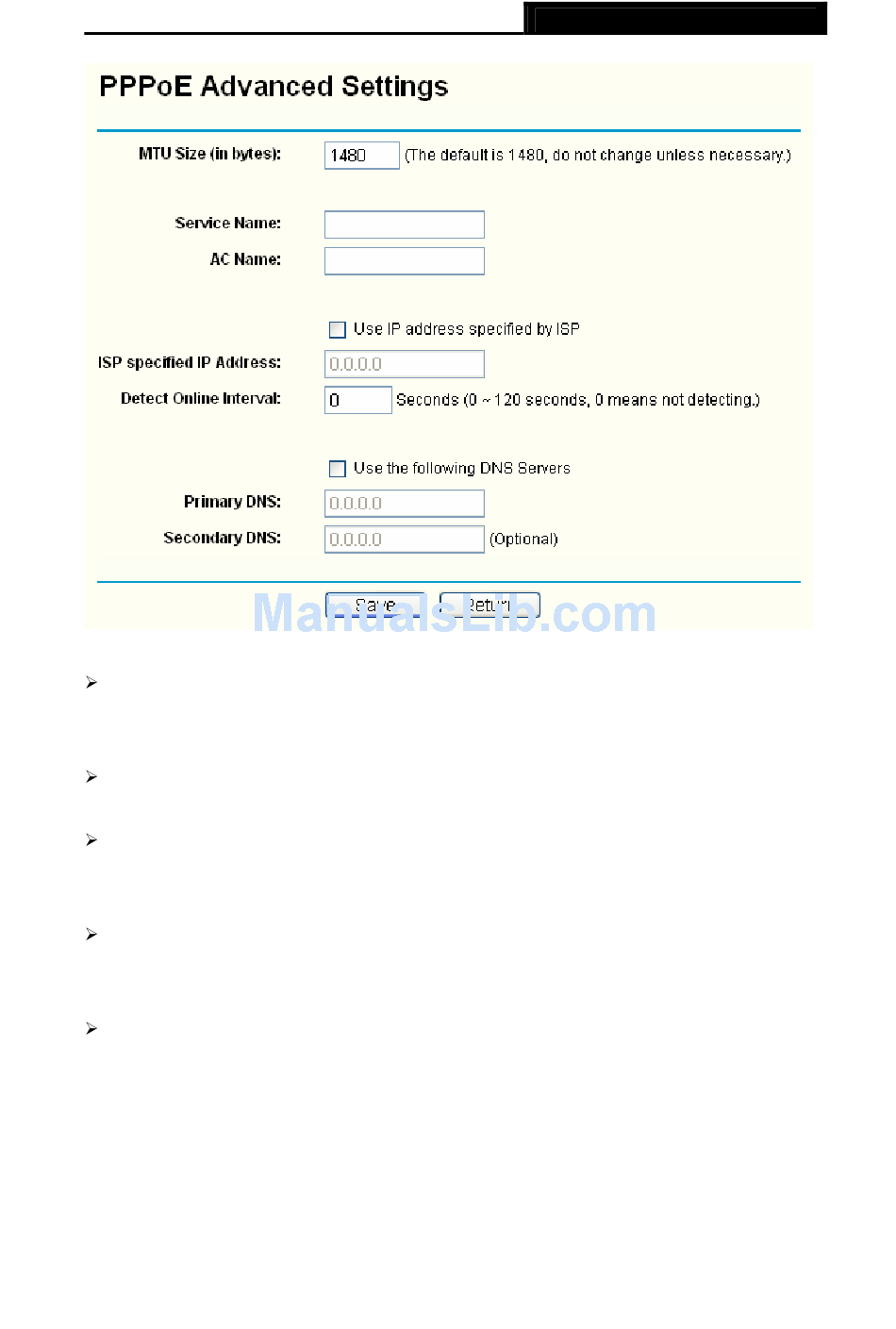

Figure 4-7
