the background.
2)
If you are a Cable user, please configure the router following the above steps.
2.
How do I configure the router to access Internet by Ethernet users?
Step 1: Login to the router, click the menu Network→WAN on the left of your browser,
On the WAN screen, select "Dynamic IP" for "WAN Connection Type", and
finish it by clicking Save.
Step 2: Some ISPs require that you register the MAC address of your adapter, which is
connected to your cable or DSL modem during installation. If your ISP requires

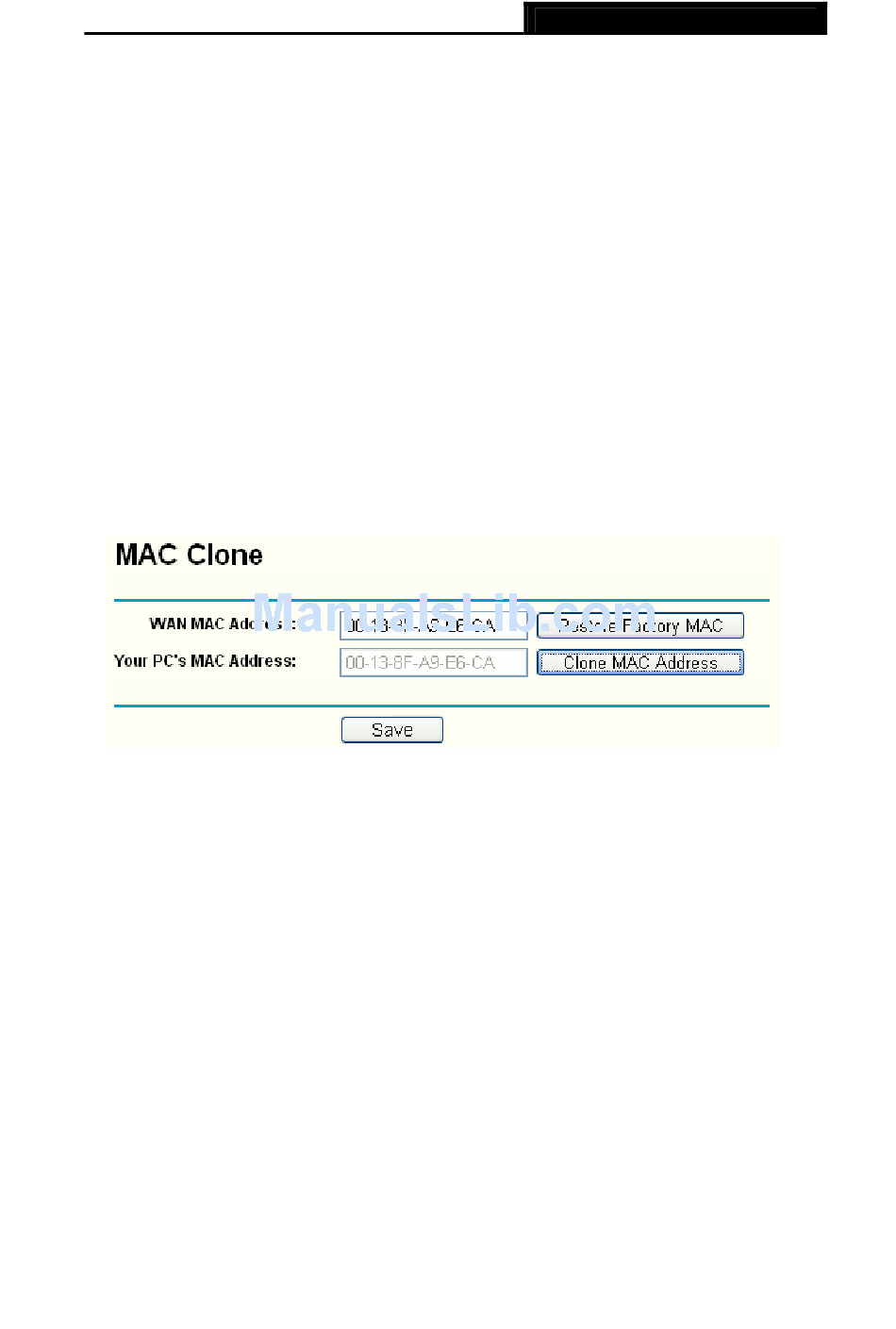

MAC register, login to the router and click the menu Network→MAC Clone. On
the MAC Clone screen, if your PC's MAC address is a proper MAC address,
click the "Clone MAC Address" button and your PC's MAC address will be filled
in the "WAN MAC Address" field; Or else, enter the specific MAC address into
the "WAN MAC Address" field manually. Then click the Save button. It will take
effect after rebooting.
3.
I want to use Netmeeting, what do I need to do?
If you start Netmeeting as a sponsor, you don't need to do anything with the router.
If you start as a responsor, you need configure Virtual Server or DMZ Host as follows:
Method one: Use Virtual Server
Login to the router, click the menu Forwarding→Virtual Servers. On the Virtual Server
screen, add a Virtual Server rule as shown in the next screen: configure 1720 as the
"Service Port" and enter your IP address (assuming 192.168.2.102 for an example), then
click select the status Enabled and click Save.
SMCBR14
Cable/DSL Router User Guide
Figure B-3
64
